HIKROBOT Frame Grabbers

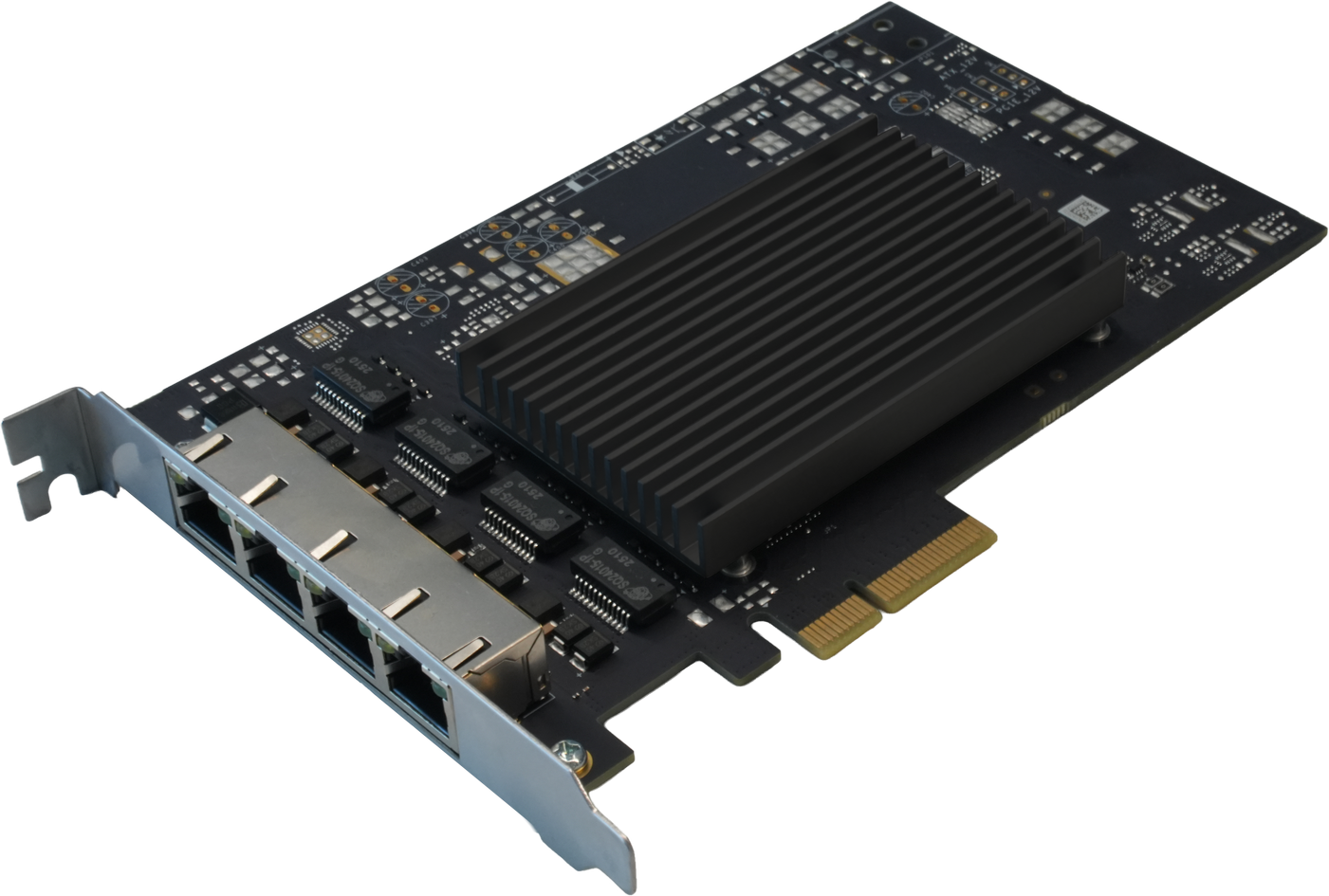

MV-GE4004

We are a global provider of machine vision, mobile robots, and articulated robot products and solutions

Consulting quotation
MV-GE4004

Product introduction

Functional characteristics

  • Supports IEEE 802.3 protocol

  • Comply with PCI-E gen2 × 4 Standard

  • Has up to 4 independent bandwidth 2.5G network ports

  • Supports adaptive rates of 10/100/1000/2500Mbps § Supports 9KB jumbo frames

  • Supports 9KB jumbo frames

  • Full high-profile bars, supports 3U, 4U chassis



Ordering

MV-GE4004


Dimensions


* Data involved in Model products may occur Differences due to environmental factors. The company will not bear the consequences.

Ordering Model

MV-GE4004

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Overall size

Detailed parameters

Ordering Model MV-GE4004
Model
Model MV-GE4004
Name Four-port 2.5G Network Card
Host Interface
Bus Interface PCI-E gen2 × 4
Bus Interface Performance 2000MB/s(peak transmission bandwidth)
Camera Interface
Standard IEEE 802.3
Connector 4 × RJ45
Supported Camera Type Gigabit Industrial Cameras, 2.5G Industrial Cameras
Supported Camera Quantity Up to 4
Camera Interface Rate 10/100/1000/2500 Mbps
Flow Channel 4
Electrical
Typical Power Consumption 6.3 W
Mechanical
Dimensions 181 mm × 126.3 mm × 21.6 mm
Weight About 190 g
Temperature Operating Temperature0 ~ 55°C, Storage Temperature-20 ~ 70°C
Humidity 10% ~ 95%RH No condensation
Cooling method Natural cooling, fanless heat sink
General Specifications
Operating System Windows 7/10/11, Linux supports 64-bit Ubuntu 18.04 ~ 24.04
Certification CE,RoHS,KC

Data download

Product manual· SDK ·Development documentation
