Name: HIKROBOT Full Range of Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CT004G-200GM01-BASE
Availability: InStock

Product introduction

functional properties

Support automatic or manual adjustment of Gain, Exposure Time, etc., manual adjustment of LUT, Gamma correction, etc.
Support custom ROI, horizontal Mirror and vertical Mirror
Using Gigabit Ethernet Interface, the maximum transmission distance can reach 100m without relaying
Compatible with GigE Vision V2.0 protocol and GenlCamStandard, seamlessly connecting to third-party Software Platforms

Ordering Model

MV-CA013-A0GC

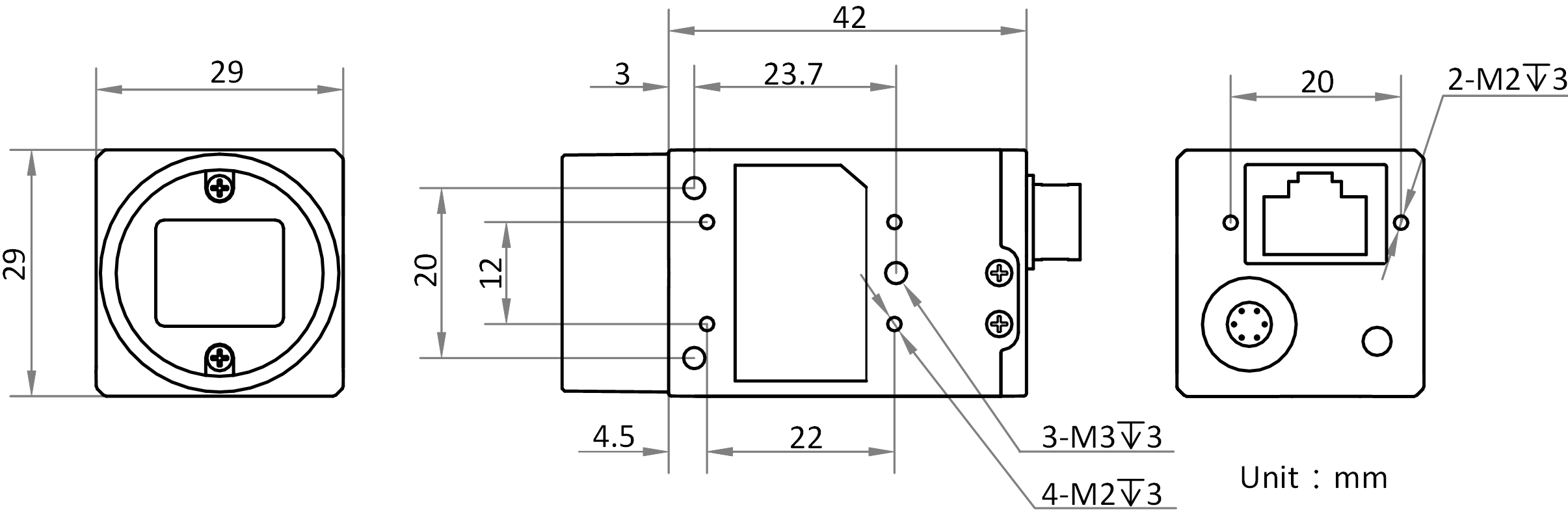

Dimensions

* Data related to the product may be generated due to environmental factors and other factorsdifference, the company will not bear the consequences arising therefrom.

Ordering Model

MV-CA013-A0GC

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

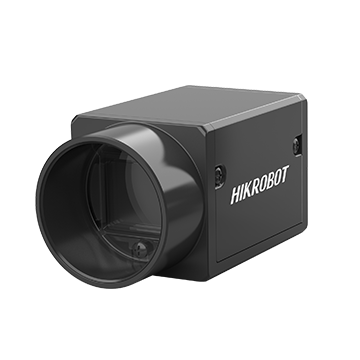

Ordering Model MV-CA013-A0GC

Model

Model	MV-CA013-A0GC
Name	1.3 megapixel screen aperture area array Camera, color

Performance

Sensor Type	CMOS, global shutter
Pixel Size	4.8 μm × 4.8 μm
Optical Format	1/2"
Resolution	1280 × 1024
Max. Frame Rate	92.8 fps @1280 x 1024 Bayer RG 8
Dynamic Range	54 dB
SNR	40.6 dB
Gain	0 dB ~ 16 dB
Exposure Time	9 μs ~ 10 sec
Shutter Mode	Support automatic exposure, manual exposure, and one-click exposure modes
Mono/Color	color
Pixel Format	Mono 8/10/12 Bayer GB 8/10/10Packed/12/12Packed YUV422Packed,YUV422_YUYV_Packed RGB 8,BGR 8
Binning	Supports 1 × 1, 2 × 2, 4 × 4
Downsampling	Supports 1 × 1, 2 × 2, 4 × 4
Mirror	Support horizontal Mirror and vertical Mirror output

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s) and Fast Ethernet(100Mbit/s)
Digital I/O	6-pin P7Connector provides Power Supply and I/O:1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O(Line2)
Power Supply	9 ~ 24 VDC, support for PoEPower Supply
Typical Power Consumption	2.7 W@12 VDC

Mechanical

Lens Mount	C-Mount
Dimensions	29 mm × 29 mm × 42 mm
Weight	about 100 g
IP Rating	IP30(with Lenses and Cables installed correctly)
Temperature	Operating Temperature0°C ~ 50°C, Storage Temperature -30 ° C ~ 70°C
Humidity	20% ~ 95%RH non-condensing

General Specifications

Software	MVS or third party support GigE Vision protocol Software
Operating System	Windows XP/7/10/11 32/64bits,Linux 32/64bits, and MacOS 64bits
Protocol / Standard	GigE Vision V2.0,GenICam
Certification	CE,RoHS,KC
