HIKROBOT Full Range of Industrial Area Scan Cameras

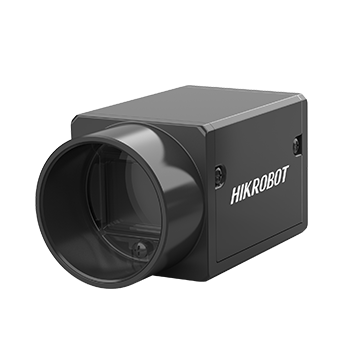

MV-CA016-10GC

1440 × 1080, GigE, Color

Consulting quotation
MV-CA016-10GC

Product introduction

functional properties

  • Support automatic or manual adjustment of Gain, Exposure Time, LUT, Gamma correction, etc.

  • Using Gigabit Ethernet Interface, the maximum transmission distance can reach 100m without relaying

  • 128MB on-board cache, which can cache multiple pictures for burst transmission or image retransmission

  • Compatible with GigE Vision V2.0 protocol and GenlCamStandard, seamless access to third-party Software Platform



Ordering Model

MV-CA016-10GC


Dimensions


* Data related to the product may be generated due to environmental factors and other factorsdifference, the company will not bear the consequences arising therefrom.

Ordering Model

MV-CA016-10GC

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

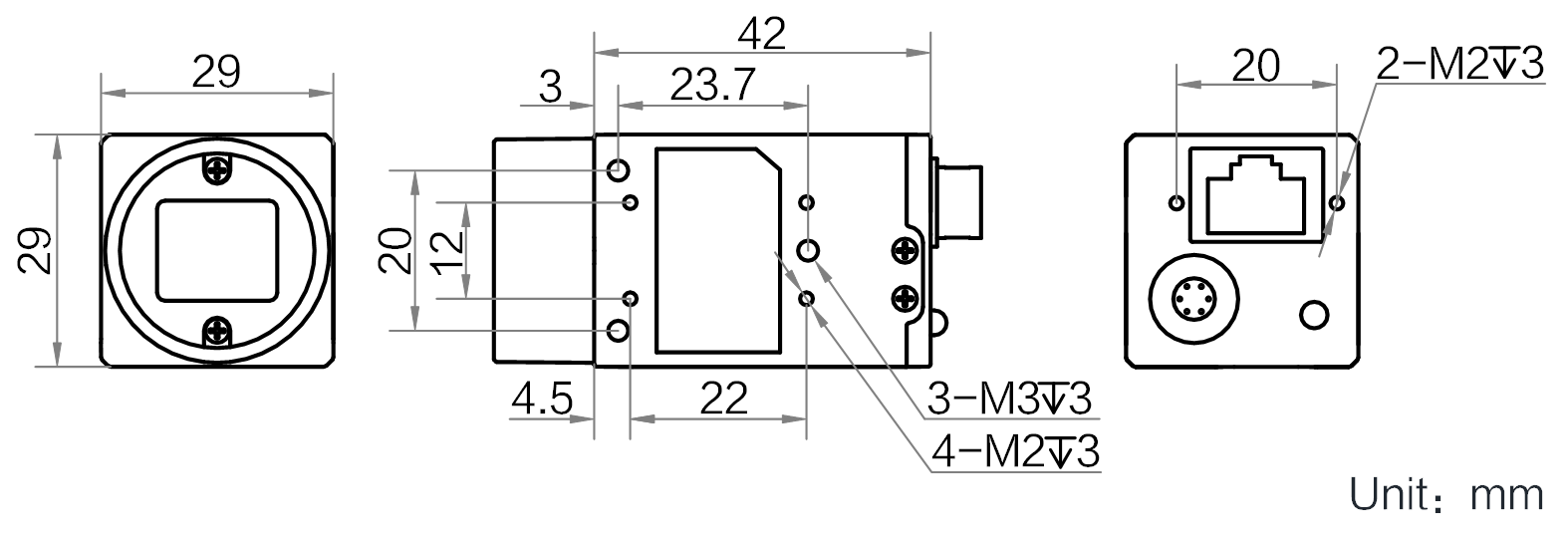

Dimensions

Overall size

Detailed parameters

Ordering Model MV-CA016-10GC
Product Model MV-CA016-10GC
Sensor Model IMX273
Resolution 1440 × 1080
Max. Frame Rate 78.2 fps
Data Interface GigE
Mono/Color Color

Data download

Product manual· SDK ·Development documentation
