HIKROBOT Full Range of Industrial Area Scan Cameras

MV-CI013-GS-NN

1280 × 1024, GigE

Consulting quotation
MV-CI013-GS-NN

Product introduction

Functional characteristics

  • InGaAsSensor supports 0.4 - 1.7um wide spectrum imaging

  • Camera body Mechanical design is compact and suitable for compact space of industrial equipment

  • ISP is rich in functions, supports noise reduction, contrast adjustment and other functions

  • Gigabit Network Interface, the maximum transmission distance can reach 100m without relay

  • Compatible with GigE Vision V2.0 protocol and GenlCamStandard, Seamless connection with third-party Software



Ordering Model

MV-CI013-GS-NN


Dimensions


* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-CI013-GS-NN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

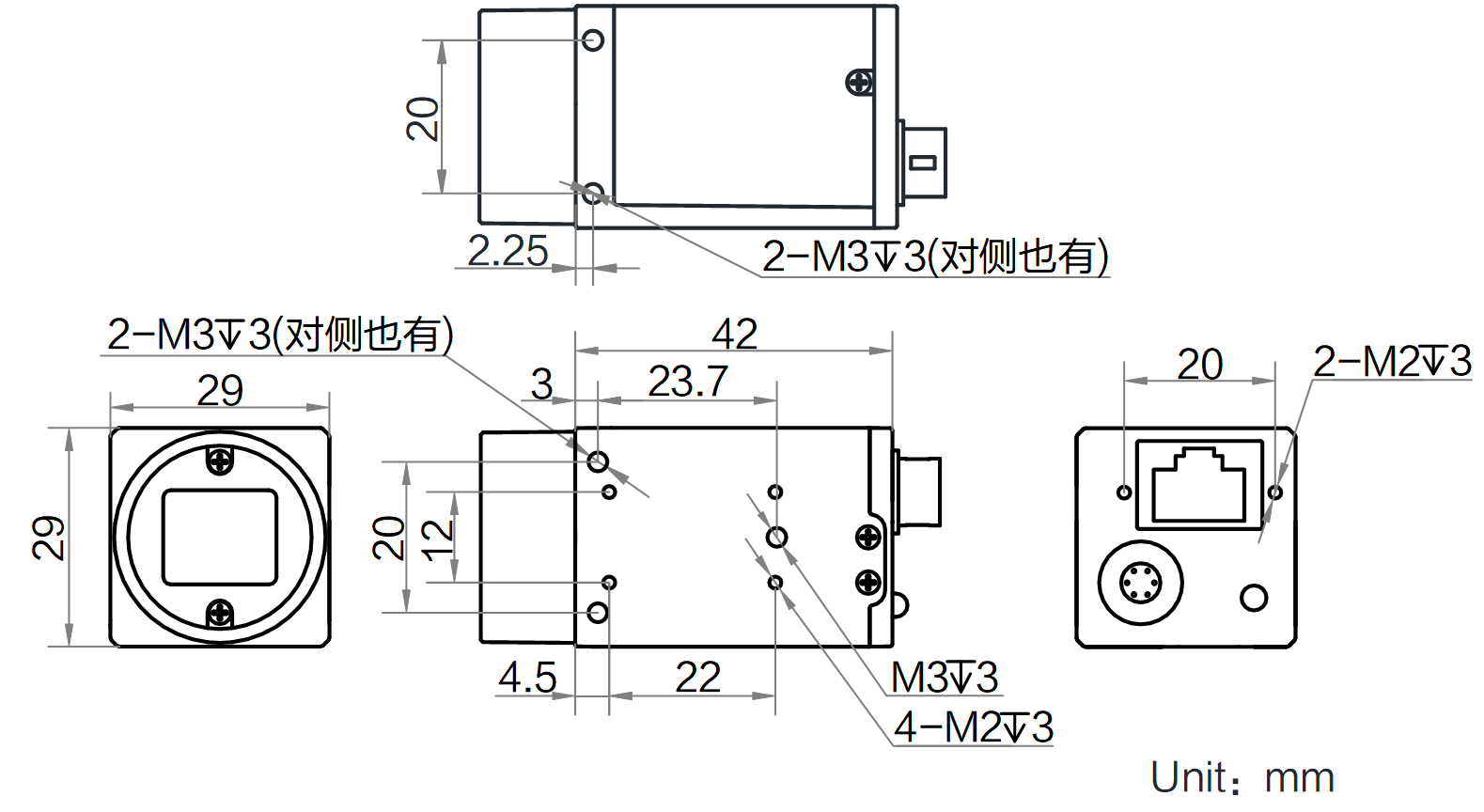

Dimensions

Overall size

Detailed parameters

Ordering Model MV-CI013-GS-NN
Product Model MV-CI013-GS-NN
Sensor Model IMX990
Resolution 1280 × 1024
Max. Frame Rate 91.0 fps
Data Interface GigE

Data download

Product manual· SDK ·Development documentation
