HIKROBOT Full Range of Industrial Area Scan Cameras

MV-CS004-10GC

720 × 540, GigE, Color

Consulting quotation
MV-CS004-10GC

Product introduction

Functional characteristics

  • New hardware Platform optimizes logical resources and significantly reduces Power Consumption

  • Supports automatic or manual adjustments such as Gain, Exposure Time, white balance, LUT, Gamma correction, etc.

  • Camera implants noise reduction, CCM and other functions, excellent image quality

  • Gigabit Network Interface, with a maximum transmission distance of 100m without relay

  • New generation mechanical design, supports four-sided installation

  • Compatible with GigE Vision V2.0 protocol and GenlCamStandard, Seamless connection with third-party Software



Ordering Model

MV-CS004-10GC


Dimensions


* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-CS004-10GC

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

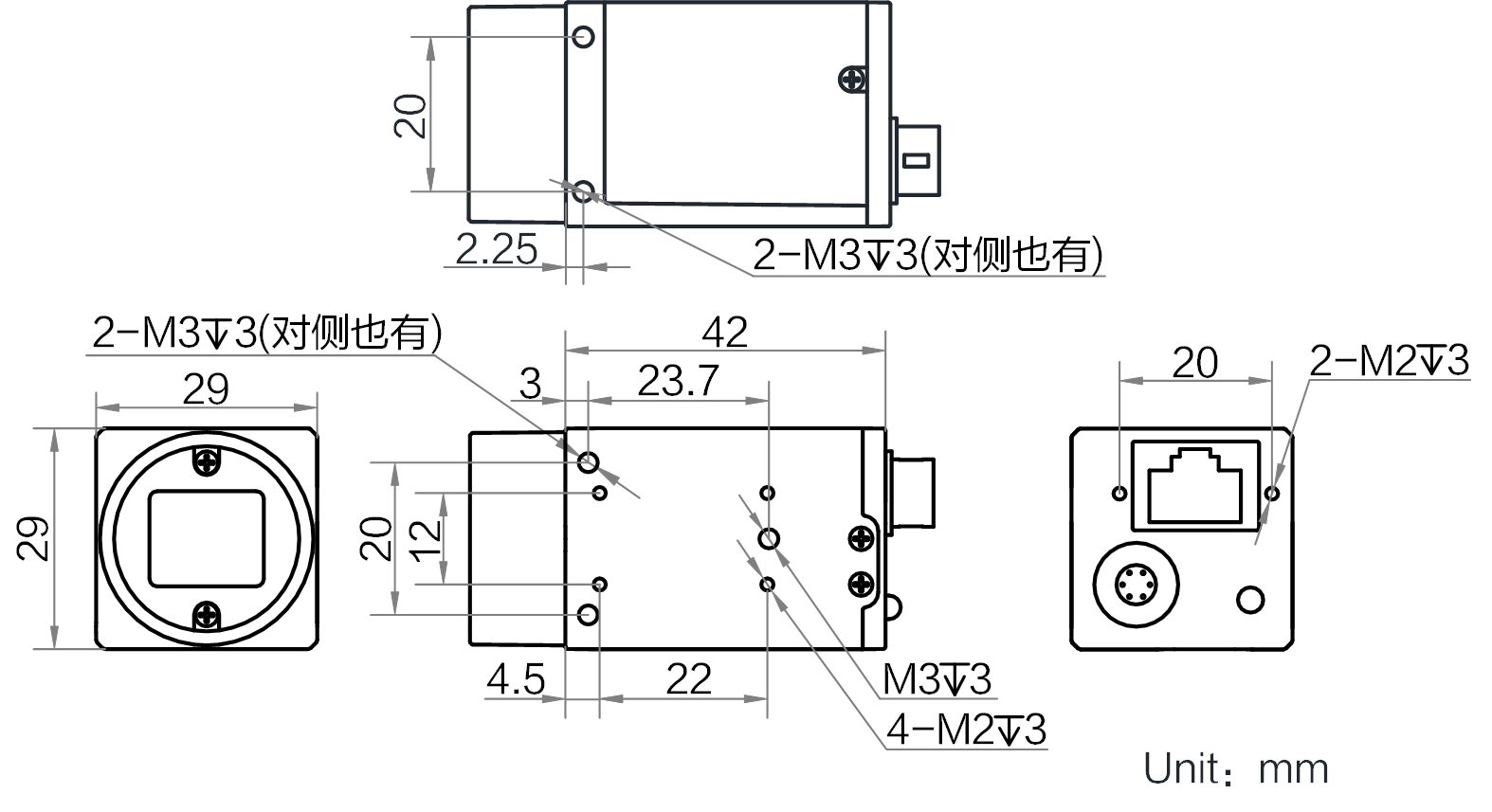

Overall size

Detailed parameters

Ordering Model MV-CS004-10GC
Product Model MV-CS004-10GC
Sensor Model IMX297
Resolution 720 × 540
Max. Frame Rate 125.2 fps
Data Interface GigE
Mono/Color Color

Data download

Product manual· SDK ·Development documentation
