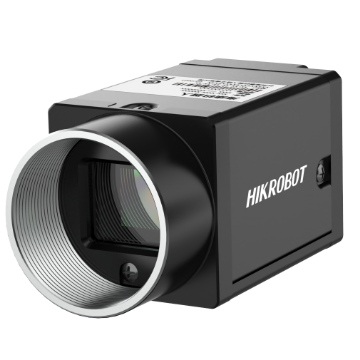

Name: HIKROBOT Full Range of Industrial Area Scan Cameras
Brand: HIKROBOT
SKU: MV-CT004G-200GM01-BASE
Availability: InStock

Product introduction

Functional characteristics

Support automatic or manual adjustments of Gain, Exposure Time, LUT, Gamma correction, etc.
Adopt Gigabit Ethernet Interface, and without relaying, the maximum transmission distance can reach 100m
Compatible with GigE Vision V2.0 protocol and GenICamStandard, seamless access to third-party Software Platforms

Ordering Model

MV-CU013-80GM

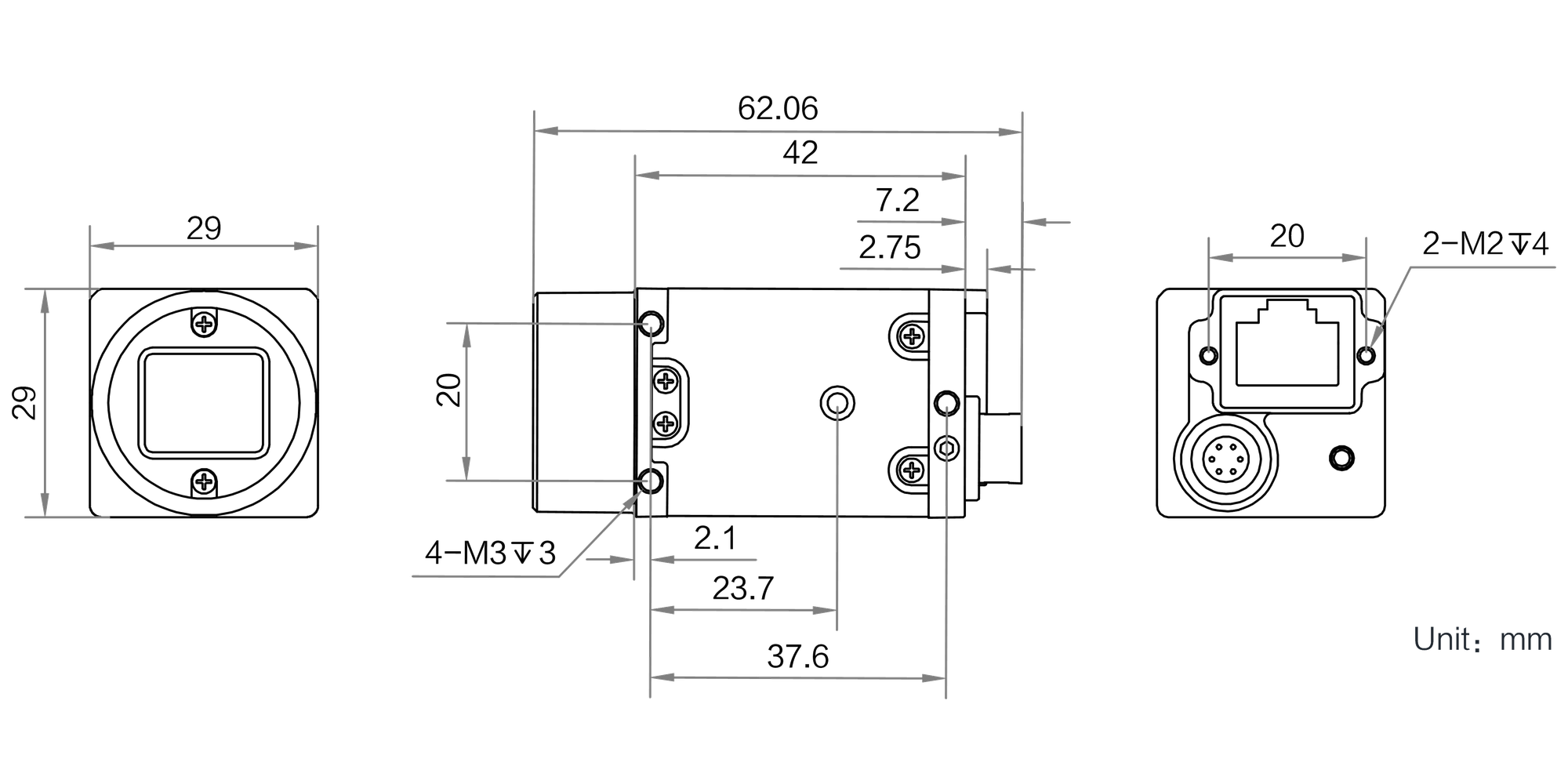

Dimensions

* The data involved in the product may cause 10§ due to environmental and other factors. The company will not bear the consequences., the company will not bear the consequences arising therefrom.

Ordering Model

MV-CU013-80GM

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-CU013-80GM

Model

Model	MV-CU013-80GM
Name	1.3 megapixel mesh area array Camera, SS, black and white

Performance

Sensor Type	CMOS, global shutter
Sensor Model	SS
Pixel Size	4 μm×4 μm
Optical Format	1/2.7"
Resolution	1280 × 1024
Max. Frame Rate	89.9 fps@1280×1024 Mono 8
Dynamic Range	54.5 dB
SNR	39.2 dB
Gain	0 dB ~ 20 dB
Exposure Time	31 μs~1 sec
Shutter Mode	Support automatic exposure, manual exposure, one-click exposure modes
Mono/Color	Black and white
Pixel Format	Mono 8/10/10Packed/12/12Packed
Binning	Support 1 × 1,2 × 2,4 × 4
Downsampling	Support 1 × 1,2 × 2,4 × 4
Mirror	Support horizontal Mirror, Vertical Mirror

Electrical

Data Interface	Gigabit Ethernet (1000Mbit/s) Compatible with Fast Ethernet (100Mbit/s)
Digital I/O	6-pin P7Interface provides Power Supply Source and I/O: 1 optocoupler isolated input (Line0), 1 optocoupler isolated output (Line1), 1 bidirectional configurable non-isolated I/O(Line2)
Power Supply	9 ~ 24 VDC, PoE optional
Typical Power Consumption	1.9 W@12 VDC

Mechanical

Lens Mount	C-Mount
Dimensions	29 mm × 29 mm × 42 mm
Weight	Approximately 100 g
IP Rating	IP30 (When Lenses and Cables are installed correctly)
Temperature	Operating Temperature 0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH No condensation

General Specifications

Software	MVS or third party support GigE Vision protocol Software
Operating System	Windows XP/7/10/11 32/64bits,Linux 32/64bits,MacOS 64bits
Protocol / Standard	GigE Vision V2.0,GenICam
Certification	CE,RoHS,KC
