Name: HIKROBOT Style Series Lighting
Brand: HIKROBOT
SKU: MV-LRSS-H-80-W
Availability: InStock

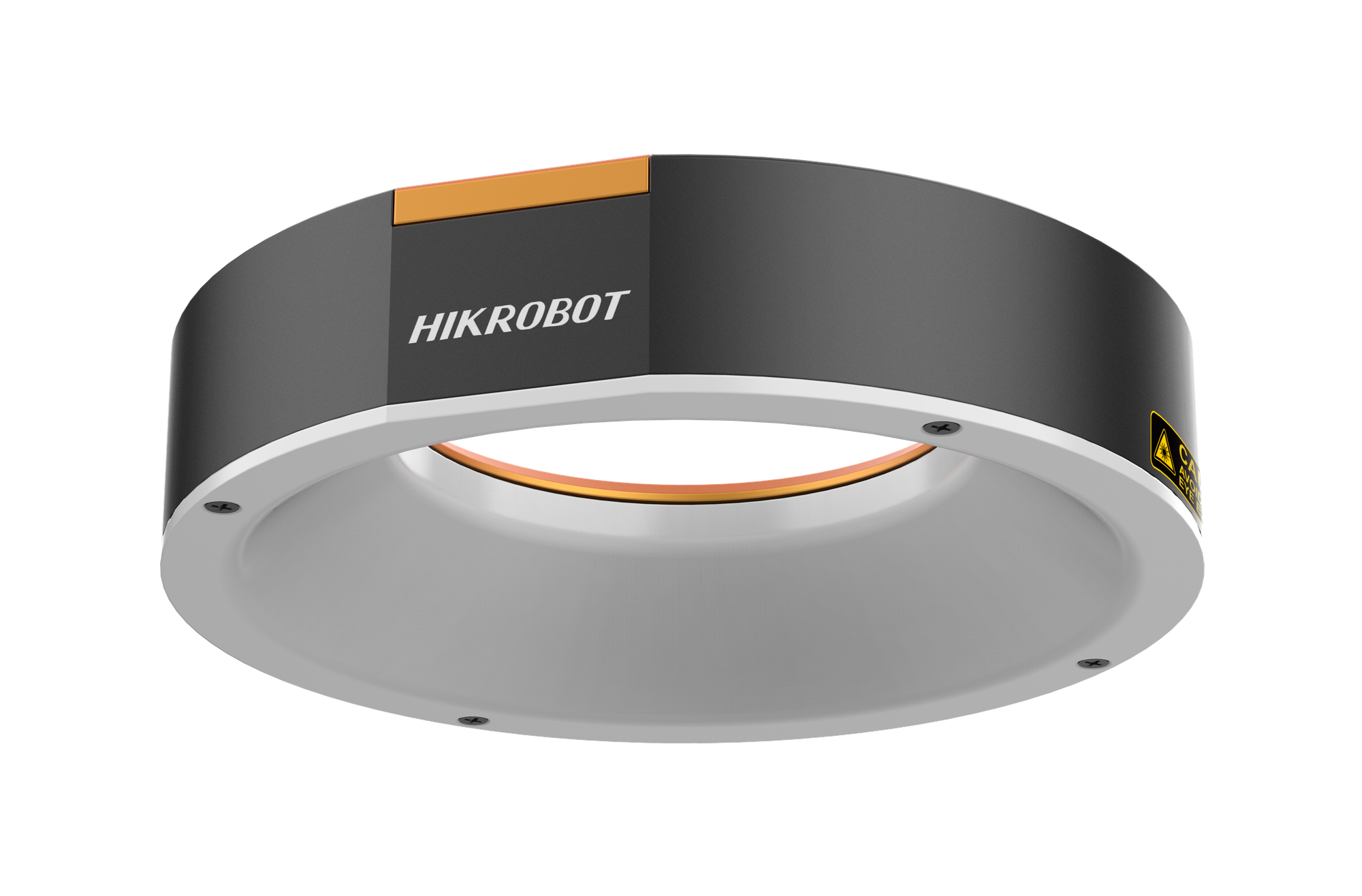

MV-LRSS-H-80-W

HIKROBOT-style MV-*-H-*Light Source currently covers Ring Lights MV-LRDS-H-*-W, MV-LRSS-H-*-W series, strip-shaped Light SourceMV-LLDS-H-*-*-W series and Line Lights MV-LTDS-H-*-W series. The new family-style design is efficient and stable, meeting the needs of most conventional visual lighting applications.

Product introduction

Functional characteristics

High uniformity lighting
Various size outer diameters are available

Ordering Model

MV-LRSS-H-80-W

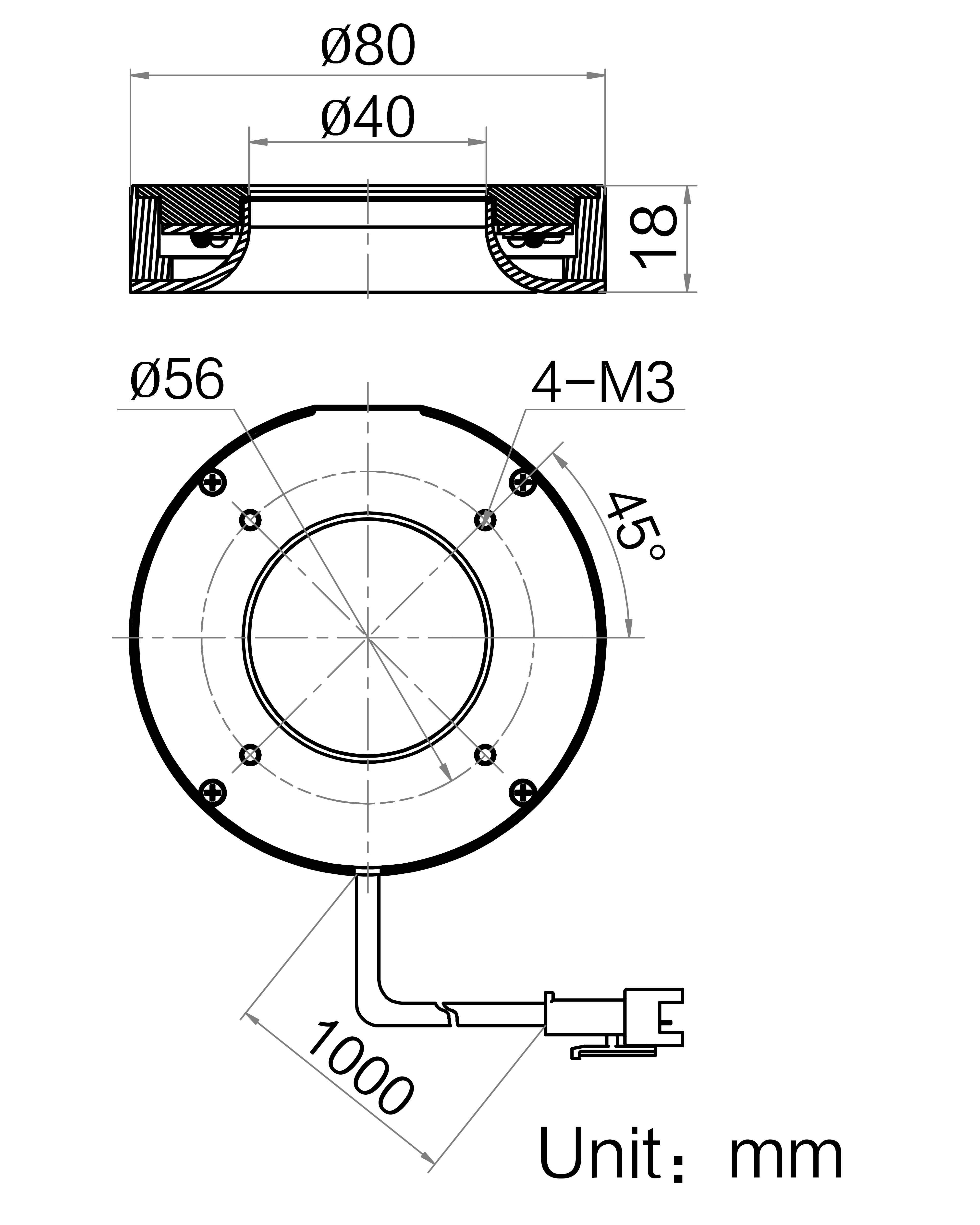

Dimensions

* The data involved in the product may cause differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-LRSS-H-80-W

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-LRSS-H-80-W

Model

Model	MV-LRSS-H-80-W
Name	MV-LRSS-H-80-W

Performance

Color	White
Central Illuminance	≥14000 Lux@WD=100 mm
Optimal Working Distance	30~50 mm
Wavelength	/
Color Temperature	6000 ~ 7000K

Electrical

Power	8.7 W
Interface Type	SMR-03V-B

Mechanical

Dimensions	Φ80 mm × 18 mm
Aperture Diameter	Φ40 mm
Emitting Area Diameter	Φ66 mm
LED Rows	1
Weight	131 g
Power Cable Length	1 m
Temperature	Operating Temperature 0~40°C, Storage Temperature-20~60°C
Humidity	20~90%RH No condensation
Diffuser	PMMA
