HIKROBOT Style Series Lighting Controllers

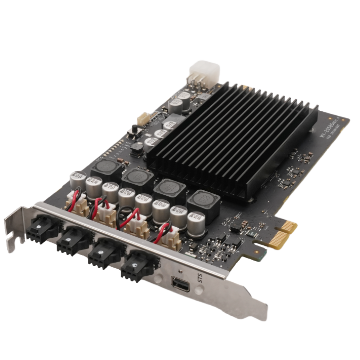

MV-LE200-42W24-4-PCIE

HIKROBOT-style MV-LE series Light Source controllers currently cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series. The brand-new family-style design provides stable and reliable Performance, and is compatible with the HIKROBOT-style Light Source product series.

Consulting quotation
MV-LE200-42W24-4-PCIE

Product introduction

Functional characteristics

  • Adopt PCIe x1Interface, compatible with PCIe x4/8/16 slots, saving space compared to traditional Light Source controllers

  • Lighting Interface supports PWM pulses or analog output

  • Supports host power extraction, adapts to various mainstream Industrial PCs equipment

  • Supports multi-channel optical paths and I/O trigger interfaces, signal linkage control

  • Supports device parameter configuration through client Software, Flexible and easy-to-use



Ordering Model

MV-LE200-42W24-4-PCIE


Dimensions


* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-LE200-42W24-4-PCIE

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

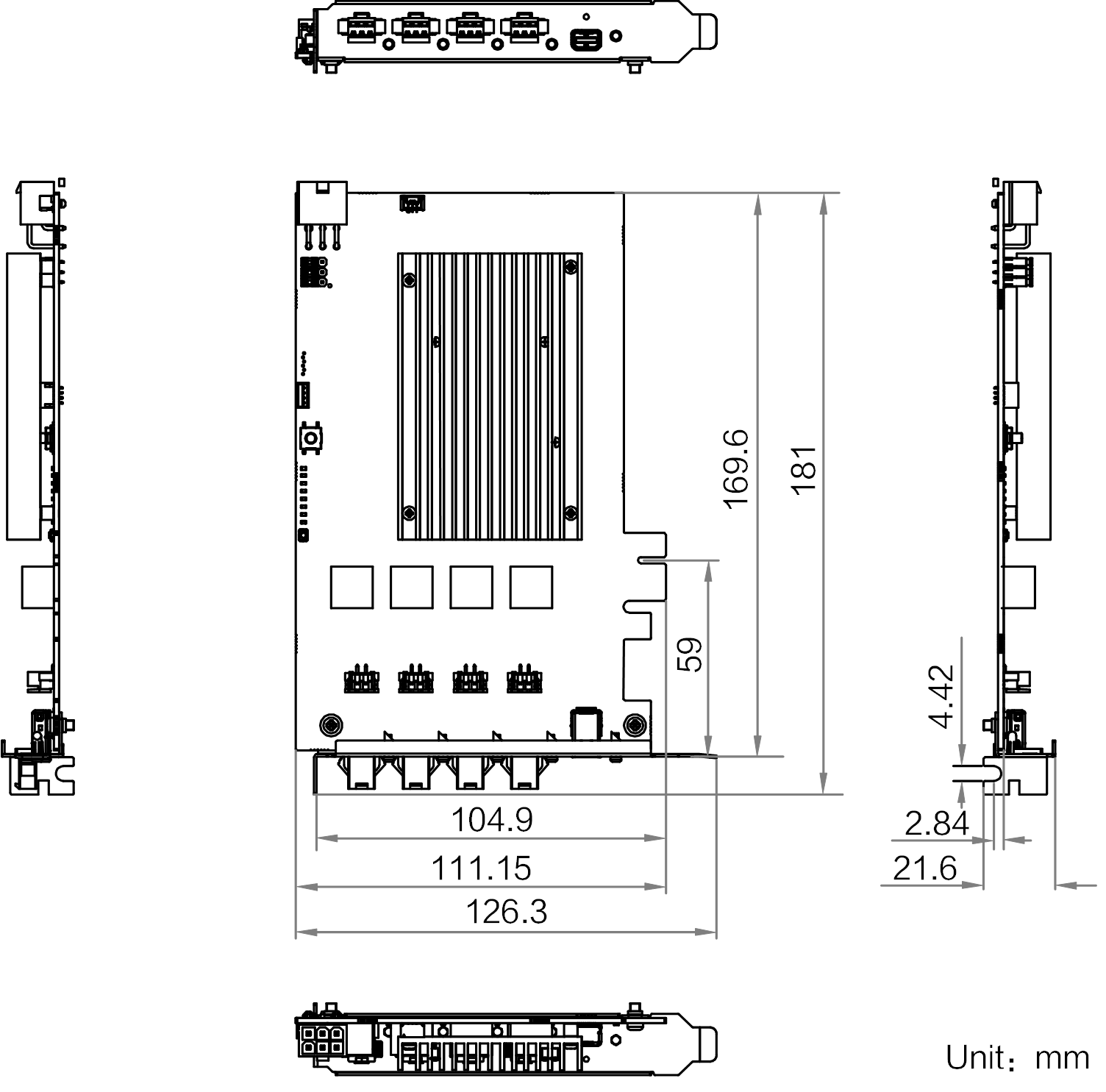

Dimensions

Overall size

Detailed parameters

Ordering Model MV-LE200-42W24-4-PCIE
Model
Model MV-LE200-42W24-4-PCIE
Name PCIELight Source control card, 4 channels, 50W input/42W output, with trigger
Performance
Driving Method Support switching between digital constant voltage or analog constant voltage
Illumination Method Constant light, strobe
PWM frequency 125 KHz
Highlight strobe Not supported
Number of Channels 4
Dimming Method Software(client)
Dimming Levels 0 ~ 255
Illumination Delay Time <5 ms
Trigger Mode Support external triggering, internal triggering
Communication Protocol Serial
Applicable Light Source Ring Light Source, Light Source,Area Lights,Coaxial Lights, etc., Maximum support for 24 W PowerLight Source
Host Interface
Bus Interface PCI-E gen2 x 1
Bus Indicator 1
Electrical
Input Voltage 12 VDC
Input Current 4.2 A
Output Voltage 24 VDC
Output Current 1.75 A max
Output Power 42 W max
Single-Channel Output Current 1 A max
External Trigger Input High level 4.5 ~ 24 V, low level 0 ~ 2 V
External Trigger Output High level 10 ~ 24 V, low level 0 ~ 2 V
Mechanical
Power Interface ATXPower SupplyInterface
Digital I/O 4 optocoupler isolated inputs
Lighting Output Interface SMR-03V-BC
Dimensions 90 mm × 126.3 mm × 21.6 mm
Weight Approximately 212 g
Temperature Operating Temperature0 ~ 50°C, Storage Temperature-20 ~ 60°C
Humidity 20% ~ 85%RH No condensation
Cooling Method Natural cooling
General Specifications
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
