HIKROBOT Style Series Lighting Controllers

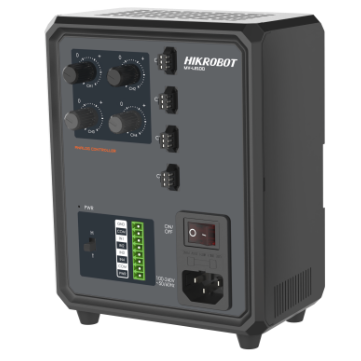

MV-LE100-120W24-4

HIKROBOT-style MV-LE series Light Source controllers currently cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series. The brand-new family-style design provides stable and reliable Performance, and is compatible with the HIKROBOT-style Light Source product series.

Consulting quotation
MV-LE100-120W24-4

Product introduction

Functional characteristics

  • Constant voltage control, support for stepless brightness adjustment

  • Panel knob adjustment, plug-and-play

  • Provides multiple optocoupler isolation inputs, flexible signal linkage

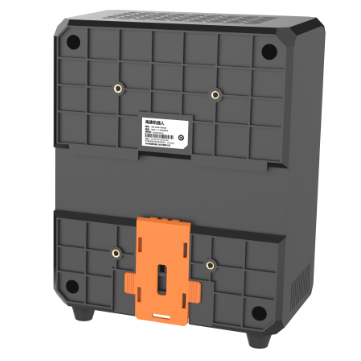

  • Industrial design, supports guide rail or screw hole installation

  • Integrate overcurrent protection, overload protection, and short circuit protection



Ordering Model

MV-LE100-120W24-4


Dimensions


* The data involved in the product may cause differences due to environmental and other factors. The company does not bear the consequences arising therefrom.

Ordering Model

MV-LE100-120W24-4

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

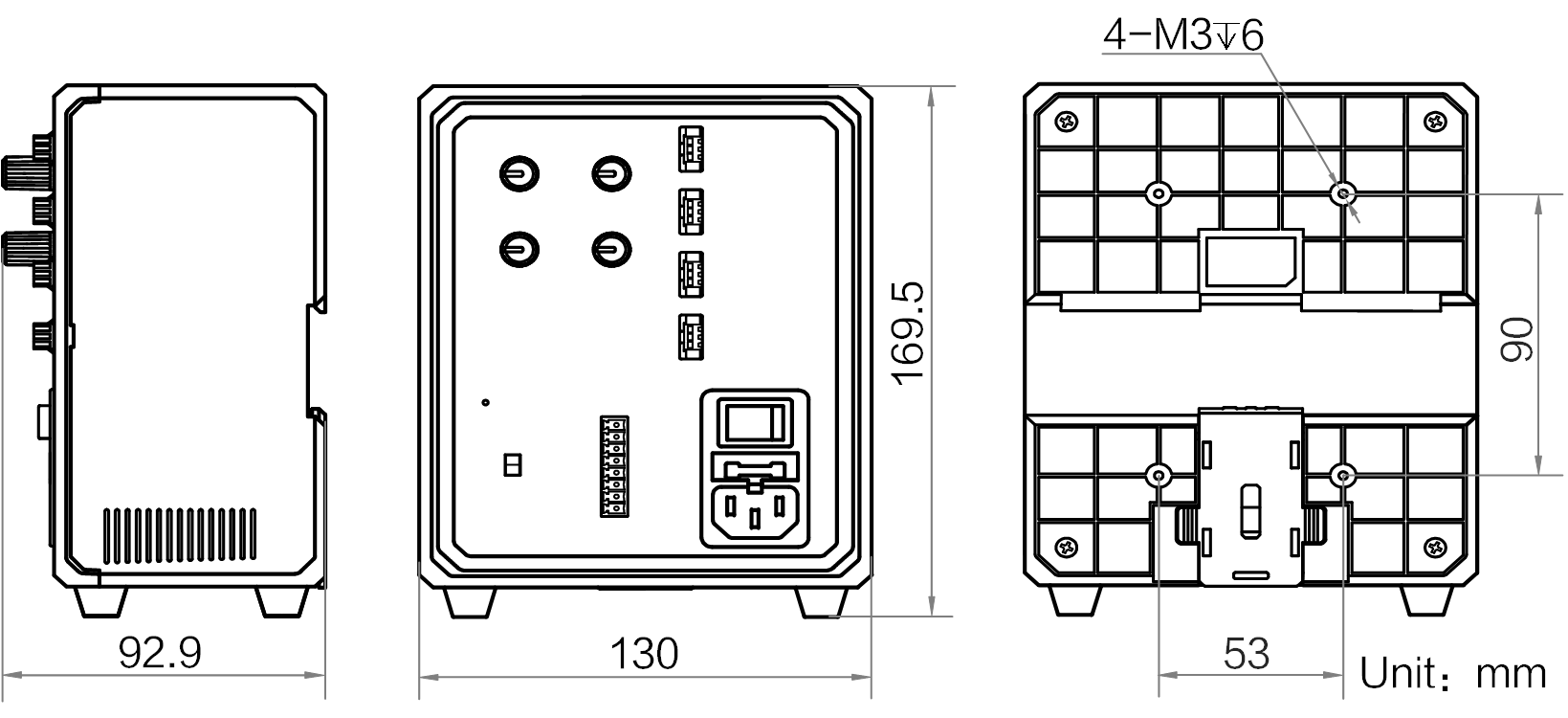

Dimensions

Overall size

Detailed parameters

Ordering Model MV-LE100-120W24-4
Model
Model MV-LE100-120W24-4
Name Analog constant voltage Light Source controller, 120W24, 4 channels
Performance
Driving Method Analog, constant voltage
Illumination Method Always on, strobe
Number of Channels 4
Dimming Method Panel (knob)
Illumination Delay Time <100 μs
Trigger Mode Support external triggering
Applicable Light Source Ring Light Source, Strip Light Source,Area Lights,Coaxial Lights, etc.
Electrical
Input Voltage 100 ~ 240 VAC,50/60 Hz
Input Current 2.1 A(115 VAC),1.2 A(230 VAC)
Output Voltage 24 VDC
Output Current 5 A max
Output Power 120 W max
Single-Channel Output Current 3 A max
External Trigger Input High level 4.5 ~ 24 VDC, Low-level 0 ~ 2 VDC
Mechanical
Power Interface C13 220 VACInterface
Digital I/O 4-channel optocoupler isolated inputs
Lighting Output Interface SMR-03V-BC
Dimensions 130 mm × 92.9 mm × 169.5 mm
Housing Material Engineering molded case
Weight Approximately 795 g
Temperature Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
IP Rating IP30
Humidity 20% ~ 85%RH No condensation
Cooling Method Fan cooling
General Specifications
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
