Name: HIKROBOT Style Series Lighting Controllers
Brand: HIKROBOT
SKU: MV-LE100-24W24-2
Availability: InStock

MV-LE201-30W5-2FD

HIKROBOT-style MV-LE series Light Source controllers currently cover MV-LE100 analog constant voltage series, MV-LE200 digital constant voltage series and MV-LE201 digital constant current series. The brand-new family-style design provides stable and reliable Performance, and is compatible with the HIKROBOT-style Light Source product series.

Product introduction

Functional characteristics

Constant current drive can improve the stability of Light Source's light emitting
Buttons + digital Display can enable quick query and optical circuit output settings
Supports Serial Port mode for device management and parameter configuration
Supports external trigger Interface, allowing flexible selection of normally on or strobe working mode
Integrate overcurrent protection, overload protection, over-temperature protection, and short circuit protection functions

Ordering Model

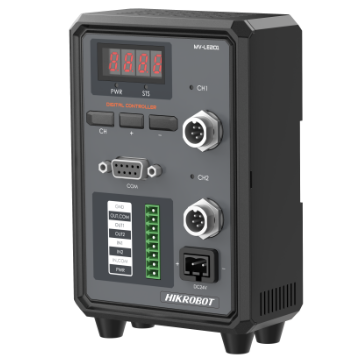

MV-LE201-30W5-2FD

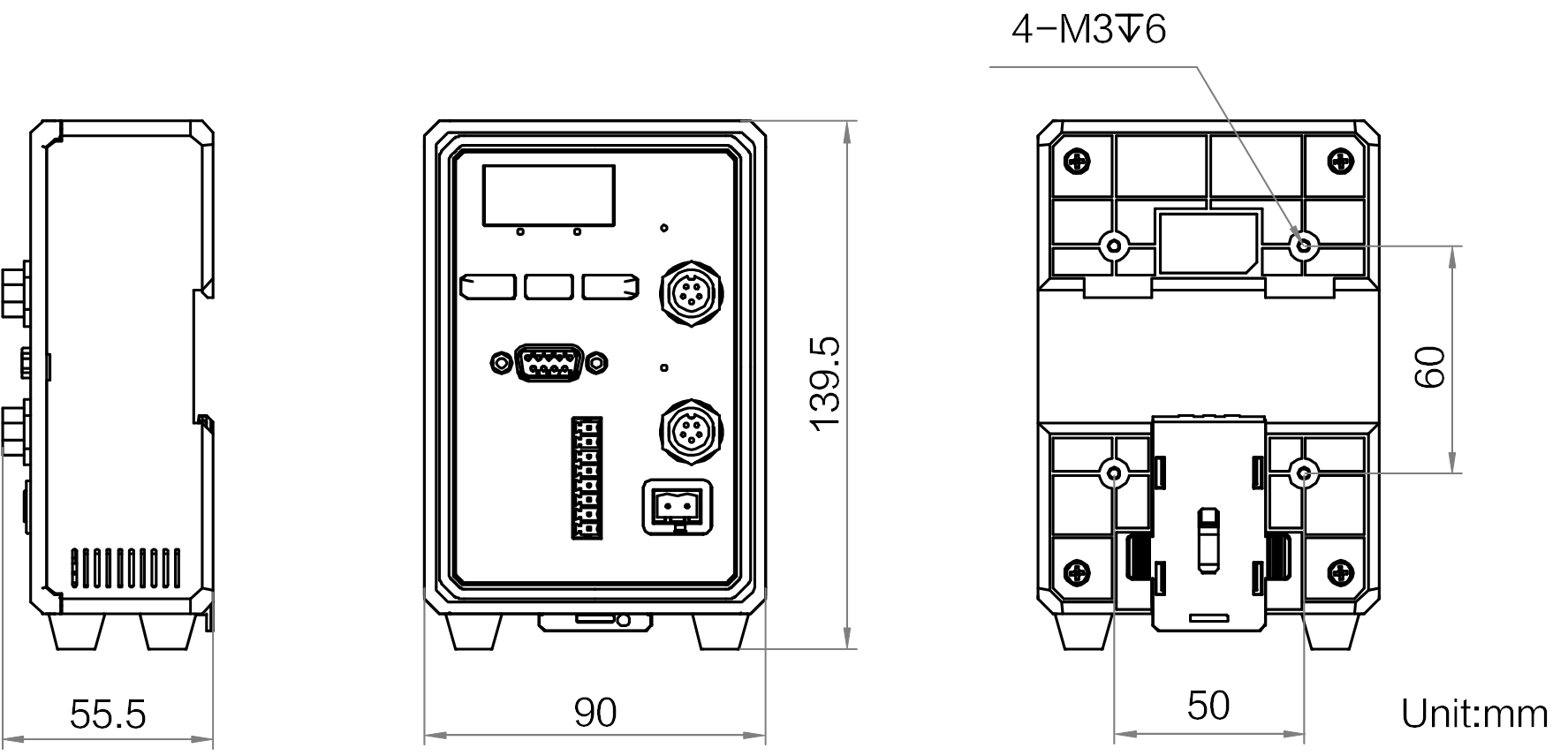

Dimensions

* Data involved in the product may be caused by environmental and other factors Differences The company will not bear the consequences arising therefrom.

Ordering Model

MV-LE201-30W5-2FD

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-LE201-30W5-2FD

Model

Model	MV-LE201-30W5-2FD
Name	Digital constant current Light Source controller 30W5, 2 channels, 12M-5FConnector

Performance

Driving Method	Digital, constant current
Illumination Method	Always on, Strobe
Number of Channels	2
Dimming Method	Panel (Buttons),Software (Serial Port)
Dimming Levels	0 ~ 255
Illumination Delay Time	< 30 μs
Trigger Mode	Support external triggering,
Communication Protocol	Serial
Applicable Light Source	Point Light Source

Electrical

Input Voltage	24 VDC
Input Current	1.5 A/24 VDC
Output Voltage	5 VDC
Output Current	3 A max
Output Power	30 W max
Single-Channel Output Current	3 A max
External Trigger Input	High level 4.5 ~ 24 V, low level 0 ~ 2 V
External Trigger Output	High level 10 ~ 24 V, low level 0 ~ 2 V

Mechanical

Power Interface	24VDC terminal
Control Interface	DB9F Serial Port
Digital I/O	2 optocoupler isolated inputs, 2-way optocoupler isolated output
Lighting Output Interface	12M-5F (hole type)
Dimensions	139.5 mm × 90 mm × 55.5 mm
Housing Material	Engineering molded case
Weight	300 g
Temperature	Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
Humidity	20% ~ 85%RH No condensation
IP Rating	IP30
Cooling Method	Fan cooling
