Name: HIKROBOT Standard Series Lighting Controllers
Brand: HIKROBOT
SKU: MV-LELS-300-1K-PY
Availability: InStock

MV-LELS-1000-4TS-PY

Standard Series Lighting Controllers have a wide variety of types, including digital constant voltage, constant current, analog constant voltage, strobe brightness enhancement controllers and other types. They can match all types of Standard Series Lighting and can be used in most machine vision scenarios.

Product introduction

Functional characteristics

Supports three ways to control the Light Source: panel control, RS-232 Serial Port communication and RJ45 network port communication
Contains an external trigger port, which can light up the Light Source as needed, extending the life of the Light Source
Has power failure memory function, short circuit protection function, and overload protection function
Supports two ways to drive the Light Source: constant voltage and constant current, making the Light Source more stable.
Automatically identifies the rated current value of the Light Source. It can drive Light Source of different specifications

Ordering Model

MV-LELS-1000-4TS-PY

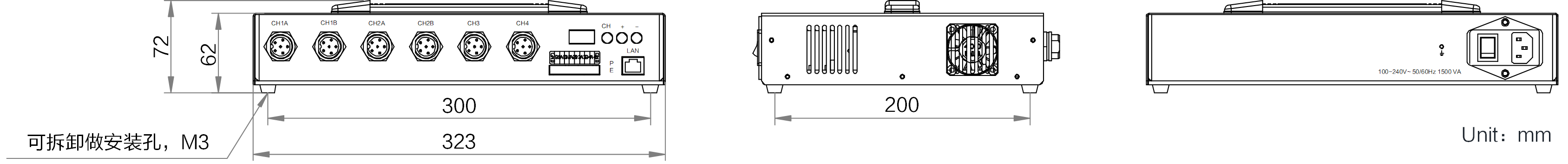

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences.

Ordering Model

MV-LELS-1000-4TS-PY

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-LELS-1000-4TS-PY

Model

Model	MV-LELS-1000-4TS-PY
Name	Strobe Line Light Controller, total Output Power 1000W/48V, 4 channels (CH1/2 is dual interfaces, CH3/4 is single Interface), a single channel up to 10A, 19M-6GConnector (adapted to 19M-6HConnectorLight Source), 4 channels External Trigger Input(RS422 differential), with network interface, maximum frequency 100kHz, dedicated to time-sharing cameras.

Performance

Driving Method	Constant voltage
Illumination Method	Pulsed type
PWM frequency	Not supported
High-intensity strobing	Support
Number of Channels	4
Dimming Method	Lighting pulse width time
Dimming Levels	Not supported
Illumination Delay Time	< 1 us
Trigger Mode	Support external triggering, internal triggering
Communication Protocol	Internet port
Applicable Light Source	Large PowerLight Source, Line Lights

Electrical

Input Voltage	180 ~ 240 VAC,50/60 Hz
Input Current	7.5 A
Output Voltage	48 VDC
Output Current	40 A max
Output Power	1000 W max
Single-Channel Output Current	10 A max
External Trigger Input	Level signal DC 5 ~ 24 V / 6mA
External Trigger Output	Not supported

Mechanical

Power Interface	AC socket
Control Interface	Network port
Digital I/O	3-way RS-422
Lighting Output Interface	4 pieces 19M-6G
Dimensions	323 mm × 72 mm × 200 mm
Housing Material	Galvanized plate
Weight	Approximately 3500 g
Temperature	Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
Humidity	20% ~ 85%RH Non-condensing
IP Rating	IP50(properly installed)
Cooling Method	Forced cooling (built-in fan)
