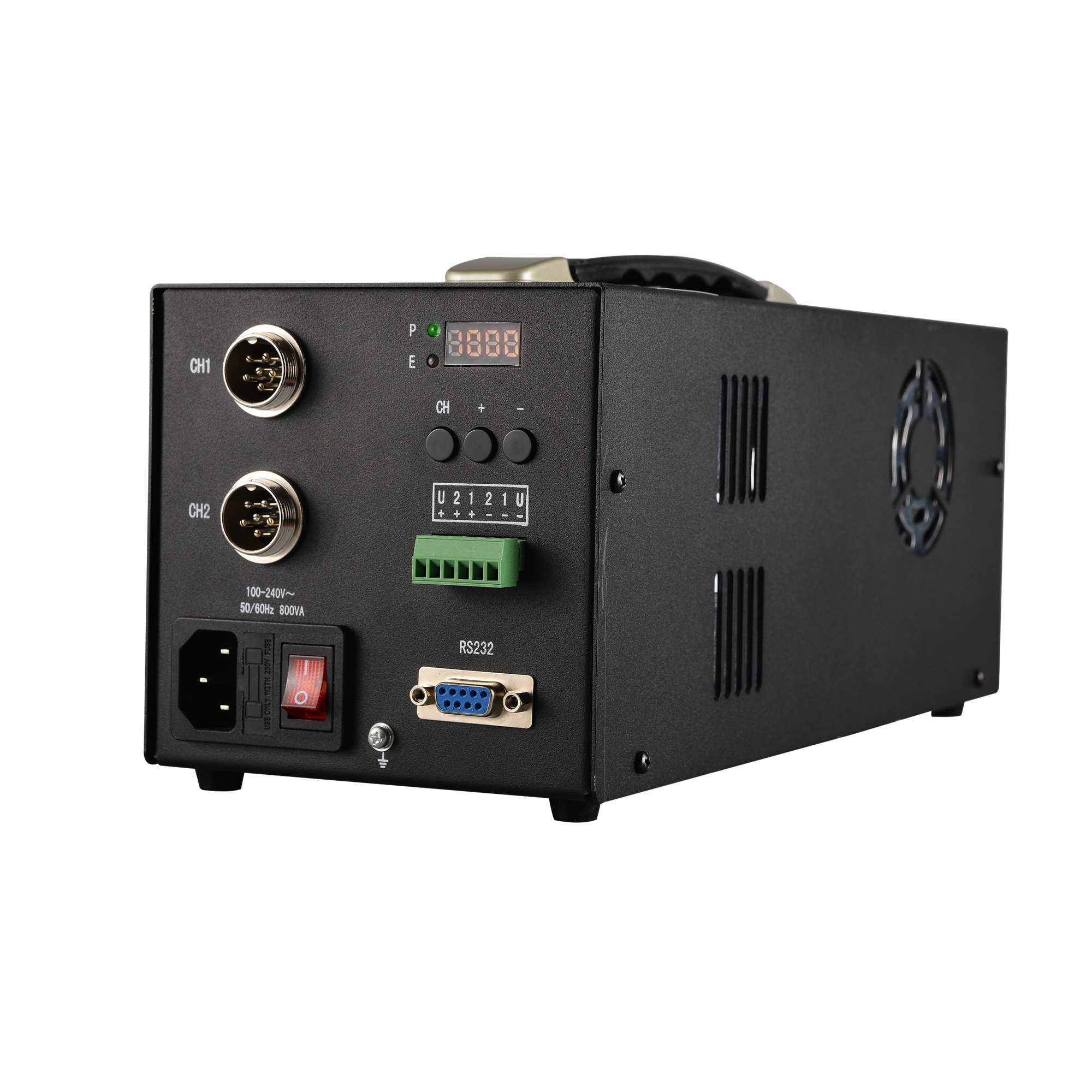

Name: HIKROBOT Standard Series Lighting Controllers
Brand: HIKROBOT
SKU: MV-LELS-300-1K-PY
Availability: InStock

MV-LELS-300-1K-PY

Standard Series Lighting Controllers have a wide variety of types, including digital constant voltage, constant current, analog constant voltage, strobe brightness enhancement controllers and other types. They can match all types of Standard Series Lighting and can be used in most machine vision scenarios.

Product introduction

Functional characteristics

Supports three ways to control the Light Source: panel control, RS-232 Serial Port communication and RJ45 network port communication
Contains an external trigger port, which can light up the Light Source as needed, extending the life of the Light Source
Has power failure memory function, short circuit protection function, and overload protection function
Supports two ways to drive the Light Source: constant voltage and constant current, making the Light Source more stable.
Automatically identifies the rated current value of the Light Source. It can drive Light Source of different specifications

Ordering Model

MV-LELS-300-1K-PY

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences.

Ordering Model

MV-LELS-300-1K-PY

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-LELS-300-1K-PY

Model

Model	MV-LELS-300-1K-PY
Name	Analog constant current Light Source controller, 300W, 1 channel, 20M-4K Interface, Line Light Controller

Performance

Driving Method	Constant voltage
Illumination Method	Analog constant voltage
PWM frequency	Not supported
Highlight stroboscopic	Not supported
Number of Channels	1
Dimming Method	Panel buttons,Serial Port communication
Dimming Levels	0 ~ 255
Illumination Delay Time	<5 ms
Trigger Mode	Support external triggering, Internal trigger
Communication Protocol	RS-232
Applicable Light Source	Line Lights

Electrical

Input Voltage	100 ~ 240 VAC,50/60 Hz
Input Current	3.5 A
Output Voltage	24 VDC
Output Current	12.5 A max
Output Power	300 W max
Single-Channel Output Current	12.5 A max
External Trigger Input	Level signal DC 5 ~ 24 V / 6mA
External Trigger Output	Not supported

Mechanical

Power Interface	AC socket
Control Interface	Serial Port
Digital I/O	1 input, 1 internal power output
Lighting Output Interface	2 pieces 20M-4K
Dimensions	290.3 mm × 102 mm × 132 mm
Housing Material	Galvanized plate
Weight	Approximately 2630 g
Temperature	Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
Humidity	20% ~ 85%RH No condensation
IP Rating	IP30(when properly installed)
Cooling Method	Forced cooling (built-in fan)
