Name: HIKROBOT Standard Series Lighting Controllers
Brand: HIKROBOT
SKU: MV-LELS-300-1K-PY
Availability: InStock

MV-LEVD-200-8-SY

Standard Series Lighting Controllers have a wide variety of types, including digital constant voltage, constant current, analog constant voltage, strobe brightness enhancement controllers and other types. They can match all types of Standard Series Lighting and can be used in most machine vision scenarios.

Product introduction

Functional characteristics

Single-Channel Output Current up to 6.25 A
Supports panel knobs, panel buttons, and Serial Port communication to control brightness
Serial Port provides 0 to 255 levels of brightness adjustment, a total of 256 levels of brightness adjustment
External trigger adopts high-speed optocoupler isolation design to provide accurate and highly reliable trigger signals
Features of power failure preservation, Overload/short circuit protection function

Ordering Model

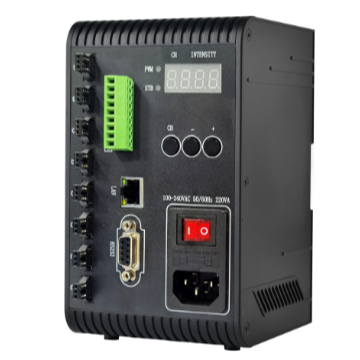

MV-LEVD-200-8-SY

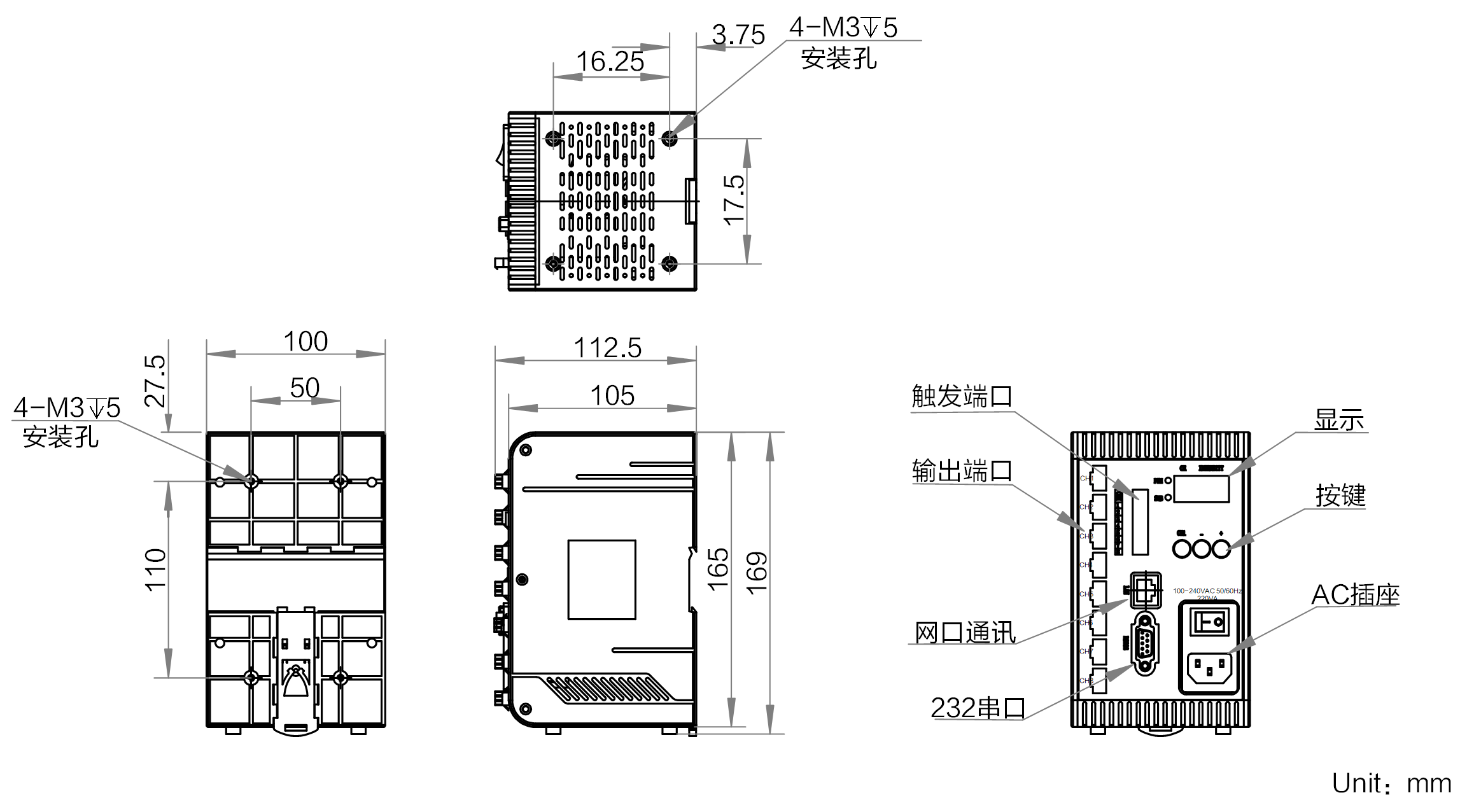

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-LEVD-200-8-SY

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-LEVD-200-8-SY

Model

Model	MV-LEVD-200-8-SY
Name	Light Source controller, digital, constant voltage output, total Output Power200W, 8 channels, single channel maximum output of 72W, SMR-03V-BCConnector, with GPIO trigger, Serial Port& Network Port Communication

Performance

Driving Method	Constant voltage
Illumination Method	Constant voltage
PWM frequency	140 KHz
Highlight strobing	Not supported
Number of Channels	8
Dimming Method	Panel buttons,Serial Port communication, Network Port communication
Dimming Levels	0 ~ 255
Illumination Delay Time	<10 μs
Trigger Mode	Support external triggering
Communication Protocol	RS-232/RJ45 Network Port
Applicable Light Source	Ring Light Source, Strip Light Source,Area Lights, Coaxial Lights

Electrical

Input Voltage	100 ~ 240 VAC,50/60 Hz
Input Current	2.5 A
Output Voltage	24 VDC
Output Current	8 A max
Output Power	200 W max
Single-Channel Output Current	3 A max
External Trigger Input	Level signal DC 5 ~ 24 V / 6 mA
External Trigger Output	Not supported

Mechanical

Power Interface	AC socket
Control Interface	Serial Port
Digital I/O	6 inputs
Lighting Output Interface	SMR-03V-BC
Dimensions	169 mm × 112.5 mm × 100 mm
Housing Material	Engineering molded case
Weight	680 g
Temperature	Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
IP Rating	IP30(correctly installed)
Humidity	20% ~ 85%RH No condensation
Cooling Method	Forced cooling (built-in fan)
