Name: HIKROBOT Standard Series Lighting Controllers
Brand: HIKROBOT
SKU: MV-LELS-300-1K-PY
Availability: InStock

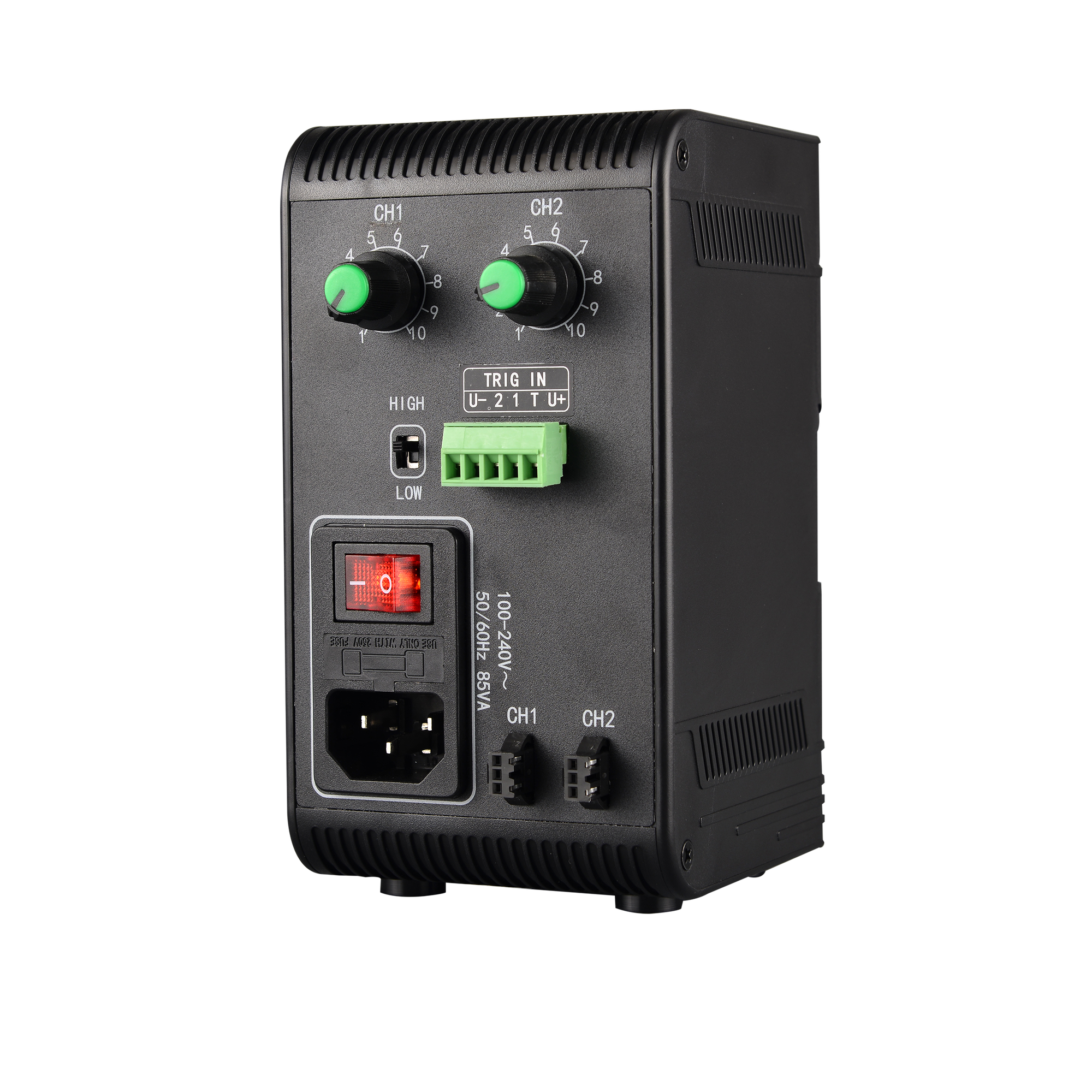

MV-LEVS-300-2B-SY

Standard Series Lighting Controllers have a wide variety of types, including digital constant voltage, constant current, analog constant voltage, strobe brightness enhancement controllers and other types. They can match all types of Standard Series Lighting and can be used in most machine vision scenarios.

Product introduction

Functional characteristics

Support manual setting or external trigger to control the brightness of the Light Source
Single channel supports a maximum Output Current of up to 17A
Some Models include an external trigger port to control the Light Source on and off on demand
Built-in globally applicable switching power supply, Input Voltage 100~ 240 VAC

Ordering Model

MV-LEVS-300-2B-SY

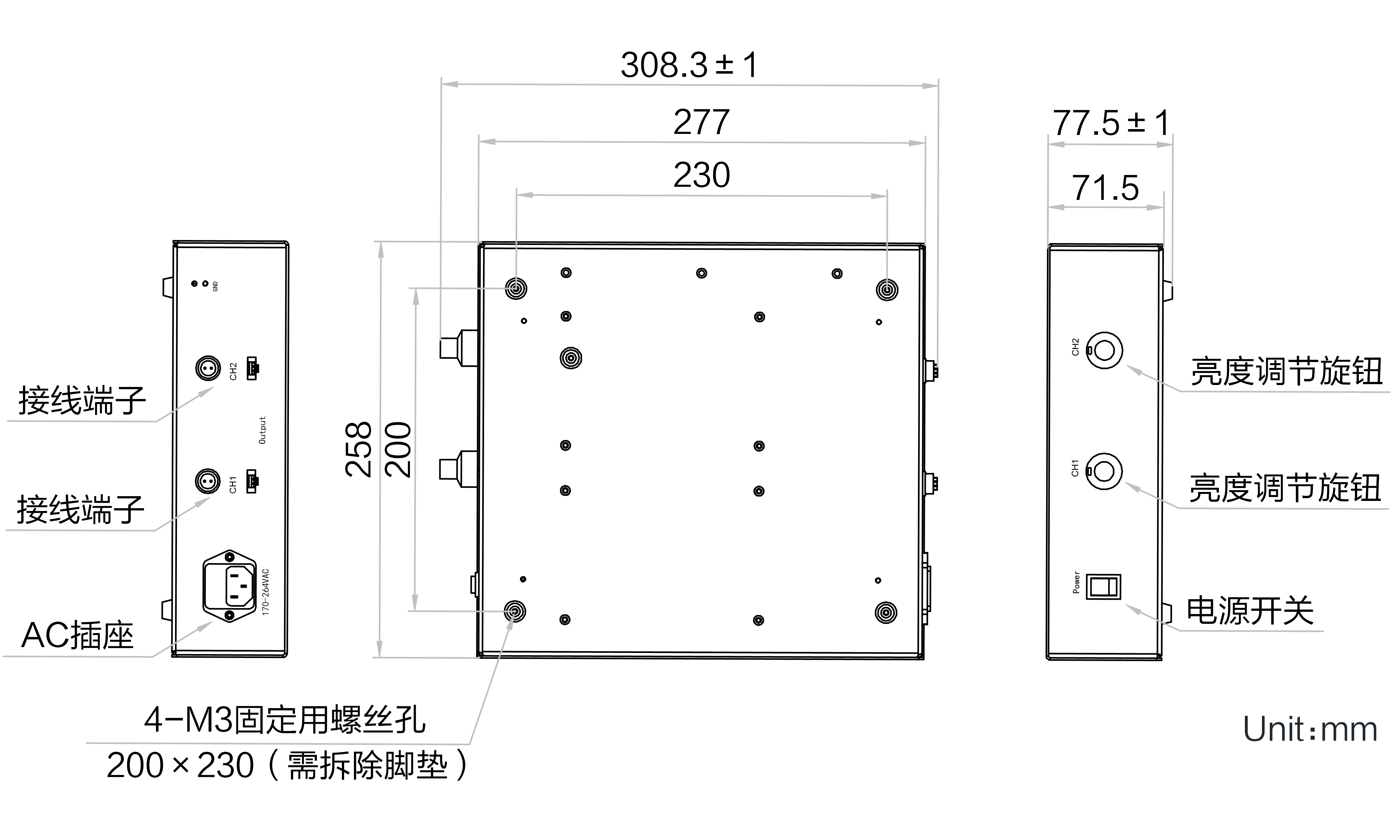

Dimensions

* Data involved in the product may cause differences due to environmental and other factors. The company will not bear the consequences.

Ordering Model

MV-LEVS-300-2B-SY

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-LEVS-300-2B-SY

Model

Model	MV-LEVS-300-2B-SY
Name	Analog constant voltage Light Source controller, 300W, 2 channels, 12M-2B Interface

Performance

Driving Method	Constant voltage
Illumination Method	Analog
PWM frequency	Not supported
Highlight strobing	Not supported
Number of Channels	2
Dimming Method	Panel knob
Dimming Levels	Stepless dimming
Illumination Delay Time	Not supported
Trigger Mode	Not supported
Communication Protocol	Not supported
Applicable Light Source	Always on Area Lights, Always on Line Lights

Electrical

Input Voltage	100 ~ 240 VAC,50/60 Hz
Input Current	2 A
Output Voltage	24 VDC
Output Current	12 A max
Output Power	300 W max
Single-Channel Output Current	6 A max
External Trigger Input	Not supported
External Trigger Output	Not supported

Mechanical

Power Interface	AC sockets
Control Interface	Not supported
Digital I/O	Not supported
Lighting Output Interface	12M-2B
Dimensions	308.3 mm × 258 mm × 77.5 mm
Housing Material	Galvanized plate
Weight	Approximately 4100 g
Temperature	Operating Temperature0 ~ 40°C, Storage Temperature-20 ~ 60°C
IP Rating	IP30(when installed correctly)
Humidity	20% ~ 85%RH No condensation
Cooling Method	Forced cooling (built-in fan)
