HIKROBOT Lighting Accessories

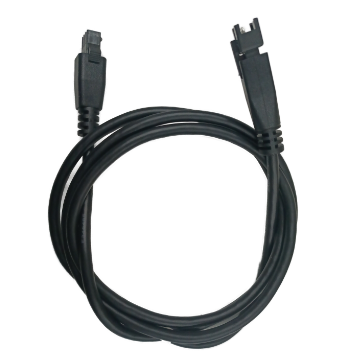

MV-LW-H-003-1-S

In complex vision application scenarios, Lighting Accessories (such as Lighting Extension Cable) provide more variety of application extensions for the use of Light Source and Light Source controllers, adapting to longer transmission distances, Interface extensions, and other usage needs.

Consulting quotation
MV-LW-H-003-1-S

Product introduction

Functional characteristics

  • Various Connector types, Lighting Interfaces suitable for various machine visions

  • Various lengths are optional to meet the installation methods of Light Source at different distances (note that there is a risk of pressure drop at a distance of 30 meters)



Ordering Model

MV-LW-H-003-1-S


Dimensions


* The data involved in the product may cause differences due to environmental and other factors, and the company will not bear the consequences.

Ordering Model

MV-LW-H-003-1-S

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

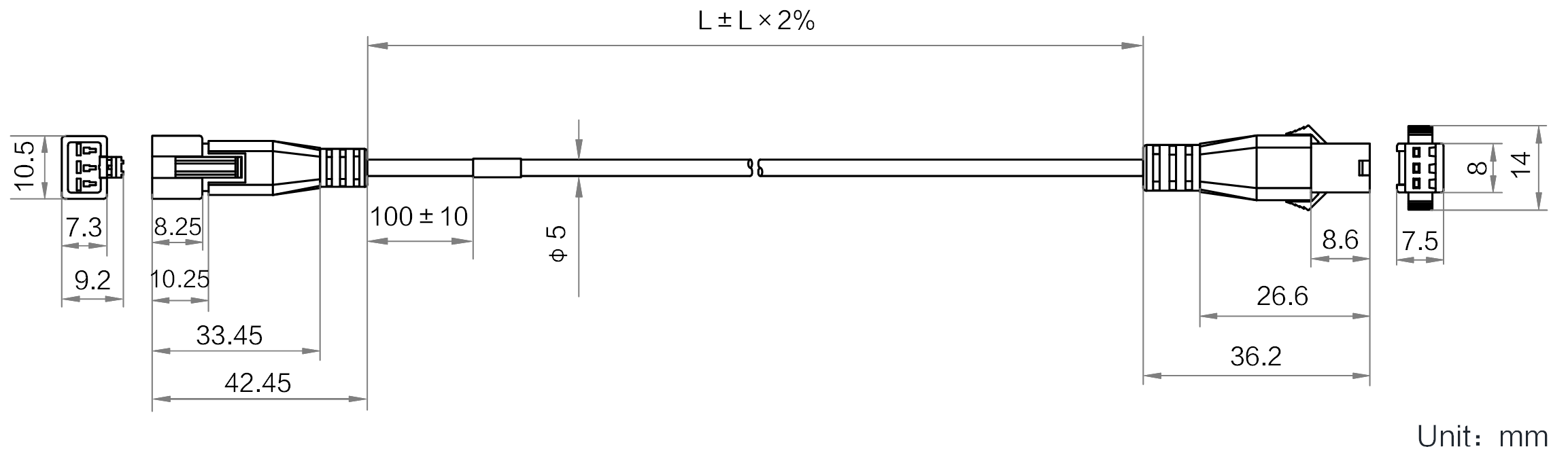

Dimensions

Overall size

Detailed parameters

Ordering Model MV-LW-H-003-1-S
Model
Model MV-LW-H-003-1-S
Name Lighting Extension Cable, 1 point 1, SMR-03V-B converted to SMR-03V-BC
Physical Specifications
Number of Channels 1
Connector A SMR-03V-B
Connector B SMR-03V-BC
Length 3 m
Cable Diameter φ5 mm
Cable Structure 24AWG*3C
Cables material PVC
Drag Chain (U-Shape) Sliding Cycles 5 million times
Min. Bending Radius 40 mm
Maximum number of pluggable times 2000 times
Cables flammability rating VW-1
Electrical Specifications
Insulation characteristics ≥20 MΩ/KM
Voltage resistance 30 V
Mechanical
Temperature Operating Temperature-0 to 80°C, Storage Temperature-20 ~ 80°C
Humidity 20% ~ 90%RH
IP Rating IP55(correctly installed)
General Specifications
Certification RoHS2.0

Data download

Product manual· SDK ·Development documentation
