HIKROBOT Lighting Accessories

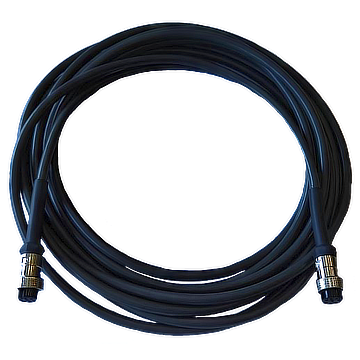

MV-LW-H-001-1-19M8A

In complex vision application scenarios, Lighting Accessories (such as Lighting Extension Cable) provide more variety of application extensions for the use of Light Source and Light Source controllers, adapting to longer transmission distances, Interface extensions, and other usage needs.

Consulting quotation
MV-LW-H-001-1-19M8A

Product introduction

Functional characteristics

  • Various Connector types, Lighting Interface suitable for various machine vision

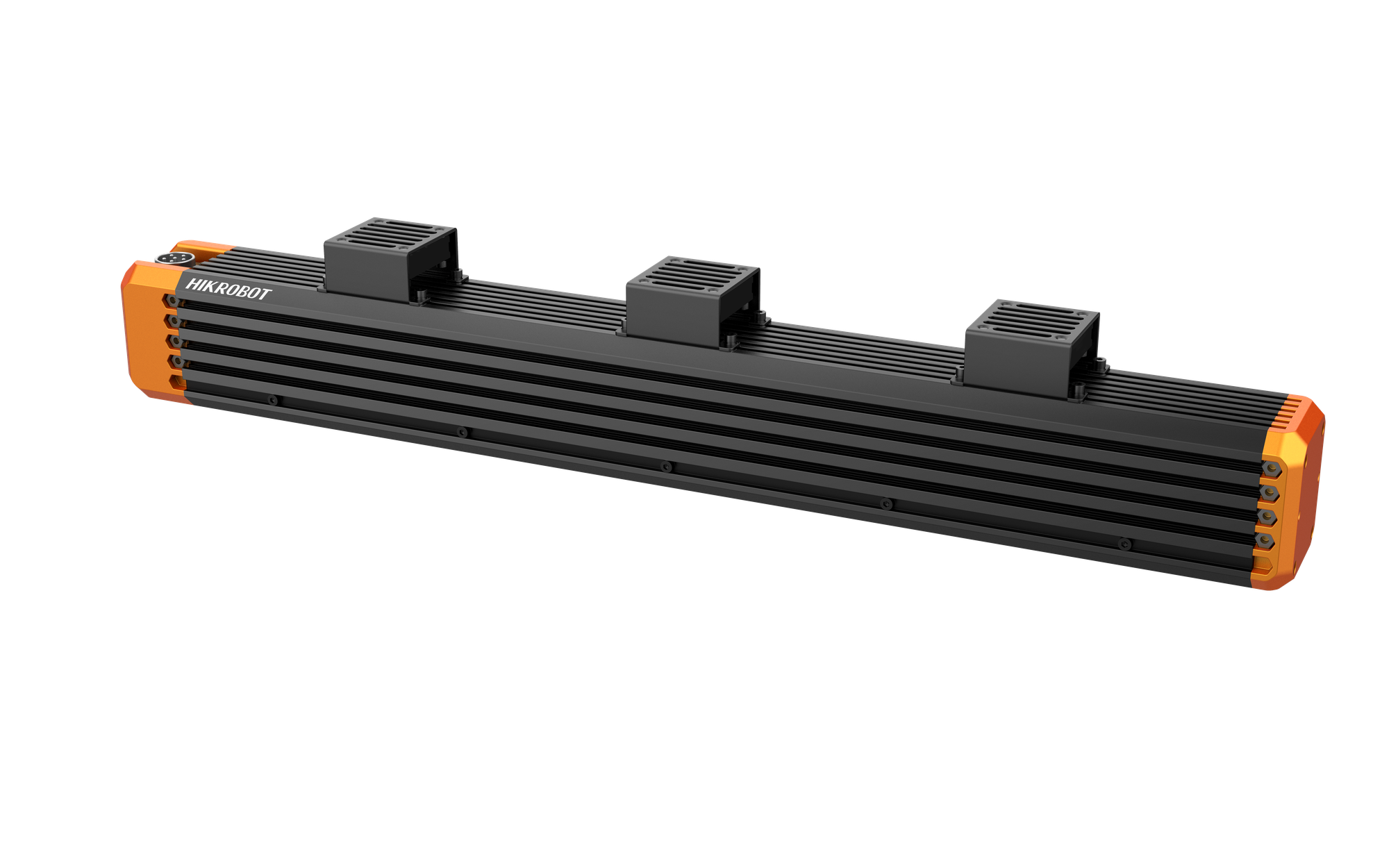

  • MV-LW-H-***-19M8A series Model, need to be used with MV-LTDS-H series Line Lights

  • Various lengths are optional to meet Light Source's installation methods at different distances (note that there is a certain pressure drop over long distances)



Ordering Model

MV-LW-H-001-1-19M8A


Dimensions


* The data involved in the product may cause Differences due to environmental factors. The company will not bear the consequences.

Ordering Model

MV-LW-H-001-1-19M8A

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

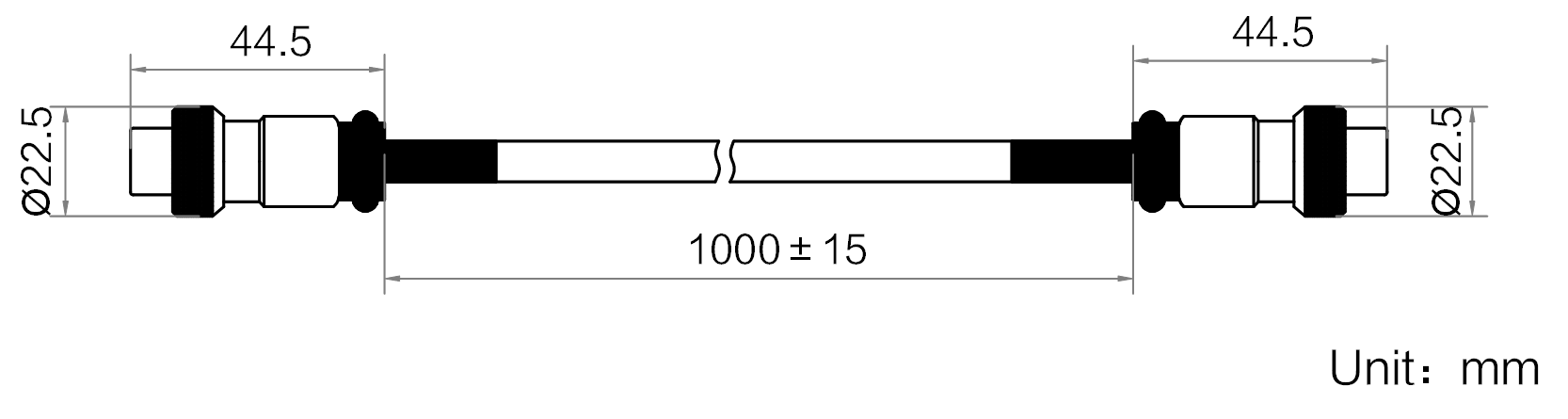

Dimensions

Overall size

Detailed parameters

Ordering Model MV-LW-H-001-1-19M8A
Model
Model MV-LW-H-001-1-19M8A
Name MV-LW-H-001-1-19M8A
Physical Specifications
Number of Channels 1
Connector A 19M-8A
Connector B 19M-8A
Length 1 m
Cable Diameter φ8.75 mm
Cables material PVC
±90° Bending Cycles 2 million times
Min. Bending Radius 105 mm
Maximum number of pluggable times 500 times
Cables flammability rating VW-1
Electrical Specifications
Insulation characteristics ≥10 MΩ/KM
Voltage resistance 300 V
Mechanical
Temperature Operating Temperature-0 ~ 80°C, Storage Temperature-20 ~ 80°C
Humidity 20% ~ 90%RH
IP Rating IP55 (When installed correctly)
General Specifications
Certification RoHS2.0

Data download

Product manual· SDK ·Development documentation
