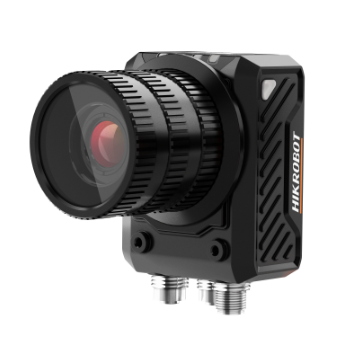

HIKROBOT SC6000 Series Smart Cameras

MV-SC6016C-00C-NNN/V2

1408 × 1024, Color

Consulting quotation
MV-SC6016C-00C-NNN/V2

Product introduction

Functional characteristics

  • Embedded AI deep learning algorithms can realize character recognition, object recognition, defect detection and other functions

  • Integrated VM algorithm PlatformSoftware, allowing free use of 140+ algorithm functions

  • Rich Interface extensions, supports multi-channel IO, supports

  • High Performance Processors such as direct drive Light Source and display, with faster computing Performance and more efficient processing

  • Support multiple industrial Communication Protocols, worry-free docking

  • Rich status Indicator, allowing real-time monitoring of device status, Convenient debugging and maintenance

  • IP67 protection, without fear of harsh industrial application environments



Ordering Model

MV-SC6016C-00C-NNN/V2


Dimensions


* The data involved in the product may cause differences due to environmental and other factors. The company will not bear the consequences of this.

Ordering Model

MV-SC6016C-00C-NNN/V2

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

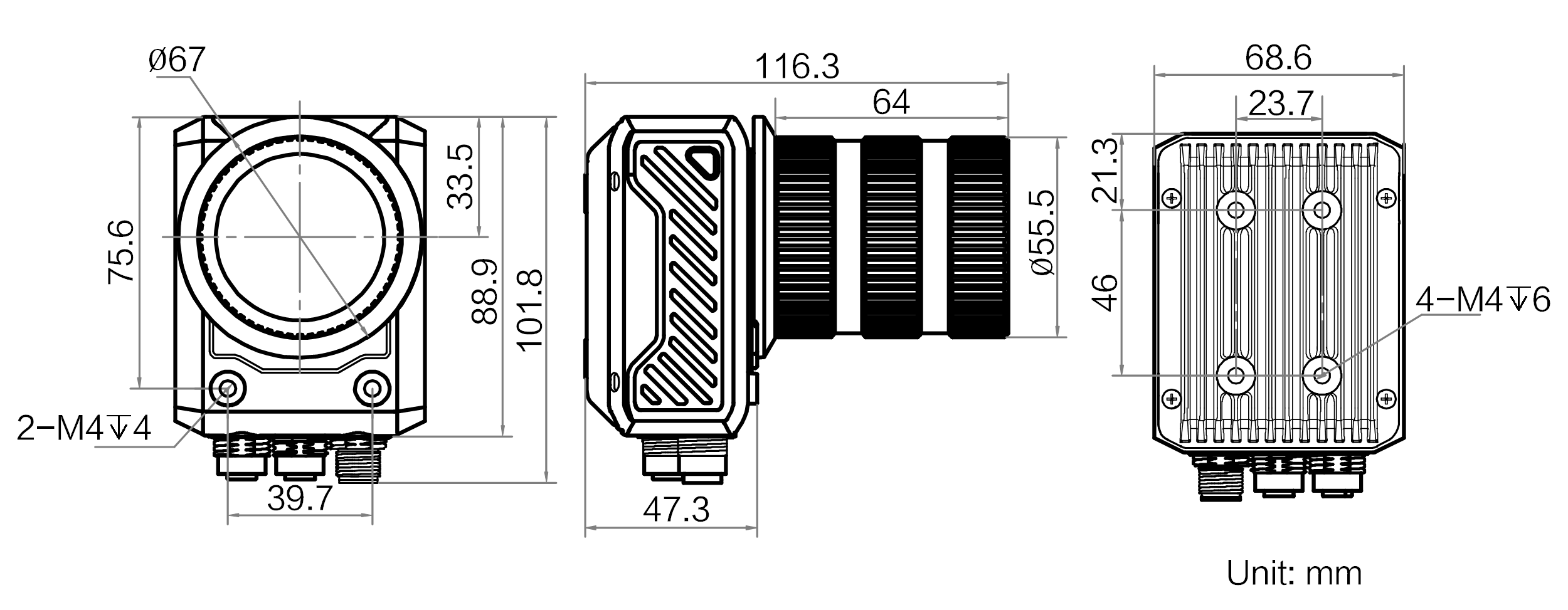

Dimensions

Overall size

Detailed parameters

Ordering Model MV-SC6016C-00C-NNN/V2
Model
Model MV-SC6016C-00C-NNN/V2
Name SC6000Smart Cameras, 1.6MP, color, C-port, without LensesLight Source
Tools
Function Modules VisionMaster Algorithm Development Platform (Including deep learning modules)
Communication Protocol TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Camera
Sensor Type CMOS, global shutter
Pixel Size 3.45 μm × 3.45 μm
Optical Format 1/2.9''
Resolution 1408 × 1024
Max. Acquisition Frame Rate 120 fps
Gain 0 dB ~ 15 dB
Exposure Time 25μs ~ 1 sec
Pixel Format Mono 8,RGB 8
Mono/Color color
Platform
Memory 8 GB
Storage 64 GB
Electrical
Data Interface Gigabit Ethernet(1000Mbit/s)
Digital I/O 17-pin M12Interface, supports 2 optocoupler isolated inputs (Line 0/1), 2 optocoupler isolated outputs (Line 4/5), 2 non-isolated configurable inputs and outputs (line 2/3), 1 RS-232, 1 Light Source output (maximum support of 30 W)
Expansion Interface 1 VGA,1 USB host
Power Supply 24 VDC
Power Consumption Average Power Consumption: 12W@24VDC (not connected to external fill light) 42W@24VDC (connected to external fill light) Max. Power Consumption: 18W@24VDC (not connected to external fill light) 48W@24VDC (connected to external fill light)
Mechanical
Lens Mount C-Mount
Lens Cover Transparent Lens Cover
Light Source Without Light Source
Dimensions 116.3mm × 68.6mm × 101.8mm
Indicator Power Supply IndicatorPWR, Network IndicatorLNK, Status IndicatorSTS, User IndicatorU1/U2
IP Rating IP67 (with proper Lenses waterproof cover installed)
Weight 530g
Temperature Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity 20% ~ 95%RH No condensation
Vibration Resistance Bare metal meets IEC 60068-2-6:2007 (10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance Bare metal meets IEC 60068-2-27:2008(30 g/11 ms, half sine wave, 6 axes, 500 shocks in each axis, A total of 3000 shocks)1
Additional Information
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
