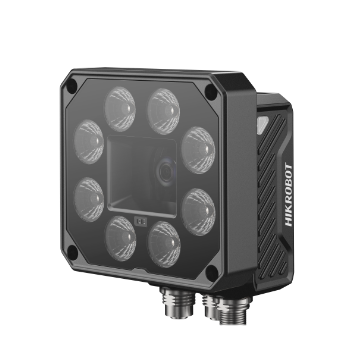

HIKROBOT SC6000 Series Smart Cameras

MV-SC6016M-16M-XBN

1408 × 1024, Black and white

Consulting quotation
MV-SC6016M-16M-XBN

Product introduction

Functional characteristics

  • Embedded AI deep learning algorithm, can realize character recognition, object recognition, defect detection and other functions

  • Integrated VM algorithm PlatformSoftware, can freely use 140+ algorithm functions

  • Supports red/green/blue/white four-color Light Source, can be freely switched according to needs

  • Rich IOInterface, can access multiple input and output signals

  • Support multiple industrial Communication Protocols, worry-free docking

  • Rich status Indicator, can grasp the status of the device in real time, Convenient debugging and maintenance

  • IP67 protection, without fear of harsh industrial application environments



Ordering Model

MV-SC6016M-16M-XBN


Dimensions


* The data involved in the product may cause differences due to environmental and other factors. The company will not bear the consequences of this.

Ordering Model

MV-SC6016M-16M-XBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

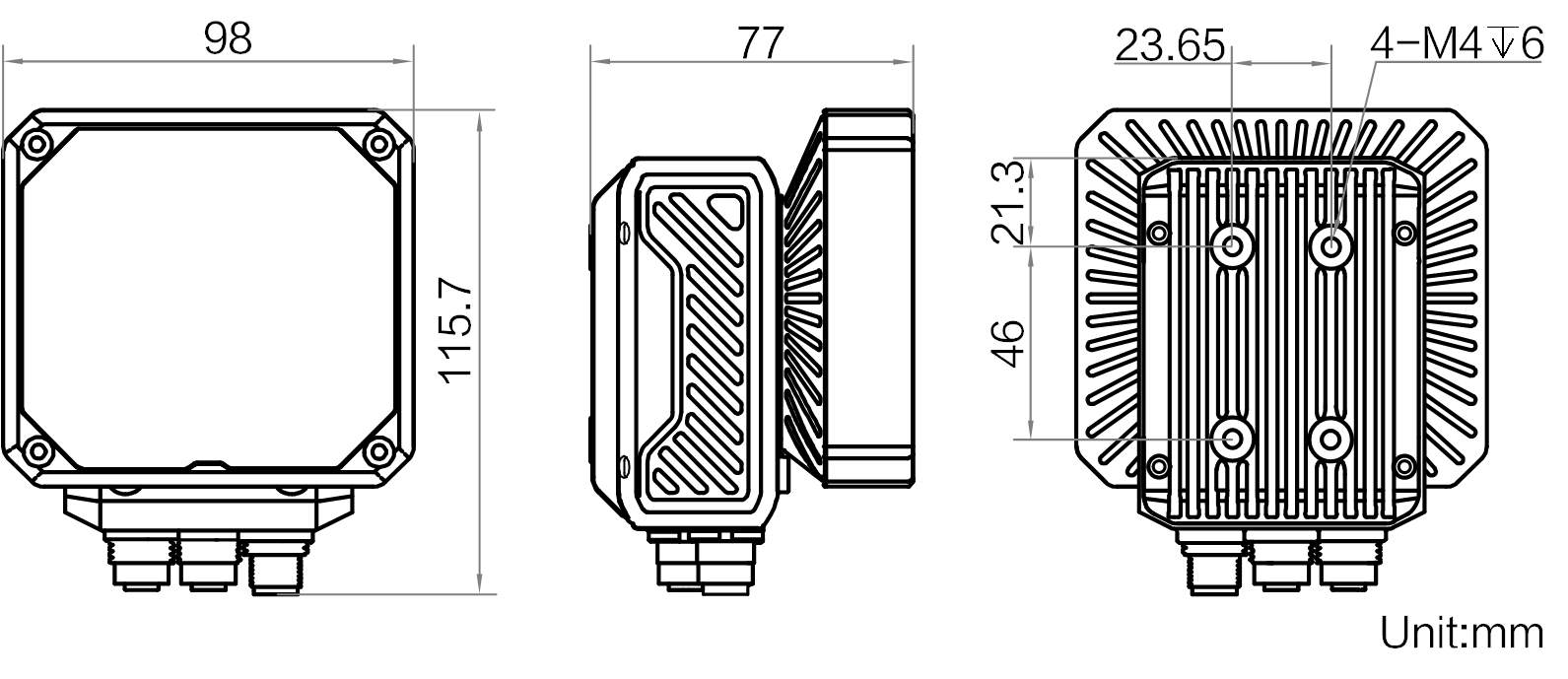

Dimensions

Overall size

Detailed parameters

Ordering Model MV-SC6016M-16M-XBN
Model
Model MV-SC6016M-16M-XBN
Name SC6000Smart Cameras, 1.6MP, black and white, 16mmLenses, comes with multi-color Light Source
Tools
Function Modules Vision Master Algorithm Development Platform (Including deep learning modules)
Communication Protocol TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Camera
Sensor Type CMOS, global shutter
Pixel Size 3.45 μm×3.45 μm
Optical Format 1/2.9''
Resolution 1408 × 1024
Max. Acquisition Frame Rate 120 fps
Gain 0 dB ~ 15 dB
Exposure Time 25 μs~30000 μs
Pixel Format Mono 8
Mono/Color black and white
Platform
Memory 8 GB
Storage 64 GB
Electrical
Data Interface Gigabit Ethernet(1000Mbit/s)
Digital I/O 17-pin M12Interface, supporting 2 optocoupler isolated inputs (Line 0/1), 2 optocoupler isolated outputs (Line 4/5), 2 non-isolated configurable inputs and outputs (line 2/3), 1 RS-232, 1 Light Source output (maximum support of 30W)
Expansion Interface 1 VGA,1 USB host
Power Supply 24 VDC
Power Consumption External fill light or multi-color fill light cannot be used at the same time Average Power Consumption: 12W@24VDC (no external fill light and no multi-color fill light is enabled) 42W@24VDC (connected to external fill light) 16.6 W@24VDC (enable multi-color fill light) Max. Power Consumption: 18W@24VDC (no external fill light and no multi-color fill light is enabled) 48 W@24 VDC (Connect external fill light or enable multi-color fill light)
Mechanical
Lens Mount M12-Mount, mechanical focus
Focal Length 16 mm
Light Source Red/green/blue/white Four-color Light Source (Software switching supported)
Indicator Power IndicatorPWR, Network IndicatorLNK, Status IndicatorSTS, User IndicatorU1/U2
Dimensions 77 mm × 98 mm × 115.7 mm
Weight Approx. 750g
IP Rating IP67
Temperature Operating Temperature0~50°C, Storage Temperature-30 ~70 °C
Humidity 20% ~ 95%RH Non-condensing
Vibration Resistance Bare metal meets IEC 60068-2-6:2007(10 to 55 Hz, full amplitude 1.5 mm, 2 hours in X, Y, Z directions)
Shock Resistance Bare metal meets IEC 60068-2-27:2008(30 g/11 ms, half sine wave, 6 axial directions, 500 shocks in each axial direction, A total of 3000 shocks)
Additional Information
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
