HIKROBOT SC6000 Series Smart Cameras

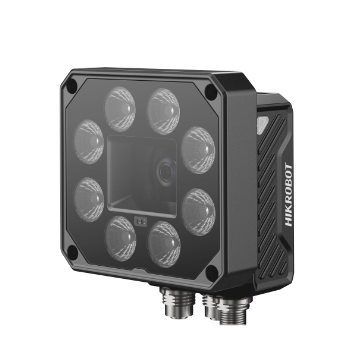

MV-SC6050C-16M-XBN

2432 × 2048, Color

Consulting quotation
MV-SC6050C-16M-XBN

Product introduction

Functional characteristics

  • Embedded AI deep learning algorithm, can realize character recognition, object recognition, defect detection and other functions

  • Integrated VM algorithm PlatformSoftware, can freely use 140+ algorithm functions

  • Supports red/green/blue/white four-color Light Source, can be freely switched according to needs

  • Rich IOInterface, can access multiple input and output signals

  • Support multiple industrial Communication Protocols, worry-free docking

  • Rich status Indicator, can grasp the status of the device in real time, Convenient debugging and maintenance

  • IP67 protection, without fear of harsh industrial application environments



Ordering Model

MV-SC6050C-16M-XBN


Dimensions


* The data involved in the product may cause differences due to environmental and other factors. The company will not bear the consequences of this.

Ordering Model

MV-SC6050C-16M-XBN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

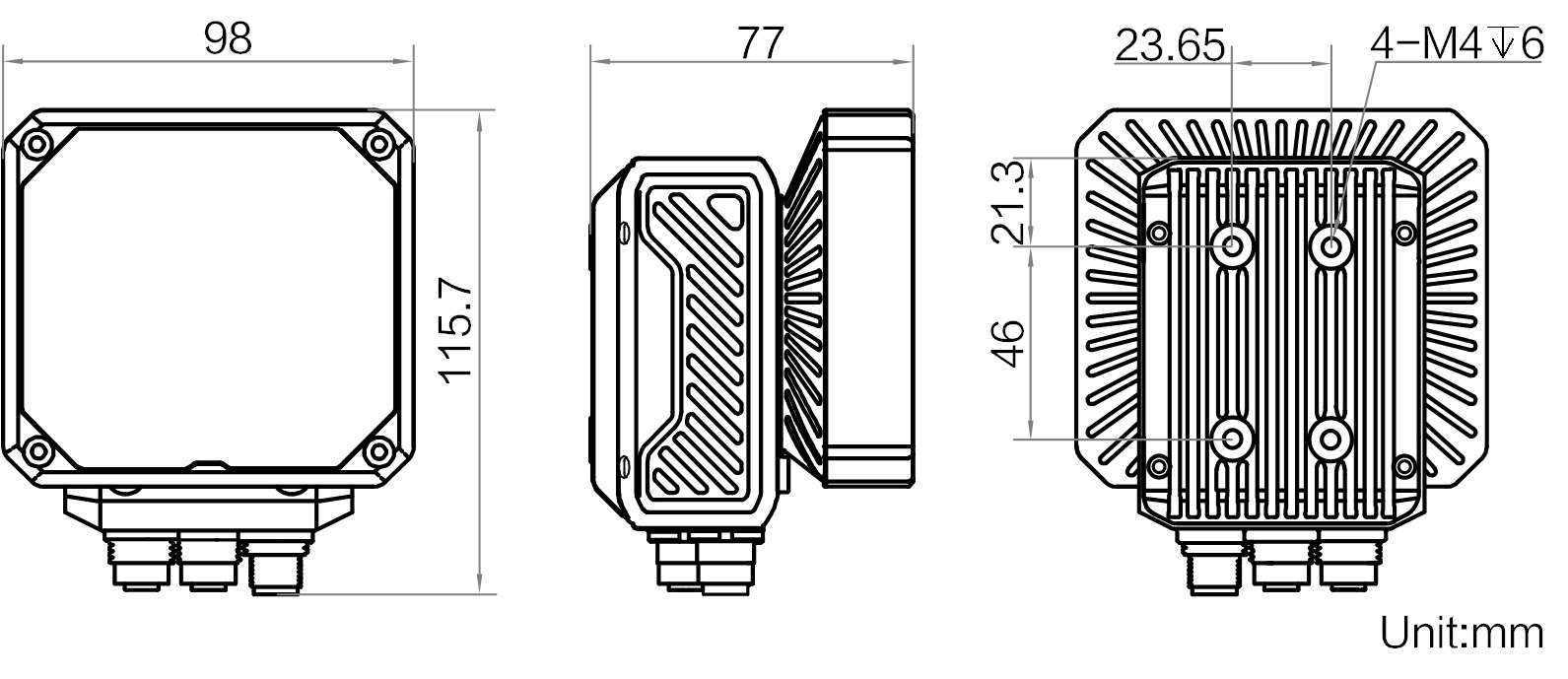

Dimensions

Overall size

Detailed parameters

Ordering Model MV-SC6050C-16M-XBN
Model
Model MV-SC6050C-16M-XBN
Name SC6000Smart Cameras, 5MP, color, 16mmLenses, comes with multicolored Light Source
Tools
Function Modules Vision Master Algorithm Development Platform (Including deep learning modules)
Communication Protocol TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Camera
Sensor Type CMOS, global shutter
Pixel Size 3.45 μm×3.45 μm
Optical Format 1/1.45"
Resolution 2432 × 2048
Max. Acquisition Frame Rate 80 fps
Gain 0 dB ~ 18 dB
Exposure Time 16 μs ~ 1 sec
Pixel Format Mono8,RGB8
Mono/Color color
Platform
Memory 8 GB
Storage 64 GB
Electrical
Data Interface Gigabit Ethernet(1000Mbit/s)
Digital I/O 17-pin M12Interface, supports 2 optocoupler isolated inputs (Line 0/1), 2 optocoupler isolated outputs (Line 4/5), 2 non-isolated configurable inputs and outputs (line 2/3), 1 RS-232, 1 Light Source output (maximum support of 30W)
Expansion Interface 1 VGA,1 USB host
Power Supply 24 VDC
Power Consumption External fill light or multi-color fill light cannot be used at the same time Average Power Consumption: 12W@24VDC (no external fill light and no multi-color fill light is enabled) 42W@24VDC (connected to external fill light) 16.6 W@24VDC (enable multi-color fill light) Max. Power Consumption: 18W@24VDC (no external fill light and no multi-color fill light is enabled) 48 W@24 VDC (Connect external fill light or enable multi-color fill light)
Mechanical
Lens Mount M12-Mount
Focal Length 16 mm
Light Source Red/green/blue/white four-color Light Source (Software switching is supported)
Indicator Power Supply Indicator PWR, Network Indicator LNK, Status Indicator STS, User Indicator U1/U2
Dimensions 77 mm × 98 mm × 115.7 mm
Weight Approximately 750g
IP Rating IP67
Temperature Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity 20% ~ 95%RH No condensation
Vibration Resistance Bare metal meets IEC 60068-2-6:2007 (10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance Bare metal meets IEC 60068-2-27:2008(30 g/11 ms, half sine wave, 6 axes, 500 shocks in each axis, A total of 3000 shocks)
Additional Information
Certification CE,KC

Data download

Product manual· SDK ·Development documentation
