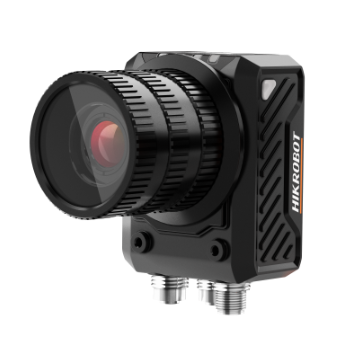

Name: HIKROBOT SC6000 Series Smart Cameras
Brand: HIKROBOT
SKU: MV-SC6016M-06M-XBN
Availability: InStock

Product introduction

Functional characteristics

Embedded AI deep learning algorithms can realize character recognition, object recognition, defect detection and other functions
Integrated VM algorithm PlatformSoftware, allowing free use of 140+ algorithm functions
Rich Interface extensions, supports multi-channel IO, supports
High Performance Processors such as direct drive Light Source and display, with faster computing Performance and more efficient processing
Support multiple industrial Communication Protocols, worry-free docking
Rich status Indicator, allowing real-time monitoring of device status, Convenient debugging and maintenance
IP67 protection, without fear of harsh industrial application environments

Ordering Model

MV-SC6120C-00C-NNN

Dimensions

* The data involved in the product may cause differences due to environmental and other factors. The company will not bear the consequences of this.

MV-SC6120C-00C-NNN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-SC6120C-00C-NNN

Model

Model	MV-SC6120C-00C-NNN
Name	SC6000Smart Cameras, 12MP, color, C-port, without LensesLight Source

Tools

Function Modules	Vision Master Algorithm Development Platform (Including deep learning modules)
Communication Protocol	TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.

Camera

Platform

Memory	16 GB
Storage	64 GB

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	17-pin M12Interface, supports 2 optocoupler isolated inputs (Line 0/1), 2 optocoupler isolated outputs (Line 4/5), 2 non-isolated configurable inputs and outputs (line 2/3), 1 RS-232, 1 Light Source output (maximum support of 30 W)
Expansion Interface	1 VGA,1 USB host
Power Supply	24 VDC
Power Consumption	Average Power Consumption: 12.5 W@24VDC (not connected to external fill light) 42.5 W@24VDC (connected to external fill light) Max. Power Consumption: 18W@24VDC (not connected to external fill light) 48W@24VDC (connected to external fill light)

Mechanical

Lens Mount	C-Mount
Lens Cover	Clear Lens Cover
Light Source	Without Light Source
Indicator	Power Supply IndicatorPWR, Network IndicatorLNK, Status IndicatorSTS, User IndicatorU1/U2
Dimensions	116.3 mm × 68.6 mm × 101.8 mm
Weight	Approximately 530g
IP Rating	IP67 (with proper Lenses waterproof cover installed)
Temperature	Operating Temperature0 ~ 50°C, Storage Temperature-30 ~ 70°C
Humidity	20% ~ 95%RH No condensation
Vibration Resistance	Bare metal meets IEC 60068-2-6:2007(10 to 55 Hz, full amplitude 1.5 mm, 2 hours in each direction X, Y, and Z)
Shock Resistance	Bare metal meets IEC60068 -2-27:2008(30 g/11 ms, half sine wave, 6 axes, 500 shocks per axis, a total of 3000 shocks)1
