Name: HIKROBOT SVA2000 Series
Brand: HIKROBOT
SKU: MV-SVA2506-08C20-NN
Availability: InStock

MV-SVA2506-16G50-NN

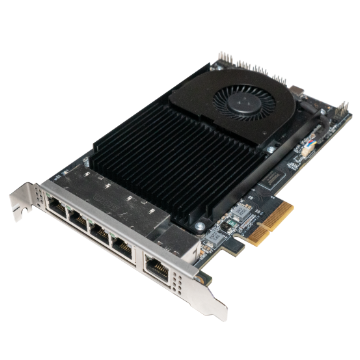

The SVA2000 Series intelligent vision processing card is developed based on a high-performance embedded processing chip and has powerful computing Performance. It is connected to Industrial PCs through a PCIE slot and cooperates with a VM algorithm development Platform. It can easily meet the needs of vision inspection and quickly complete the construction of a vision system.

Product introduction

Functional characteristics

8-core Processor, with powerful computing Performance
Integrated embedded VM algorithm Platform, rich functions, stable operation
Integrated multiple network ports, can connect network ports Industrial Cameras, PLC and other devices
Comes with 8 configurable inputs and outputs to meet vision inspection needs
Support secondary development through the VM algorithm Platform, more flexible use
Low Power Consumption, low load, Cost reduction and efficiency increase

Order Model

MV-SVA2506-16G50-NN

Dimensions

* The data involved in the product may have differences due to environmental factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-SVA2506-16G50-NN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-SVA2506-16G50-NN

Model

Model	MV-SVA2506-16G50-NN
Name	1 Communication network port, 4Camera network port, 16GMemory, support traditional algorithms, fan cooling;

Tools

Function Modules	VisionMaster Algorithm Platform (excluding deep learning modules)
Communication Protocol	TCP,UDP,ModBus,Serial,Profinet,EtherNet/IP,Fins,MC,FTP, etc.

Performance

Processor	8-core ARM
Memory	16 GB
eMMC	64 GB

Host Interface

Bus Interface	PCI-E gen3 × 2
Bus Interface Performance	Maximum rate per Lane 10Gpbs

External Interfaces

Digital I/O	8 configurable inputs and outputs, compatible with single-ended/differential
Network Interface	4 Gigabit ports (can be used to connect to Camera, non-POE) 1 Gigabit communication network port (can be used to connect communication equipment such as PLC)
Serial Port	1 RS-232

Electrical

Typical Power Consumption	14 W
Power Supply	12 VDC

Mechanical

Dimensions	181 mm × 126.3 mm × 21.6 mm
Weight	260 g
Temperature	Operating Temperature 0 °C ~50 °C, Storage Temperature-30°C ~ 70°C
Humidity	20%~80% RH Non-condensing
