Name: HIKROBOT SVA2000 Series
Brand: HIKROBOT
SKU: MV-SVA2506-08C20-NN
Availability: InStock

MV-SVA2509-16C20-NN

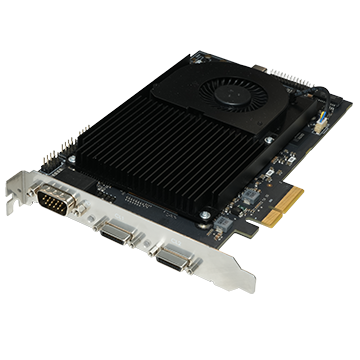

The SVA2000 Series intelligent vision processing card is developed based on a high-performance embedded processing chip and has powerful computing Performance. It is connected to Industrial PCs through a PCIE slot and cooperates with a VM algorithm development Platform. It can easily meet the needs of vision inspection and quickly complete the construction of a vision system.

Product introduction

Functional characteristics

8-core Processor, with powerful computing Performance
Integrated embedded VM algorithm Platform, rich functions, stable operation
Integrated multiple Camera Link Interfaces, can be connected to the Camera Link port Industrial Cameras
Comes with multiple configurable inputs and outputs to meet vision inspection needs
Support secondary development through the VM algorithm Platform, more flexible use
Low Power Consumption, low load, Cost reduction and efficiency increase

Order Model

MV-SVA2509-16C20-NN

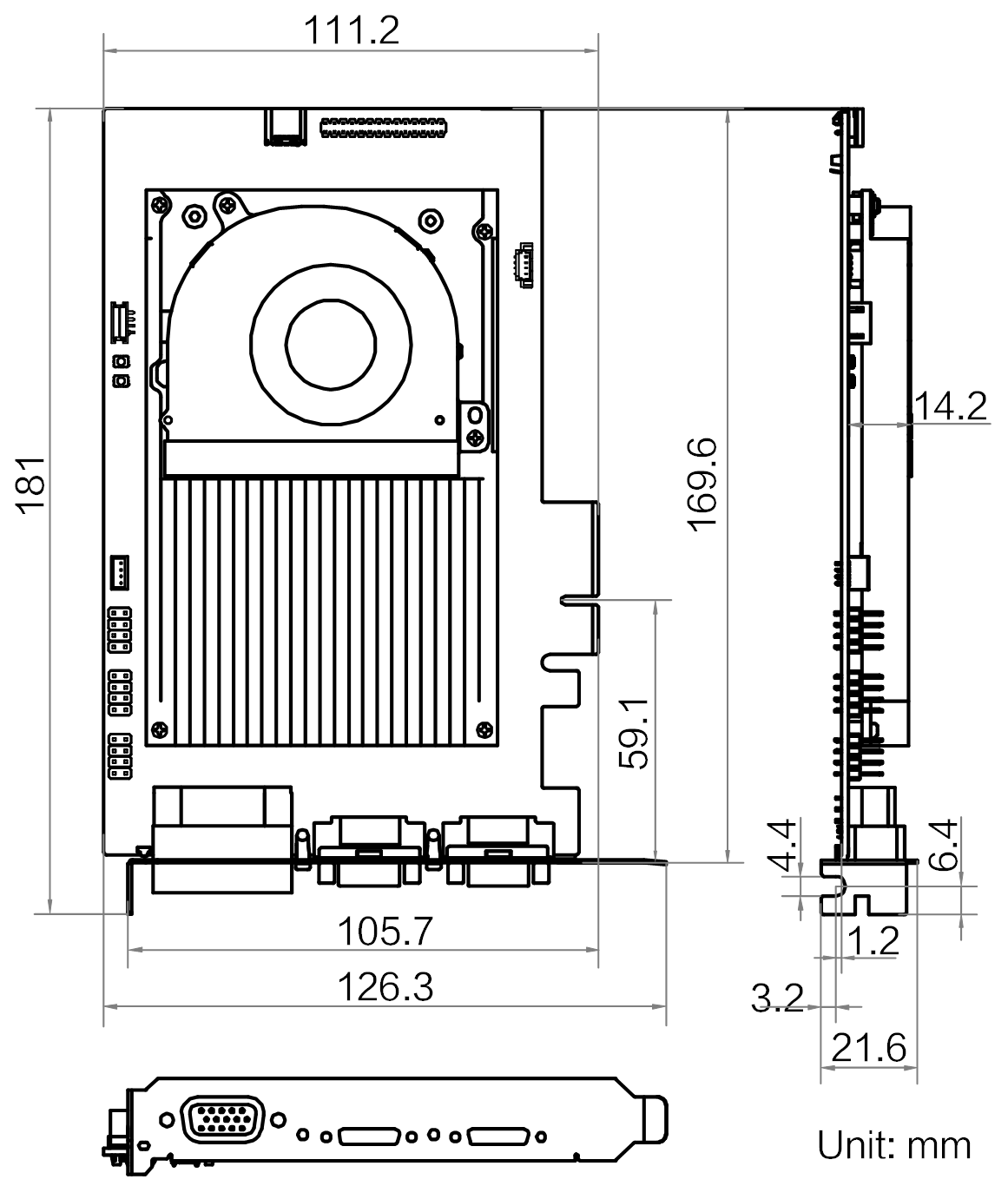

Dimensions

* The data involved in the product may have differences due to environmental factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-SVA2509-16C20-NN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

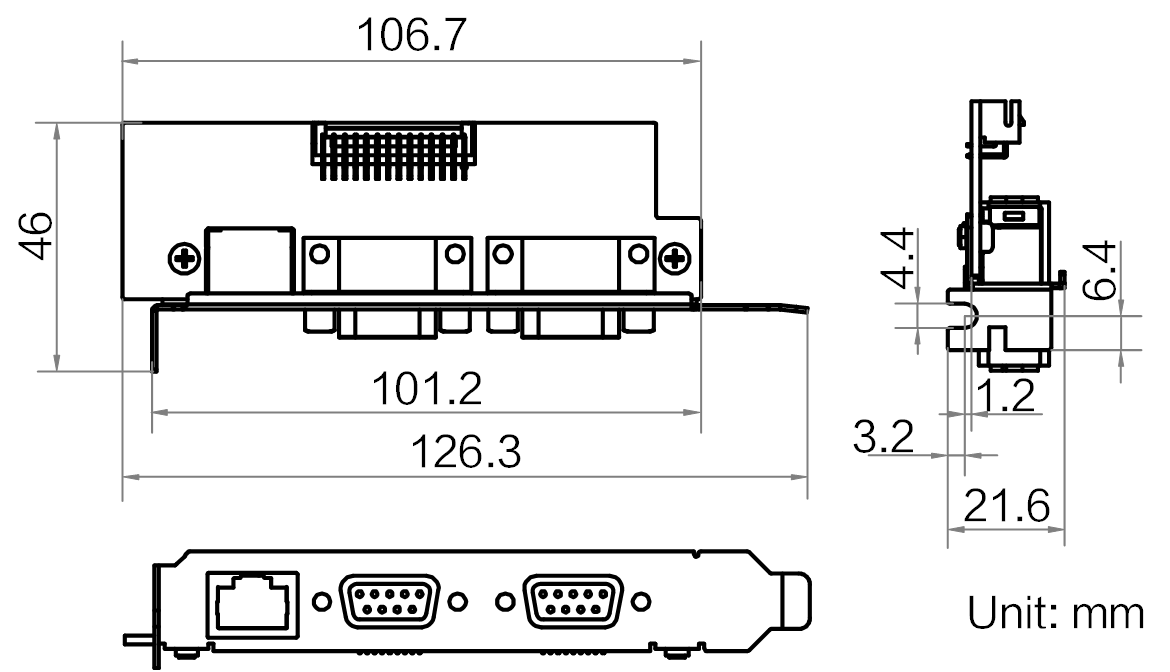

Dimensions

Detailed parameters

Ordering Model MV-SVA2509-16C20-NN

Model

Model	MV-SVA2509-16C20-NN
Name	2CMLInterface, 16 G Memory, supports full functions of deep learning, fan cooling;

Tools

Function Modules	VisionMaster Algorithm Platform(including deep learning module)
Communication Protocol	TCP,UDP,ModBus,Serial,Profinet,EtherNet/IP,Fins,MC,FTP, etc.

Performance

Processor	8-core ARM
Memory	16 GB
eMMC	64 GB
Pixel Clock	20 ~ 85 MHz

Host Interface

Bus Interface	PCI-E gen3 × 2
Bus Interface Performance	1720 MB/s(peak transmission bandwidth), 1600 MB/s(persistent transmission bandwidth)
Bus Indicator	of 1

Camera Interface

Standard	Camera Link 2.1
Connector	2 × SDR
Power output	PoCL, single channel can provide up to 4W@12VDC
Supported Camera Type	Camera LinkInterfaceIndustrial Cameras
Supported Camera Quantity	up to 2
Camera Interface Rate	6.8 Gbps
Flow Channel	of 2
Channel Indicator	of 2

Expansion Interface

Network Interface	1 Gigabit Internet port
Serial Port	1 RS-232 Interface

Electrical

Digital I/O	11 configurable inputs and outputs, single-ended/differential compatible
Power Supply	12 VDC
Typical Power Consumption	15.6 W(excluding PoCL)

Mechanical

Dimensions	Main card:181 mm × 126.3 mm × 21.6 mm Expansion board:46 mm × 126.3 mm × 21.6 mm
Weight	Main card:250 g Expansion board: approximately 50 g
Temperature	Operating Temperature 0 °C ~50 °C, Storage Temperature-30°C ~ 70°C
Humidity	20%~80% RH non-condensing
