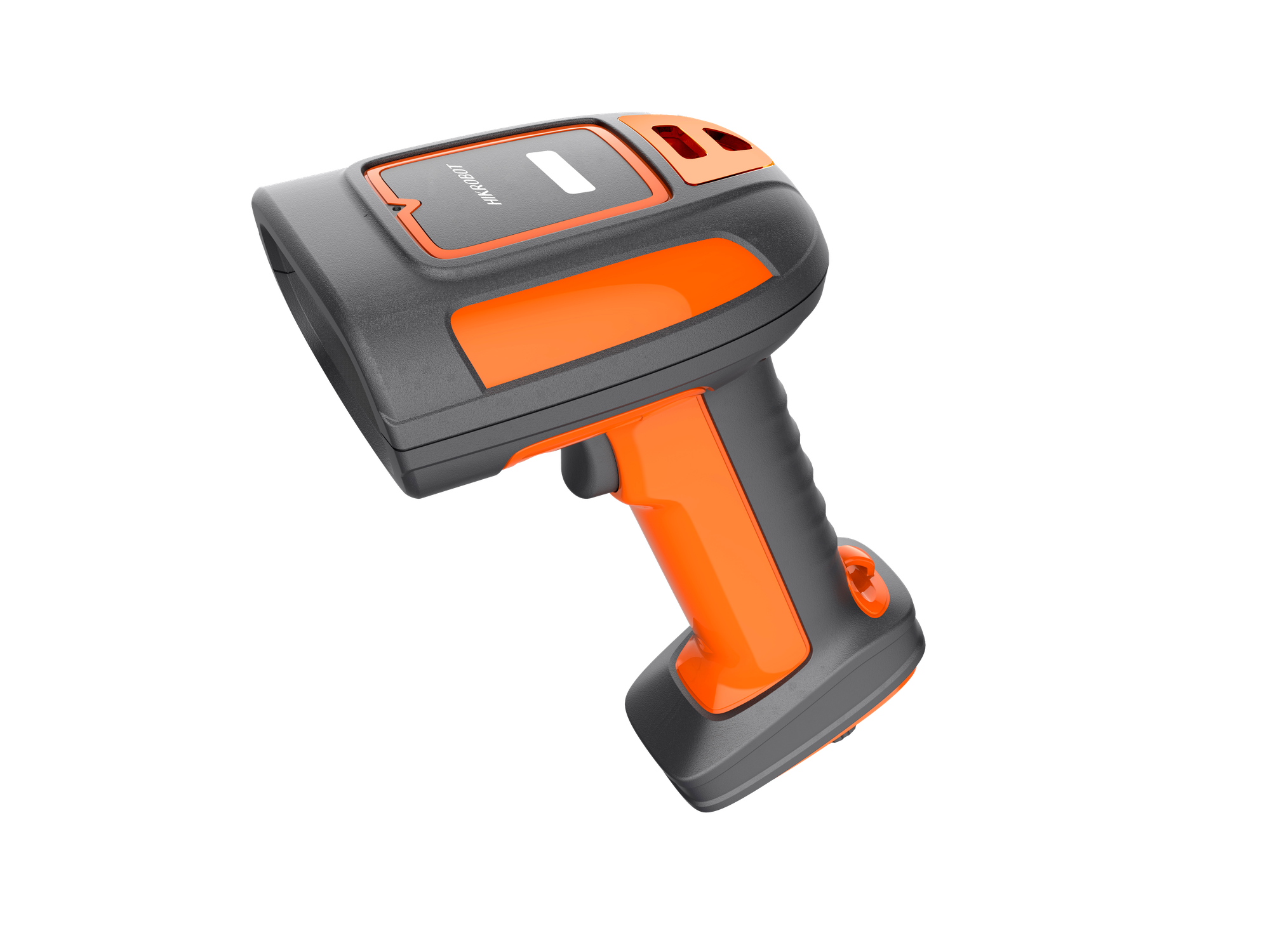

Name: HIKROBOT IDH7000 Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH7000B/10SR/07RN
Availability: InStock

Product introduction

Functional characteristics

Adopt a self-developed high-performance barcode recognition algorithm with excellent DPM code reading capabilities
The algorithm is highly robust and can effectively deal with dirty, defective, and low contrast situations of barcode
Adopt Bluetooth 5.0 wireless technology supports stable connections up to 100 meters in open environments, getting rid of the shackles of Cables; It also supports Bluetooth connection to mobile phones, tablets and other Mobile device, making the operation more efficient and convenient.
By using the smart Mounting Base, IDMVS can be connected to parameter configuration and device management.
3150mAh capacity battery ensures long-term battery life.
Supports IP65 protection and multiple falls at a height of 2.0 meters, and is not afraid of harsh industrial application environments.
It has a special Model for high-density and long-distance bar code reading, which is suitable for multi-dimensional industrial scenario applications.

Ordering Model

MV-IDH7000B/10ER/12RN/US

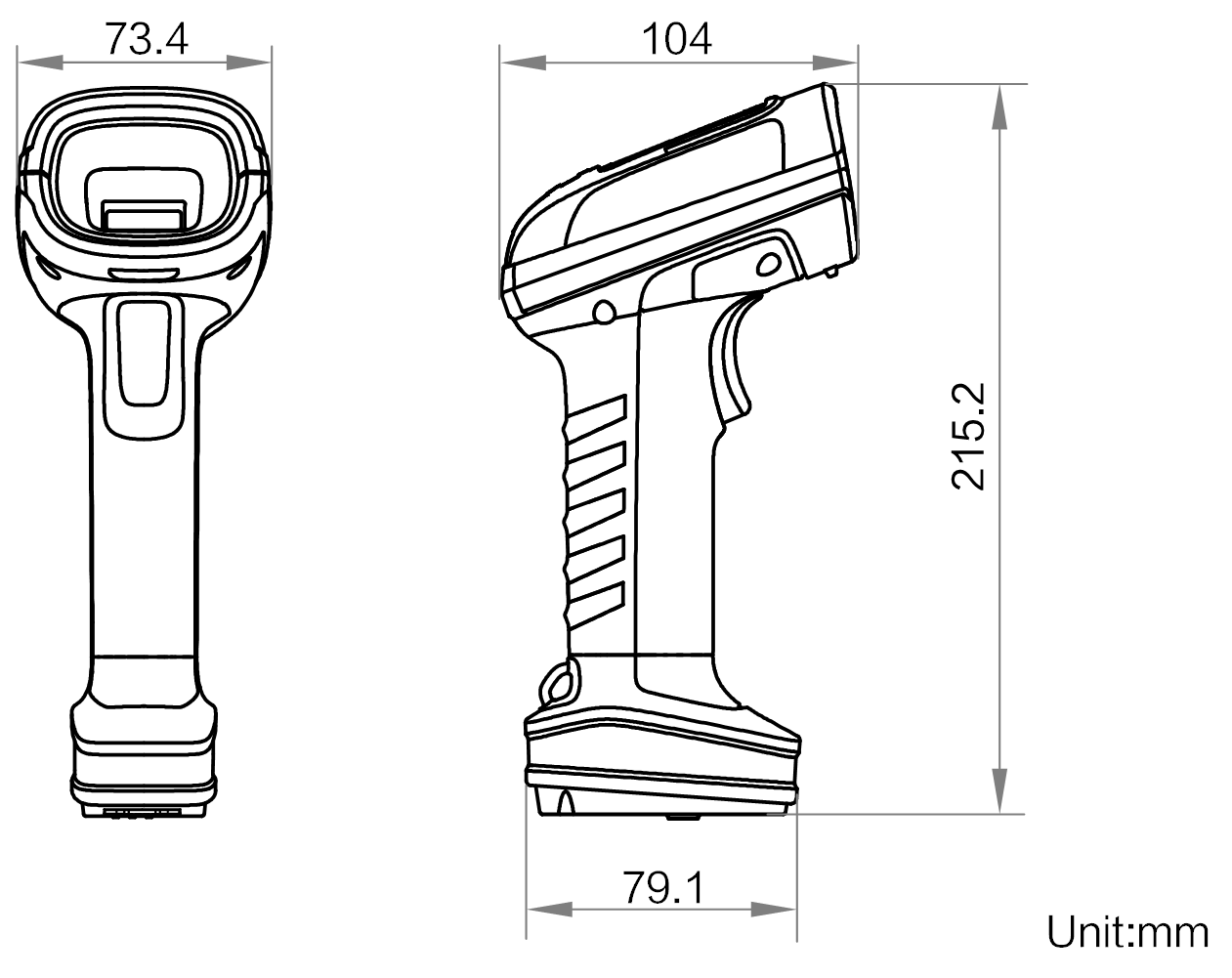

Dimensions

* The data involved in the product may cause differences and due to environmental factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IDH7000B/10ER/12RN/US

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IDH7000B/10ER/12RN/US

Model

Model	MV-IDH7000B/10ER/12RN/US
Name	Durable long-distance wireless Handheld Code Readers U-port pack

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,GS1- Code128,CodaBar,EAN8,EAN13,ISBN,ISSN,ITF25,ITF14,UPCA,UPCE Matrix QR Code:QR Code,Data Matrix,MicroQR,Aztec,Han Xin Stacking QR Code:PDF417
Min. Barcode Resolution	10 mil
Sensor Type	CMOS
Resolution	1280 × 800
Depth of Field	Code 39(10mil):540 mm ~1200 mm Code 39(20 mil):* ~ 2100 mm Code 39(50 mil):* ~ 3900 mm Code 39(100 mil):* ~ 6400 mm Code 128(10 mil):600 mm ~ 1000 mm Code 128(20 mil):* ~ 2100 mm Code 128(100 mil):* ~ 6400 mm Data Matrix(50 mil):200 mm ~ 3600 mm QR Code(20 mil):600 mm ~ 1500 mm QR Code(33 mil)300 mm ~ 2400 mm QR Code(100 mil):* ~ 6400 mm
Field of View Angle	18° (H) × 10° (V)
Inspection Angle	Tilt angle ±60°, tilt angle ±60°, rotation angle 360°
Symbol Contrast	20 %

Wireless Communication

Communication Method	Bluetooth BT 5.0, BLE
Wireless Range	100m(open area)

Electrical

Battery Capacity	3150 mAh
Charging Time	In shutdown mode:USB3.0(5 V,1 A):4 h;DC12 V(12 V,2 A):3.5 h
Battery Life	13 hours (scan code at intervals, every 2s)

Mechanical

Ambient Light	0 ~ 100000 lux
Light Source	Supports 2 types of Light Sources: diffuse Light Source(red light) and direct Light Source(white light)
Aimer	spot laser aiming
Notification Method	LEDIndicator, buzzer, vibrator
Dimensions	73.4 mm × 104 mm × 215.2 mm
Weight	Approximately 410 g
IP Rating	IP65
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~ 60°C, Battery Charging Temperature0 ~ 40°C
Humidity	20% ~ 95%RH non-condensing
Drop Height	2.0 m

Laser Performance

Laser Safety Class	Class 2 laser product
Wavelength	650 nm
Pulse Width	8 ms
Max. Power	1 mW

General Specifications

Software	IDMVS
Certification	CE,KC

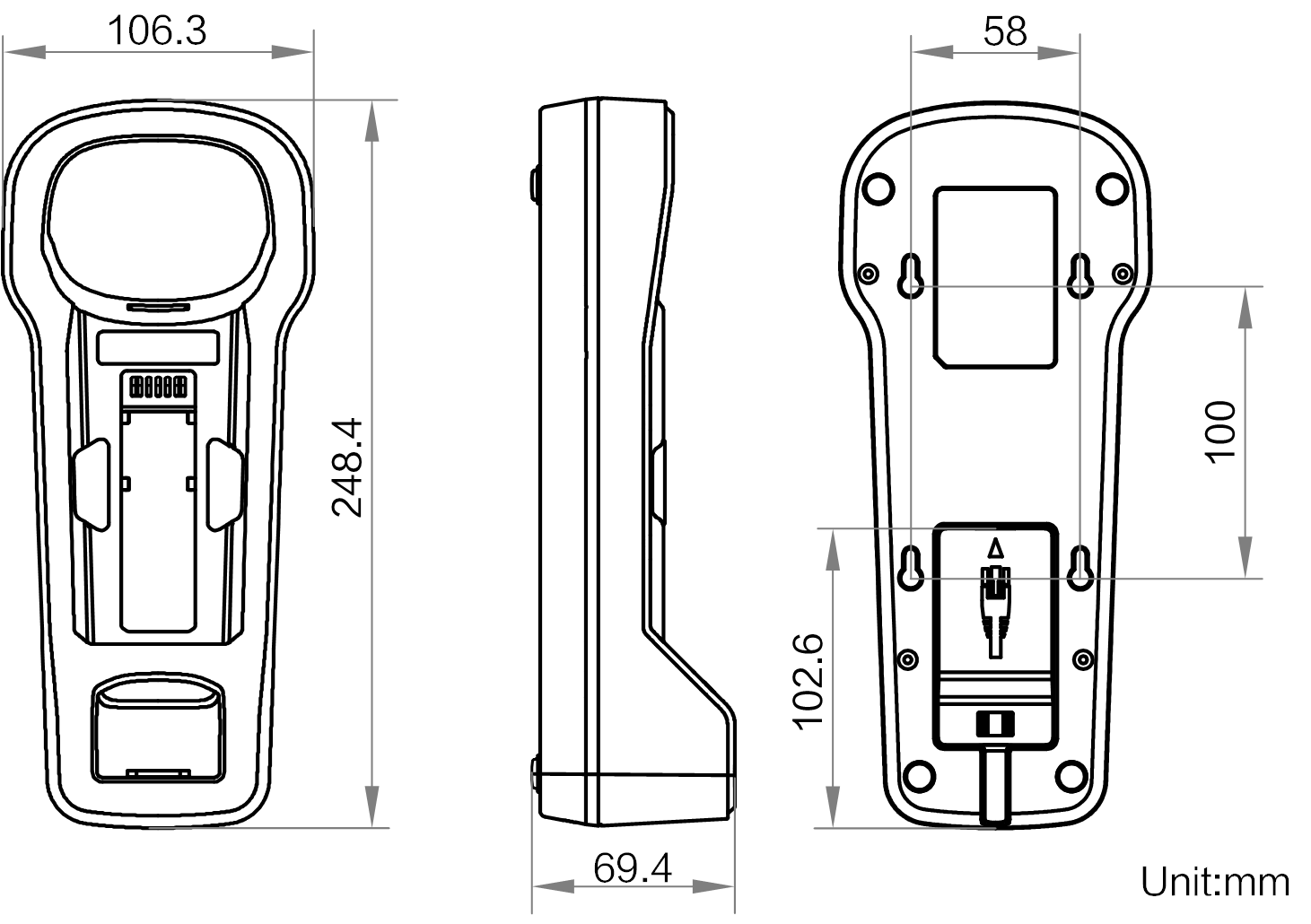

Mounting Base

Communication Protocol	SmartSDK,USB(HID/CDC),Bluetooth,Serial
Interface	USB 2.0, DC terminal 3
Charging Time	4 h(adapter charging);8 h(USB charging)
Power Supply	5 VDC(USB);12 VDC(DC terminal)
Current Consumption	USB 2.0:1.5 A(maximum current);0.14 A(standby current) DC terminal:0.7 A(maximum current);0.06 A(standby current)
Dimensions	248.4 mm × 106.3mm × 69.4 mm
Weight	Approximately 380 g
IP Rating	IP40
Humidity	20% ~ 95%RH non-condensing
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~60°C, Battery Charging Temperature0 ~ 40°C
