HIKROBOT IDH7000 Series Handheld Code Readers

MV-IDH7000B/SBASE/L

Name: HIKROBOT IDH7000 Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH7000B/10SR/07RN
Availability: InStock

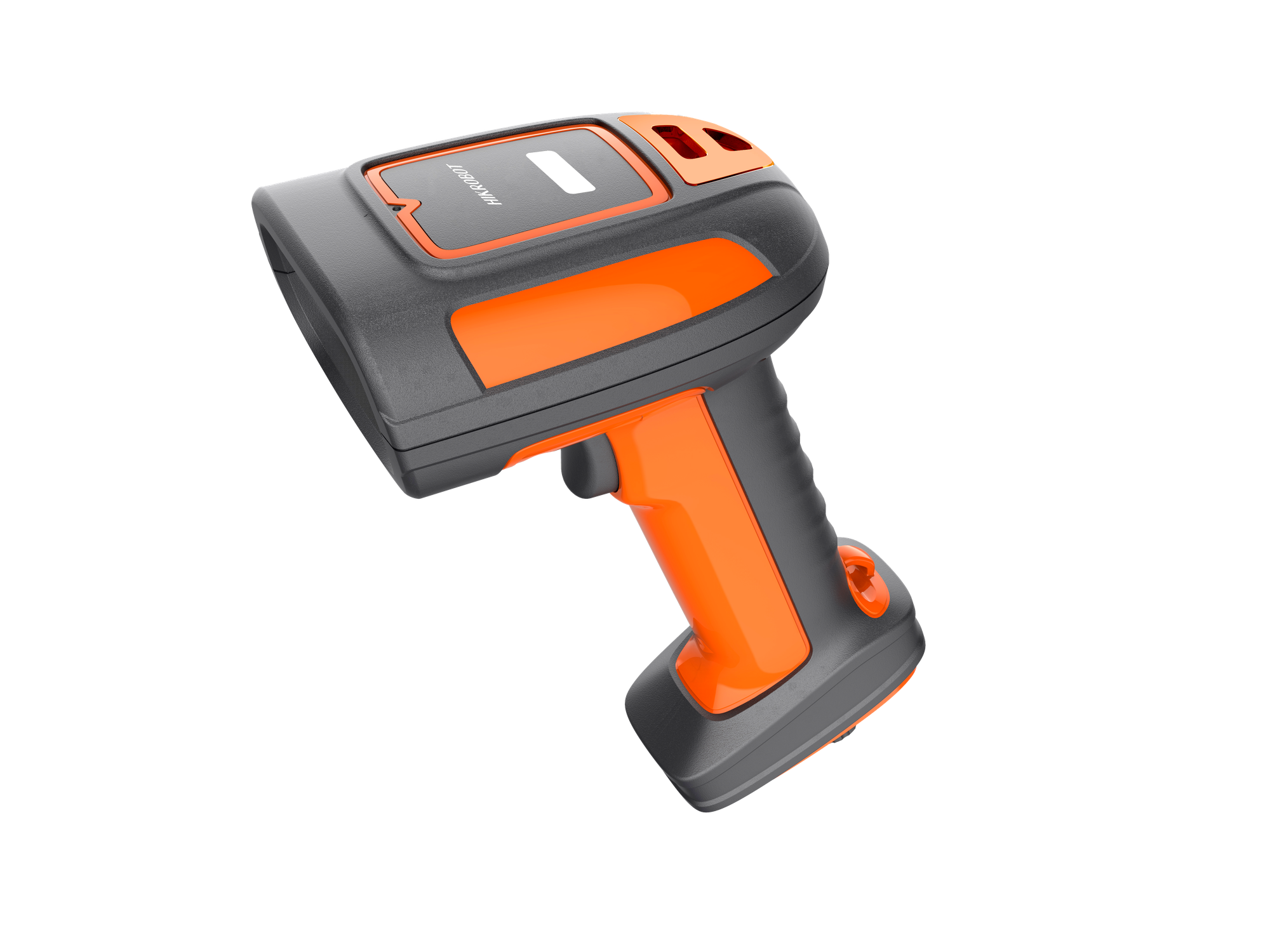

Durable Industrial Handheld Code Readers are high-performance Handheld Code Readers for industrial applications. It adopts a million-level high-sensitivity global exposure image Sensor; adopts a two-color rubber-coated design, and the product has a high drop level; and has a built-in AI deep learning algorithm, which is suitable for various difficult DPM. Suitable for different applications such as 3C, automotive parts, semiconductors, metal manufacturing, PCB, and glass panels.

Consulting quotation

Product introduction

Functional characteristics

Adopt Bluetooth 5.0 wireless technology for more efficient and lighter operation
Flexible charging method, supporting battery charging and device charging
Support IDMVS access, parameter configuration and device management
Support SmartSDK, TCP Client, FTP, TCP Server, Profinet, EthernetIP, Modbus, UDP, Serial, Bluetooth, FINS, Melsec/SLMPCommunication Protocol

Ordering Model

MV-IDH7000B/SBASE/L

Dimensions

* Product data may cause Differences , The company will not bear the consequences arising therefrom.

Ordering Model

MV-IDH7000B/SBASE/L

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

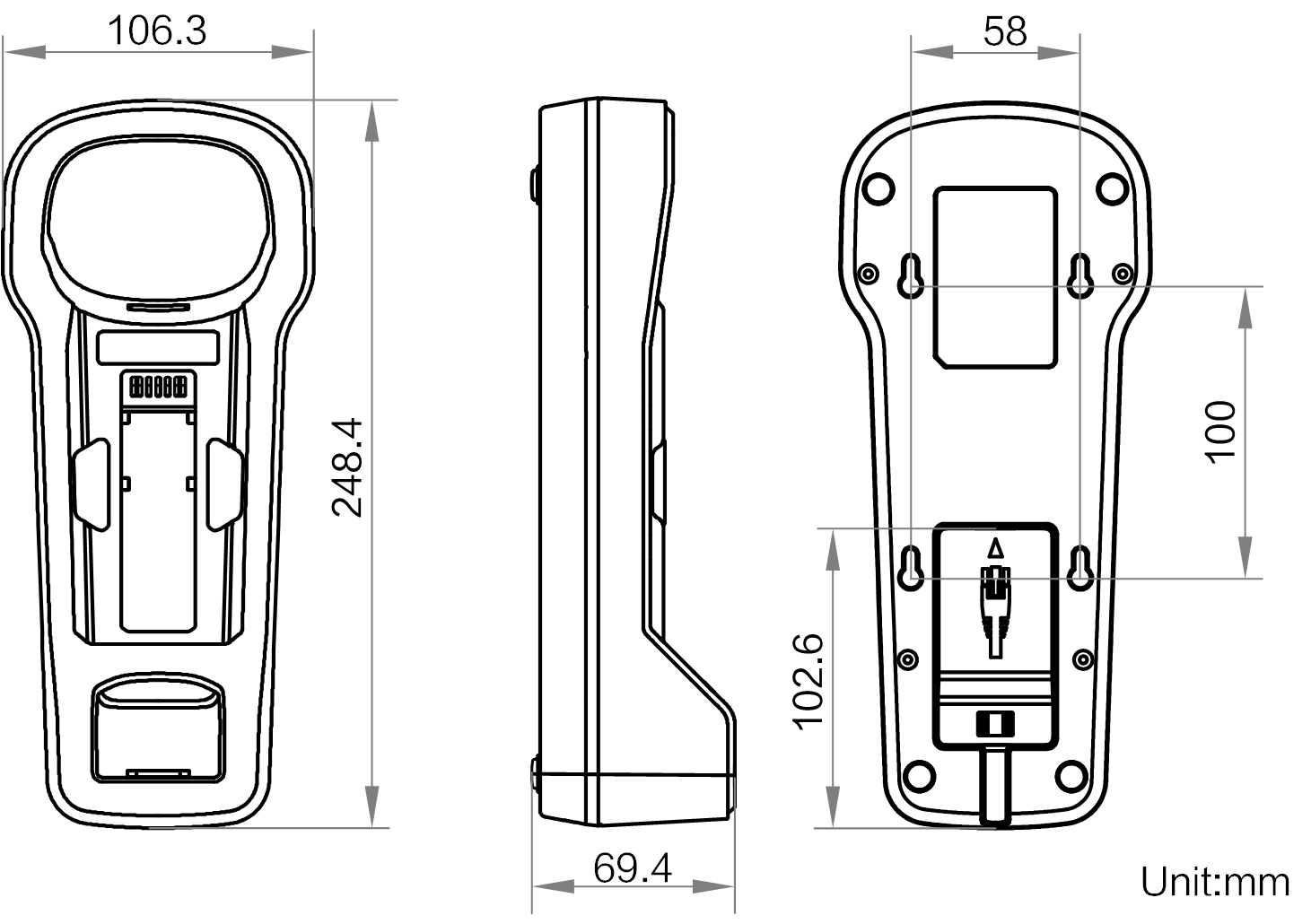

Dimensions

Detailed parameters

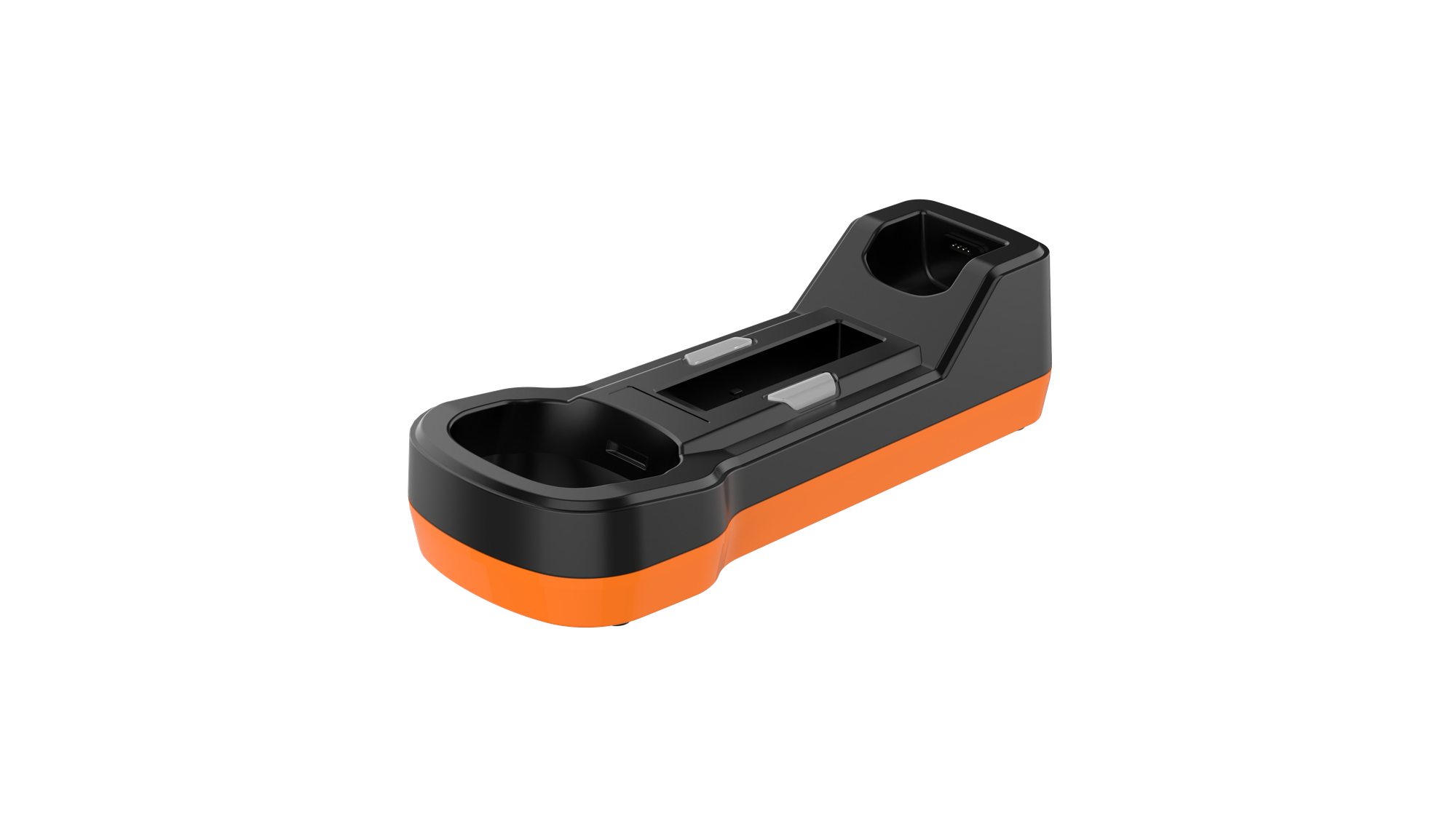

Ordering Model MV-IDH7000B/SBASE/L

Model

Model	MV-IDH7000B/SBASE/L
Name	H70 series intelligent Handheld Code ReadersMounting Base

Mounting Base

Communication Protocol	SmartSDK,TCP Client,FTP,TCP Server,Profinet,EthernetIP,Modbus,UDP,Serial,Bluetooth,FINS,Melsec/SLMP
Interface	Fast Ethernet (100 Mbit/s), RS-232,DC terminal
Power Supply	12 VDC
Current Consumption	0.7 A(maximum current); 0.06 A(standby current)
Charging Time	4 h
Dimensions	248.4 mm × 106.3mm × 69.4 mm
Weight	Approximately 380 g
IP Rating	IP40
Humidity	20% ~ 95%RH No condensation
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~60°C, Battery Charging Temperature0 ~ 40°C
