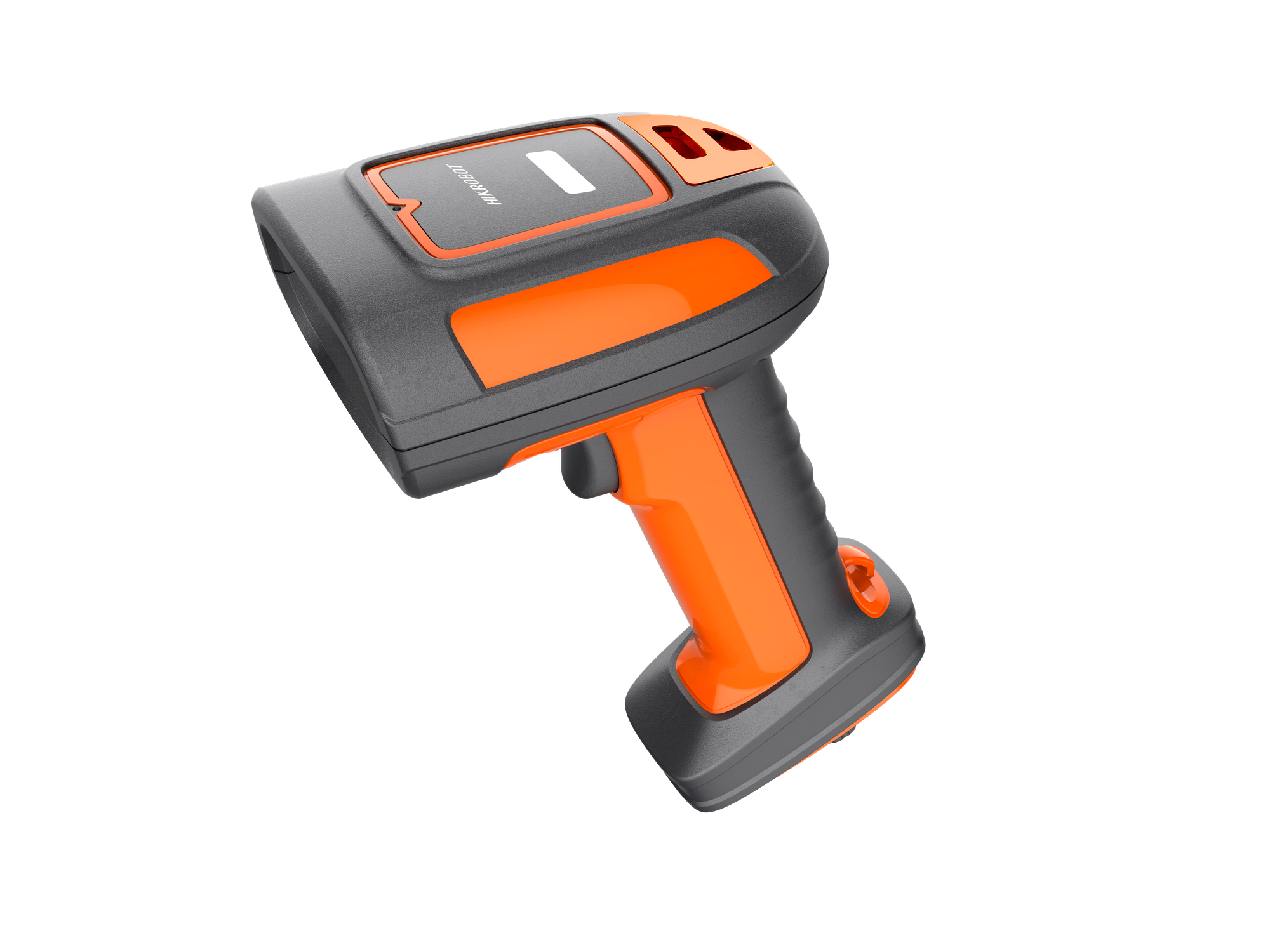

Name: HIKROBOT IDH7000 Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH7000B/10SR/07RN
Availability: InStock

Product introduction

Functional characteristics

Adopt a self-developed high-performance barcode recognition algorithm with excellent DPM code reading capabilities
The algorithm is highly robust and can effectively deal with dirty, defective, and low contrast situations of barcode
Adopt Bluetooth 5.0 wireless technology supports stable connections up to 100 meters in open environments, getting rid of the shackles of Cables; It also supports Bluetooth connection to mobile phones, tablets and other Mobile device, making the operation more efficient and convenient.
By using the smart Mounting Base, IDMVS can be connected to parameter configuration and device management.
3150mAh capacity battery ensures long-term battery life.
Supports IP65 protection and multiple falls at a height of 2.0 meters, and is not afraid of harsh industrial application environments.
It has a special Model for high-density and long-distance bar code reading, which is suitable for multi-dimensional industrial scenario applications.

Ordering Model

MV-IDH7000B/10NR/07RN

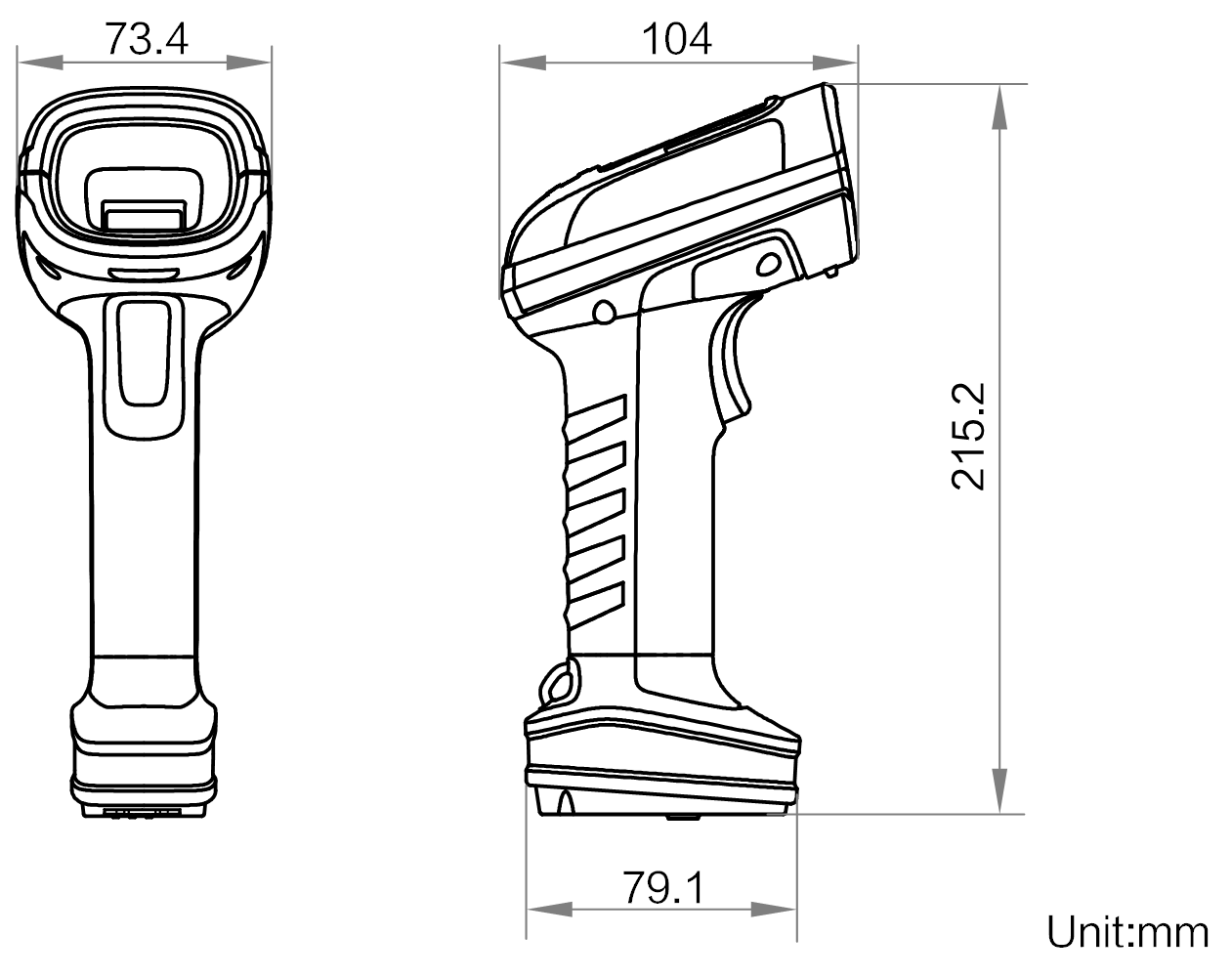

Dimensions

* The data involved in the product may cause differences and due to environmental factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IDH7000B/10NR/07RN

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

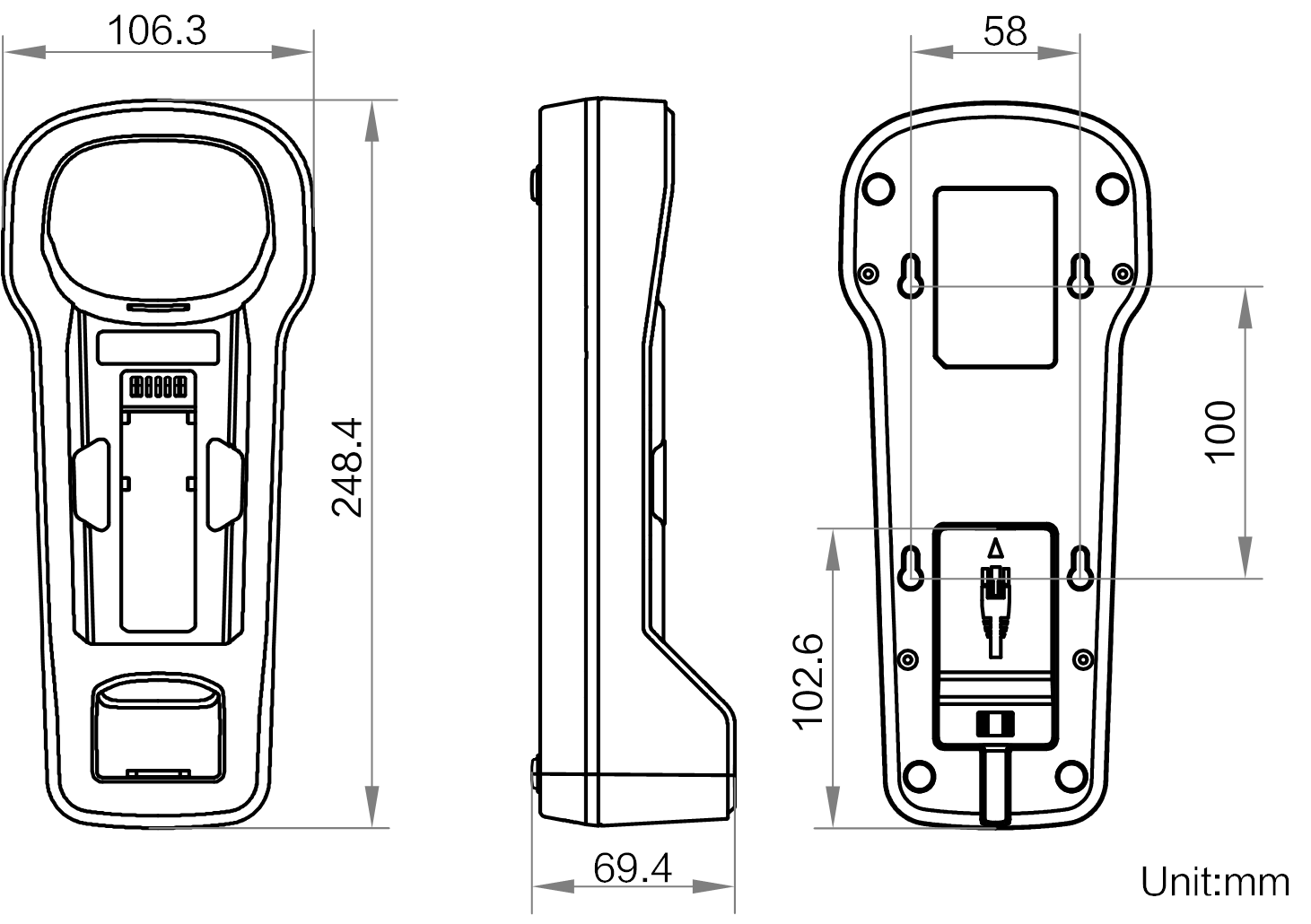

Dimensions

Detailed parameters

Ordering Model MV-IDH7000B/10NR/07RN

Model

Model	MV-IDH7000B/10NR/07RN
Name	1 million NR Wireless Industry Handheld Code Readers

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,GS1- Code128,CodaBar,EAN8,EAN13,ISBN,ISSN,ITF25,ITF14,UPCA,UPCE Matrix QR Code:QR Code,Data Matrix,MicroQR,Aztec,Han Xin Stacked QR code:PDF417
Min. Barcode Resolution	3 mil
Sensor Type	CMOS
Resolution	1280 × 800
Depth of Field	Code 39(3 mil):15 mm ~ 60 mm Code 39(5 mil):5 mm ~ 80 mm Data Matrix(5 mil):10 mm ~ 70 mm Data Matrix(10 mil):0 mm ~ 110 mm QR Code(5 mil):10 mm ~ 70 mm
Field of View Angle	31° (H) × 20° (V)
Inspection Angle	Tilt angle ±60°, tilt angle ±60°, rotation angle 360°
Symbol Contrast	20 %

Wireless Communication

Communication Method	Bluetooth BT 5.0, BLE
Wireless Range	100m(open range)

Electrical

Battery Capacity	3150 mAh
Charging Time	In shutdown mode:DC12 V(12V,2A):3.5 h
Battery Life	13 h (Scan the code at intervals, every 2s)

Mechanical

Ambient Light	0 ~ 100000 lux
Light Source	Support 2 Light Sources: Diffuse Light Source, Direct Light Source
Aimer	Cross laser aiming
Dimensions	73.4 mm × 104 mm × 215.2 mm
Notification Method	LEDIndicator, buzzer, vibrator
Weight	About 410 g
IP Rating	IP65
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~ 60°C, Battery charging Temperature0 ~ 40°C
Humidity	20% ~ 95%RH Non-condensing
Drop Height	2.0 m

Laser Performance

Laser Safety Class	Category 2 laser products
Wavelength	650 nm
Pulse Width	8 ms
Max. Power	1 mW

General Specifications

Software	IDMVS
Certification	CE,KC

Mounting Base

Communication Protocol	SmartSDK,TCP Client,FTP,TCP Server,Profinet,EthernetIP,Modbus,UDP,Serial,Bluetooth,FINS,Melsec/SLMP
Interface	Fast Ethernet (100 Mbit/s), RS-232,DC terminal
Charging Time	4 h
Power Supply	12 VDC
Current Consumption	0.7 A(maximum current); 0.06 A(standby current)
IP Rating	IP40
Humidity	20% ~ 95%RH No condensation
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~60°C, Battery Charging Temperature0 ~ 40°C
