Name: HIKROBOT IDH7000 Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH7000B/10SR/07RN
Availability: InStock

Product introduction

Functional characteristics

Using a self-developed high Performance barcode recognition algorithm, it can efficiently read one-dimensional and two-dimensional codes in industrial scenes at Standard distances
The algorithm is highly robust and can effectively deal with barcode dirt, defects, low contrast, etc.
Supports continuous code reading and batch code reading modes, greatly improving the reading efficiency of multi-code scenes
Multiple Light Source lighting system supports direct lighting and diffuse reflection lighting, and can be suitable for reflective scenes
The appearance is designed with wire separation, Easy to replace and use
IP65 protection and 2.0-meter Drop Height, without fear of harsh industrial application environments
has high-density bar codes and long-distance reading special models, and is suitable for multi-dimensional industrial scene applications.

Ordering Model

MV-IDH7000P/10HHD/12RN/U

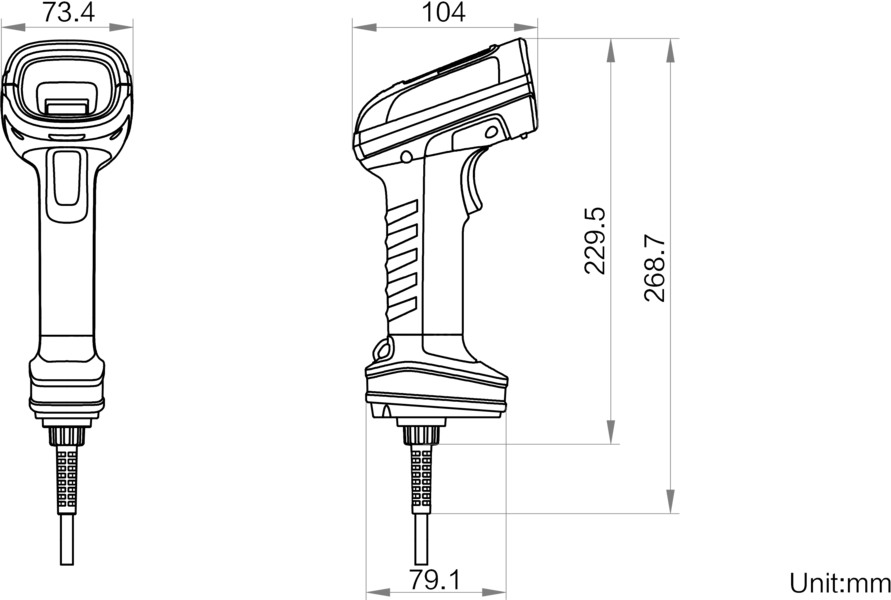

Dimensions

* The data involved in the product may cause differences and due to environmental factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IDH7000P/10HHD/12RN/U

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IDH7000P/10HHD/12RN/U

Model

Model	MV-IDH7000P/10HHD/12RN/U
Name	Durable U-port extremely small code Handheld Code Readers

Performance

Barcode Type	One-dimensional codes:Code 39,Code 93,Code 128,GS1- Code128,ITF 25,Coda Bar, EAN8, EAN13,ISBN,ISSN,ITF14,UPCA,UPCE Matrix QR Code:QR Code,Data Matrix,MicroQR,Aztec,Han Xin Stacked QR code:PDF417
Min. Barcode Resolution	1.5 mil
Sensor Type	CMOS
Resolution	1280 × 800
Depth of Field	Very small code (1.5 mil):28 mm ~ 40 mm Code 39(2 mil):22 mm ~ 47 mm Code 39(3 mil):14 mm ~ 50 mm Code 128(2 mil):25 mm ~ 45 mm Code 128(3 mil):15 mm ~ 50 mm QR Code(5 mil):23 mm ~ 47 mm QR Code(10 mil):10 mm ~ 62 mm Data Matrix(3 mil):25 mm ~ 44mm Data Matrix(5 mil):27 mm ~ 47 mm Data Matrix(10 mil):5 mm ~ 65 mm
Field of View Angle	18° (H) × 10° (V)
Inspection Angle	Tilt angle ±60°, tilt angle ±60 °, rotation angle 360°
Symbol Contrast	20 %
Communication Protocol	SmartSDK,USB(HID/CDC),Serial

Electrical

Interface	USB 2.0, DC terminal, RS-232
Power Supply	USB 2.0:5 VDC;DC terminal:12 VDC
Current Consumption	USB 2.0:0.9 A(maximum current);0.5 A(typical current) DC terminal:0.5 A(maximum current); 0.28 A(typical current)

Mechanical

Ambient Light	0 ~ 100000 lux
Light Source	Support 2 Light Sources: Diffuse Light Source(red light), Direct Light Source(white light)
Aimer	Cross laser aiming
Dimensions	73.4 mm × 104 mm × 229.5 mm
Weight	About 460 g
IP Rating	IP65
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~ 60°C
Humidity	20% ~ 95%RH Non-condensing
Drop Height	2.0 m
