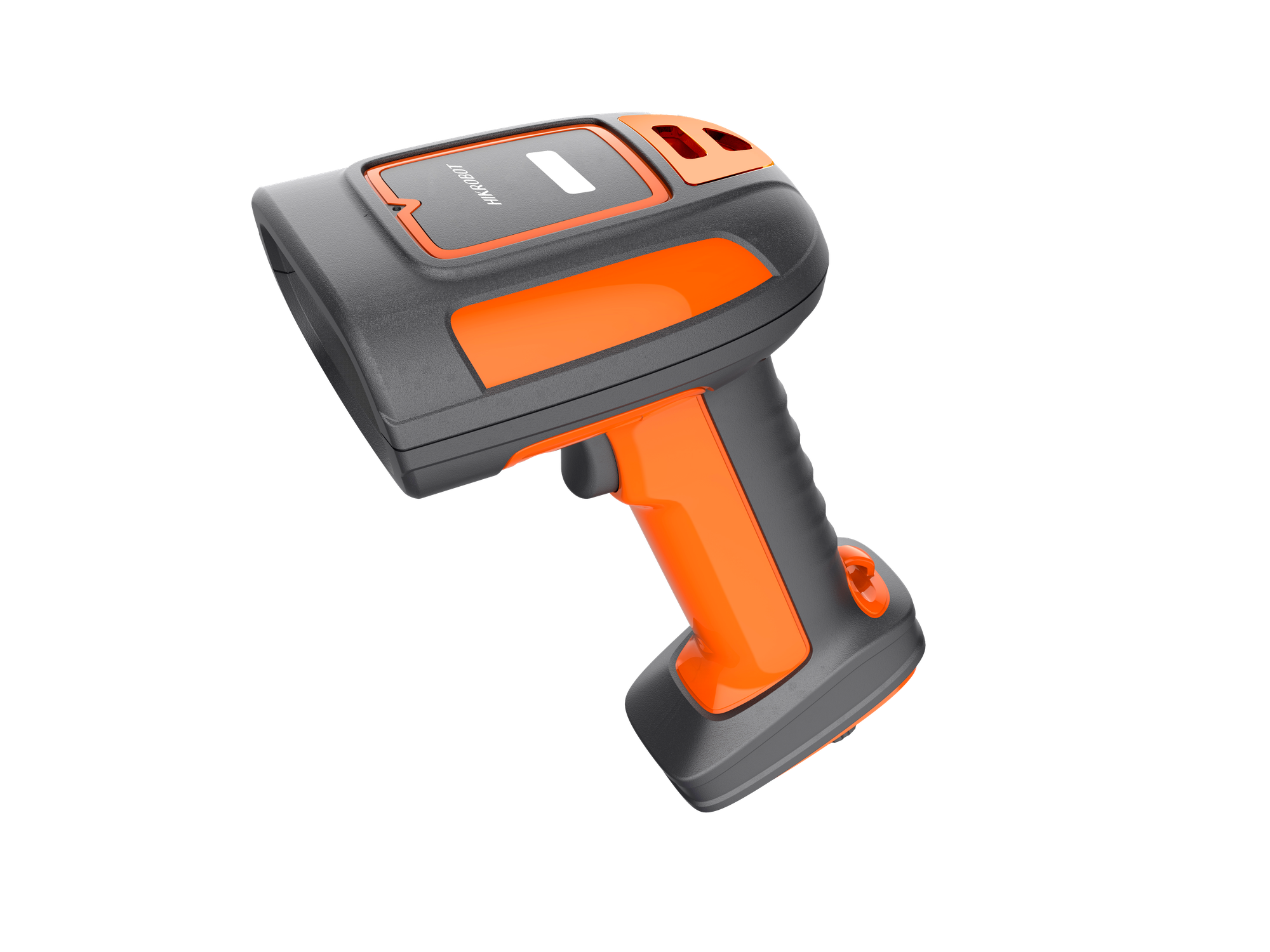

Name: HIKROBOT IDH7000 Series Handheld Code Readers
Brand: HIKROBOT
SKU: MV-IDH7000B/10SR/07RN
Availability: InStock

Product introduction

Functional characteristics

Adopt a self-developed high-performance barcode recognition algorithm with excellent DPM code reading capabilities
The algorithm is highly robust and can effectively cope with dirty, defective, low contrast and other situations of barcode
Adopt Bluetooth 5.0 wireless technology, getting rid of the shackles of Cables, making operation more efficient and light
By using smart Mounting Base, you can connect IDMVS for parameter configuration and device management
3150 mAh battery, Ensure long-term battery life
Support IP65 protection and multiple falls at a height of 2.0 meters, without fear of harsh industrial application environments

Ordering Model

MV-IDHBG013D/10NR/07RN/US

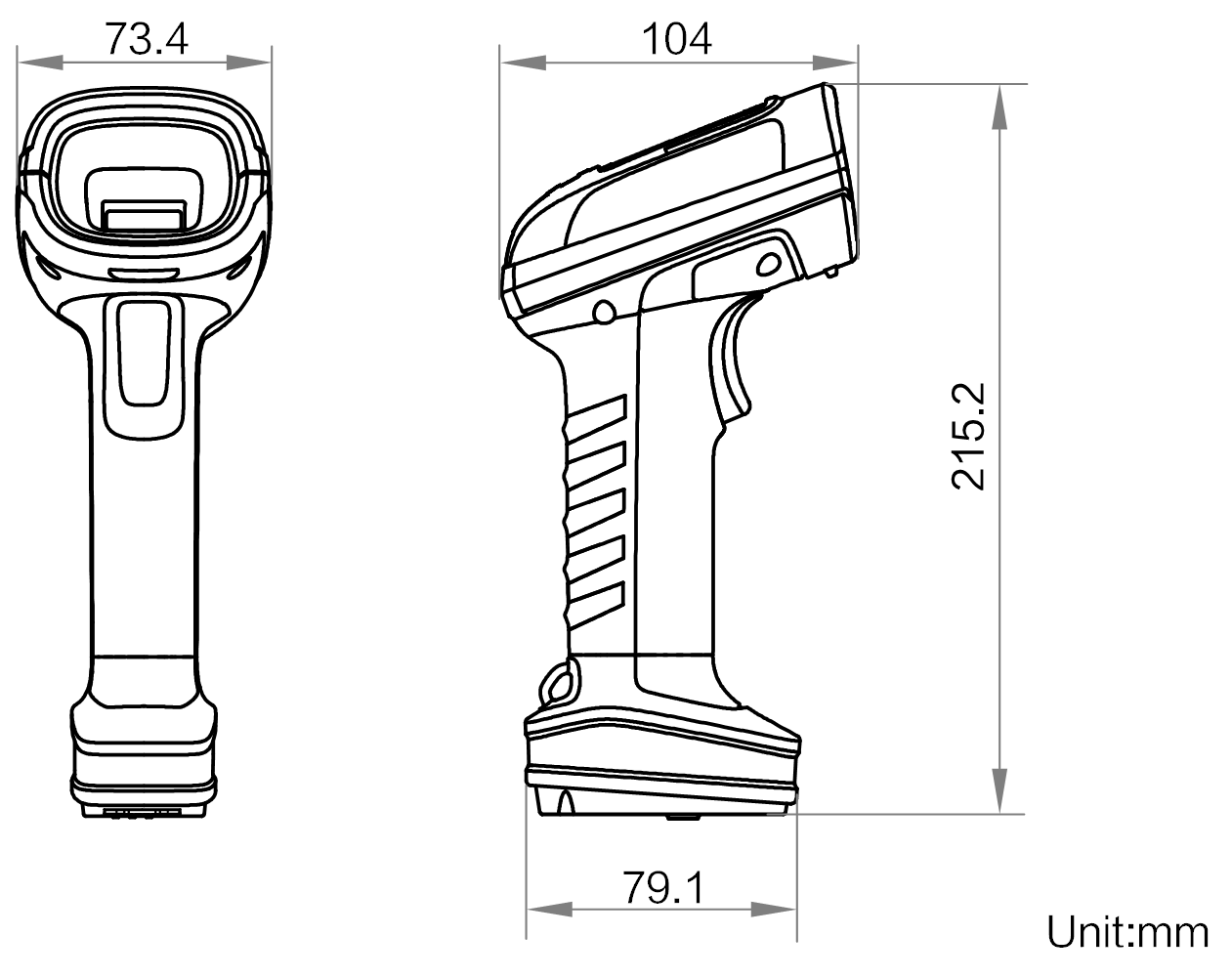

Dimensions

* The data involved in the product may cause Differences due to environmental and other factors. The company will not bear the consequences arising therefrom.

Ordering Model

MV-IDHBG013D/10NR/07RN/US

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IDHBG013D/10NR/07RN/US

Model

Model	MV-IDHBG013D/10NR/07RN/US
Name	Durable Industrial Wireless Handheld Code Readers

Performance

Barcode Type	One-dimensional codes: Code 39, Code 93, Code 128, GS1- Code128, CodaBar, EAN8, EAN13, ISBN, ISSN, ITF25, ITF14, UPCA, UPCE<br/> QR Code: QR Code, Data Matrix, MicroQR, Aztec<br/> Stack code: PDF417
Min. Barcode Resolution	3 mil
Sensor Type	CMOS
Resolution	1280 × 800
Depth of Field	Code 39(3 mil):15 mm ~ 60 mm<br/>Code 39(5 mil):5 mm ~ 80 mm<br/>Data Matrix(5 mil):10 mm ~ 70 mm <br/>Data Matrix(10 mil):0 mm ~ 110 mm2<br/>QR Code(5 mil):10 mm ~ 70 mm
Field of View Angle	31° (H) × 20° (V)
Inspection Angle	Tilt angle ±60°, tilt angle ±60°, rotation angle 360°
Symbol Contrast	20 %

Wireless Communication

Communication Method	Bluetooth BT 5.0, BLE
Wireless Range	100m(open range)

Electrical

Battery Capacity	3150 mAh
Charging Time	In shutdown mode: USB 3.0 (5 V,1 A):4 h;DC12 V (12 V,2 A):3.5 h
Battery Life	13 h (Scan code at intervals, every 2s)

Mechanical

Focal Length	6.7 mm
Ambient Light	0 ~ 100000 lux
Light Source	Support 2 Light Sources: Diffuse Light Source, Direct Light Source
Aimer	Cross laser aiming
Notification Method	LEDIndicator, buzzer, vibrator
Dimensions	73.4 mm × 104 mm × 215.2 mm
Weight	About 410 g
IP Rating	IP65
Temperature	Operating Temperature-10 ~ 50°C, Storage Temperature-20 ~ 60°C, Battery charging Temperature0 ~ 40°C
Humidity	20% ~ 95%RH No condensation
Drop Height	2.0 m

Laser Performance

Laser Safety Class	Category 2 laser products
Wavelength	650 nm
Pulse Width	8 ms
Max. Power	1 mW

General Specifications

Software	IDMVS
Certification	CE,KC

Mounting Base

Model	MV-IDHBG013D/SBASE/U
Communication Protocol	SmartSDK,USB(HID/CDC),Bluetooth
Interface	USB 2.0, DC terminal ²
Power Supply	5 VDC(USB);12 VDC(DC terminal)
Current Consumption	USB 2.0:1.5 A(maximum current); 0.14 A(standby current)<br/> DC terminal:0.7 A(maximum current); 0.06 A(standby current)
Charging Time	4 h(adapter charging);8 h(USB charging)
Dimensions	248.4 mm × 106.3mm × 69.4 mm
Weight	About 380 g
IP Rating	IP40
Temperature	Operating Temperature-10 ~ 50 ℃, Storage Temperature-20 ~60 ℃, Battery charging Temperature0 ~ 40 ℃
Humidity	20% ~ 95%RH Non-condensing
