Name: HIKROBOT 4U Rack-Mount Industrial PC
Brand: HIKROBOT
SKU: MV-IPC-F463H-8G-256G-240
Availability: InStock

MV-IPC-F463H-8G-256G-240

The 4U Rack-Mount Industrial PC adopts a rack-mounted design and can be directly installed in a Standard cabinet to facilitate installation and reinforcement of the equipment. Rack-mounted Industrial PCs cover Intel® Core™ 6th-13th CPUs. The large size design makes it easy to give full play to the advantages of the CPU while providing more sufficient expansion space and thermal Performance.

Product introduction

Functional characteristics

Supports Intel® 6/7/8/9 Generation Core™ i3/i5/i7/i9 and Pentium®, Celeron® CPU
provides 2 DDR4 U-DIMM Memory slots, which can be expanded to a maximum of 32GMemory
Provides 1 PCIe x16, 1 PCIe x4, 5 PCI expansion slots
Provides 2 Gigabit network ports, 4 USB3.0 Interfaces, 2 USB2.0 Interfaces
Supports DVI + VGA + HDMI display output, Support independent dual displays

Ordering Model

MV-IPC-F463H-8G-256G-240

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IPC-F463H-8G-256G-240

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IPC-F463H-8G-256G-240

Model

Model	MV-IPC-F463H-8G-256G-240
Name	4U Rack-Mount Industrial PC,H110,i3-6100,8G,256G,300W

Performance

Processor	Intel® CoreTM 6th, 7th, 8th, and 9th generations,i3, i5, and i7 Processors and Pentium®,Celeron® CPUs in LGA1151 package; Support CPUMax. Power Consumption:95W
Chipset	Intel® H110Chipset,ATX motherboard
Memory	Supports 2 DDR4 U-DIMMemory slots, 16GB per chip, up to 32GB
Storage	Supports 3 7PIN SATA3.0, 1 M.2 SATA Interface
Operating System	Windows 7/10,Linux

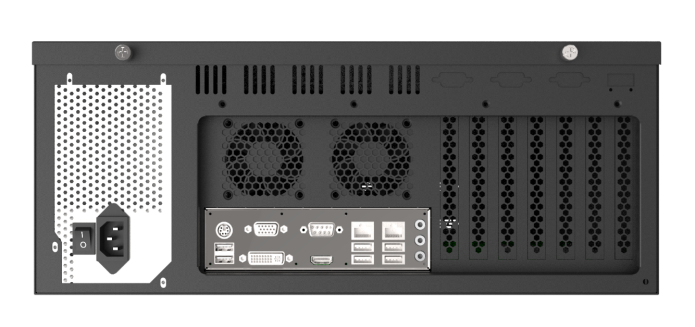

External Interfaces

Network Interface	2 Gigabit Ethernet ports (I219+ RTL8111H)
USB Interface	4 USB3.0 Interface, 2 USB2.0 Interface, Built-in 2 USB2.0 signals (in the form of pins), 2 USB2.0 on-board interfaces can be connected to Encryption Dog
Serial Port	1 RS232/RS485Interface onboard Built-in 1 RS232/RS485 pin, 4 RS232 pins
Expansion Interface	1 PCIe x16 (PCIe3.0) 1 PCIe x4 (PCIe 2.0) 5 PCI (32bit)
Display Interface	Support independent dual displays 1×VGA supports up to 1920×1080@60Hz 1×DVI-D supports up to 1920×1080@60Hz 1×HDMI maximum support 3840×2160@60Hz
Audio Interface	Mic-in, Spk-out
GPIO	8-bit GPIO

Electrical

Power Supply	100 ~ 240V AC
Max. Power Consumption	300 W

Mechanical

Mounting Method	Rack and desktop
Dimensions	452 mm × 430 mm × 177 mm (LWH))
Weight	Net weight approximately 13.8 kg
Temperature	Operating Temperature:0 ~ 40°C,StorageTemperature:-20°C ~ 60°C
Humidity	20%~95% RH Non-condensing
