Name: HIKROBOT 4U Rack-Mount Industrial PC
Brand: HIKROBOT
SKU: MV-IPC-F463H-8G-256G-240
Availability: InStock

MV-IPC-F4A9W-32G-256G2T-2A1

The 4U Rack-Mount Industrial PC adopts a rack-mounted design and can be directly installed in a Standard cabinet to facilitate installation and reinforcement of the equipment. Rack-mounted Industrial PCs cover Intel® Core™ 6th-13th CPUs. The large size design makes it easy to give full play to the advantages of the CPU while providing more sufficient expansion space and thermal Performance.

Product introduction

Features

Supports Intel® 10/11 Generation Xeon W/Core™ i3/i5/i7/i9/G series CPUs
Provides 4 DDR4 non-ECCMemory slots, which can be expanded to a maximum of 128 G Memory, and a single Memory supports a maximum of 3200 MHz
Provides 2 PCIe x16 (2 x8 signals provided when both slots have equipment), 4 PCIe x4 signals (One x1 signal), 1 PCI (32bit) expansion slot
provides 2 Intel network ports; 10 USB3.0 Interfaces, 2 USB2.0 (pins), and 2 USB2.0 on-board Interfaces
Support 2*DP + HDMI display output, support independent three displays

Ordering Model

MV-IPC-F4A9W-32G-256G2T-2A1

Dimensions

* Data involved in the product may cause Differences due to environmental factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IPC-F4A9W-32G-256G2T-2A1

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IPC-F4A9W-32G-256G2T-2A1

Model

Model	MV-IPC-F4A9W-32G-256G2T-2A1
Name	4U Rack-Mount Industrial PC,W580,i9-10900,2*16G,256G+2T,500W

Performance

Processor	Supports Intel® 10/11 Gen Xeon W/CoreTM i3/i5/i7/i9/G series CPUs in LGA1200 package,TDP:125W
Chipset	IntelÂ ® W580Chipset,ATX motherboard
Memory	Supports 4 DDR4 ECC/non-ECCMemory slots, 32 GB single, Support up to 128 GB
Storage	1 M.2 SATA/Nvme 2242/2280Interface(Only the 11th generation CPU supports the Nvmex4 protocol), 4 7PIN SATA3.0(SATA1 has no signal when SATA SSD is plugged into M.2); Support group RAID 0, 1, 5
Operating System	Windows 10/11,Linux

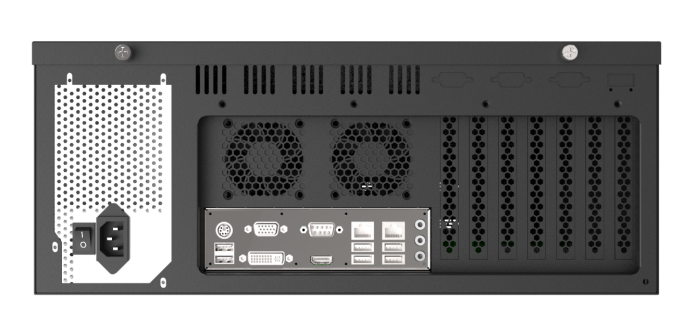

External Interfaces

Network Interface	2 Intel network ports (I226+I219)
USB Interface	10 USB3.0 Interface1 Built-in 2 USB2.0 signals (in the form of pins), 2 USB2.0 on-board interfaces can be connected to Encryption Dog
Serial Port	1 RS-232/422/485Interface on board, Built-in 4 RS-232 (pins), 1 RS-232/422/485(pin)
Expansion Interface	2 PCIe x16(PCIe 3.0, 1 x16 signal or 2 x8 signals), 4 PCIe x4(PCIe 3.0, one x1 signal), 1 PCI(32bit)
Display Interface	Intel HD Graphics Support three independent displays (1HDMI,2DP) 1×HDMI maximum support 3840×2160@60Hz 2×DP maximum support 3840×2160@60Hz
Audio Interface	MIC-In,Line-in,Line-out
GPIO	16-bit GPIO

Electrical

Power Supply	100 ~ 240V AC
Max. Power Consumption	500W

Mechanical

Mounting Method	Rack and desktop
Dimensions	452 mm × 430 mm × 177 mm (LWH)
Weight	Net weight approximately 13.8 kg
Temperature	Operating Temperature:0 ~ 40°C,StorageTemperature:-20°C ~ 60°C
Humidity	20%~95% RH Non-condensing
