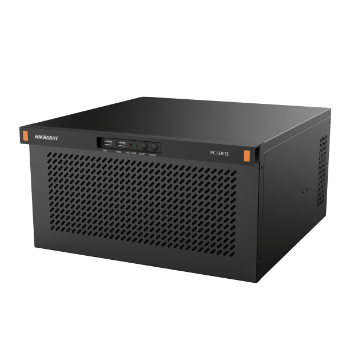

Name: HIKROBOT 4U Wall-Mount Industrial PC
Brand: HIKROBOT
SKU: MV-IPC-H485H-8G-256G1T-240
Availability: InStock

Product introduction

Features

Intel@12/13/14 Generation Core i3/i5/i7/i9 CPU
Provides 4 DDR5 UDIMMemory slots, with a single slot of 32GB, and a maximum support of 128GB
2 Intel network ports on board; 10 USB3.0 Interfaces, 2 USB2.0 (pins), 2 USB2.0 on-board Interfaces
On-board 2*DP + HDMI Display Output Interface, supports independent three displays
Contains 2 PCIe x16 slots (x8 signals) supporting PCIe 5.0, 2 PCIe x4 slots supporting PCIe 4.0, Two PCIe x4 slots support PCIe 3.0, and one StandardPCI (32bit) expansion slot

Ordering Model

MV-IPC-H4C5W-32G-256G2T-2A3

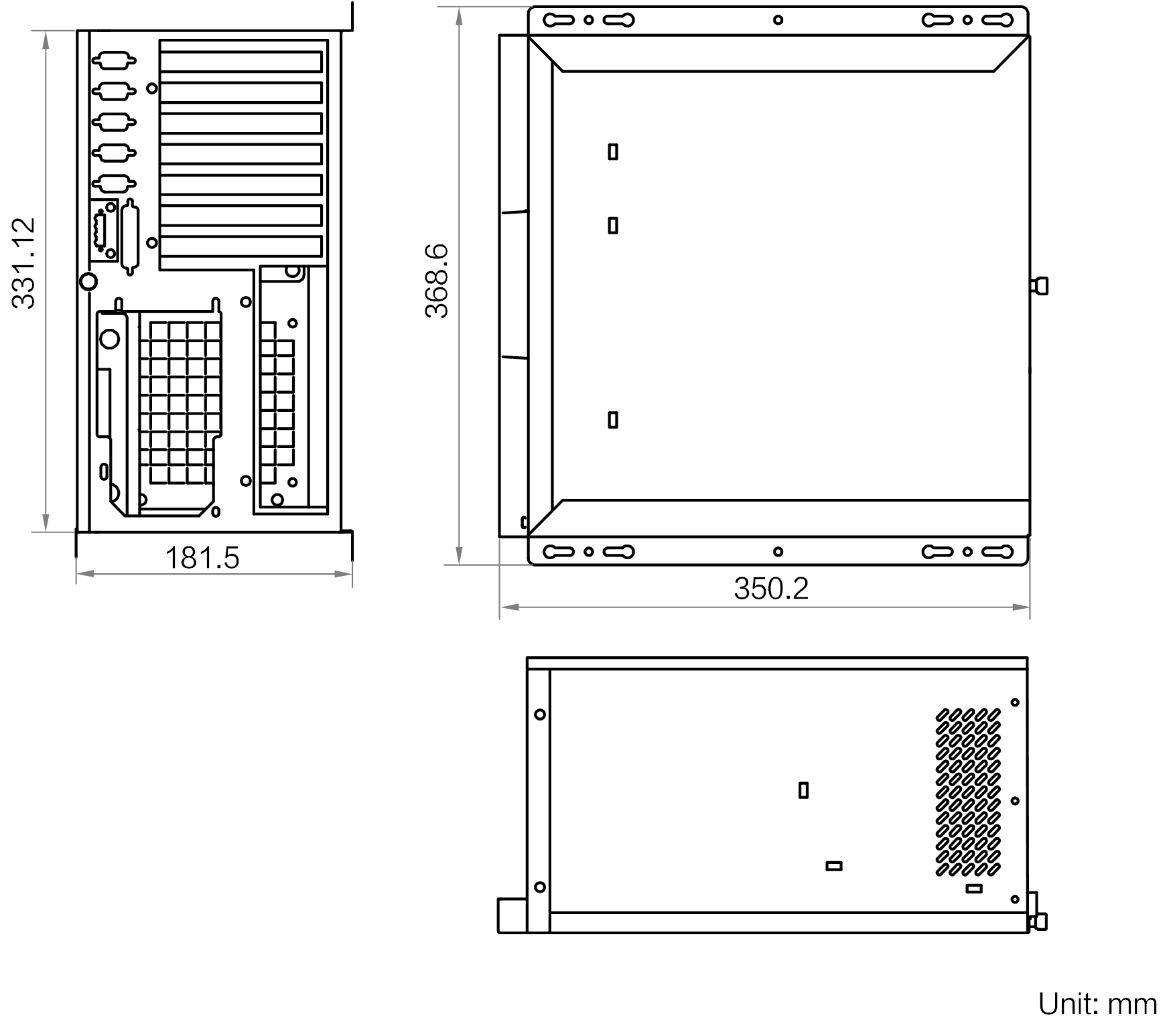

Dimensions

* Data involved in the product may cause differences due to environmental factors and other factors. The company will not bear the consequences arising therefrom.

Ordering Model

MV-IPC-H4C5W-32G-256G2T-2A3

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IPC-H4C5W-32G-256G2T-2A3

Model

Model	MV-IPC-H4C5W-32G-256G2T-2A3
Name	4U Wall-Mount Industrial PC,W680D,i5-12400,2*16G,256G+2T,850W

Performance

Processor	Supports Intel® CoreTM i3/i5/i7/i9 CPU generation 12/13/14 in LGA1700 package,TDP:125W
Chipset	Intel® W680D Chipset,ATX Motherboard
Memory	Supports 4 DDR5 4400/4800/5200/5600 MHz UDIMM ECC/Non-ECCMemory slots, 32 GB per root, and a maximum support of 128 GB
Storage	Supports 4 7PIN SATA3.0, 2 M.2 2242/2280 Key-M supports Nvme(M2-KEYM2 supports SATA/Nvme adaptation), supports Raid 0, 1, 5, 10
Operating System	Windows 10/11,Linux

External Interfaces

Network Interface	2 Intel network ports (I226+I219)
USB Interface	10 USB3.0 Interfaces 1,2 USB2.0 signals (in pin form), 2 USB2.0 on-board Interfaces can be connected to Encryption Dog
Serial Port	1 RS-232/422/485 Interface on board, Built-in 4 RS-232 (pins) and 1 RS-232/422/485 (pin)
Expansion Interface	2 PCIe x16(PCIe 5.0, x8 signal), 4 PCIe x4(2 support PCIe 4.0, 2 support PCIe 3.0), 1 PCI (32bit)
Display Interface	Intel HD Graphics Support three independent displays (1 HDMI,2 DP) 1×HDMI maximum support 3840×2160@60Hz 2×DP supports up to 5120×2160@60Hz
Audio Interface	MIC-In,Line-In,Line-out
GPIO	16-bit GPIO

Electrical

Power Supply	100 ~ 240V AC
Max. Power Consumption	850W

Mechanical

Mounting Method	Wall mounted and desktop mounted
Dimensions	351mm × 331mm × 174mm(LWH)
Weight	Net weight approximately 10.3 kg
Temperature	Operating Temperature:0 ~ 40 °C,StorageTemperature:-20°C ~ 60°C
Humidity	20%~95% RH Non-condensing
