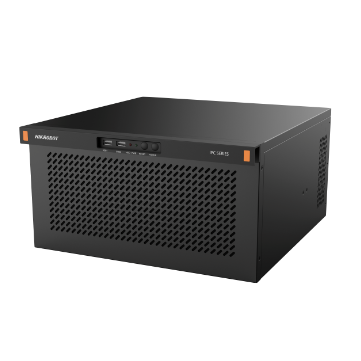

Name: HIKROBOT 4U Wall-Mount Industrial PC
Brand: HIKROBOT
SKU: MV-IPC-H485H-8G-256G1T-240
Availability: InStock

Product introduction

Functional characteristics

Supports Intel® 12/13/14 Generation Core™ i3/i5/i7/i9 and Pentium®, Celeron® CPU
provides 2 DDR4 U-DIMM Memory slots, which can be expanded to a maximum of 64G Memory
Provides 1 PCIe x16, 2 PCIe x4 (x2 signals), 4 PCI (32bit) expansion slots
Provides 2 Intel network ports, 4 USB3.0 Interfaces, 4 USB2.0 Interfaces
Supports VGA + HDMI+DP display output, Support independent three displays

Ordering Model

MV-IPC-H4C7H-32G-256G2T-241

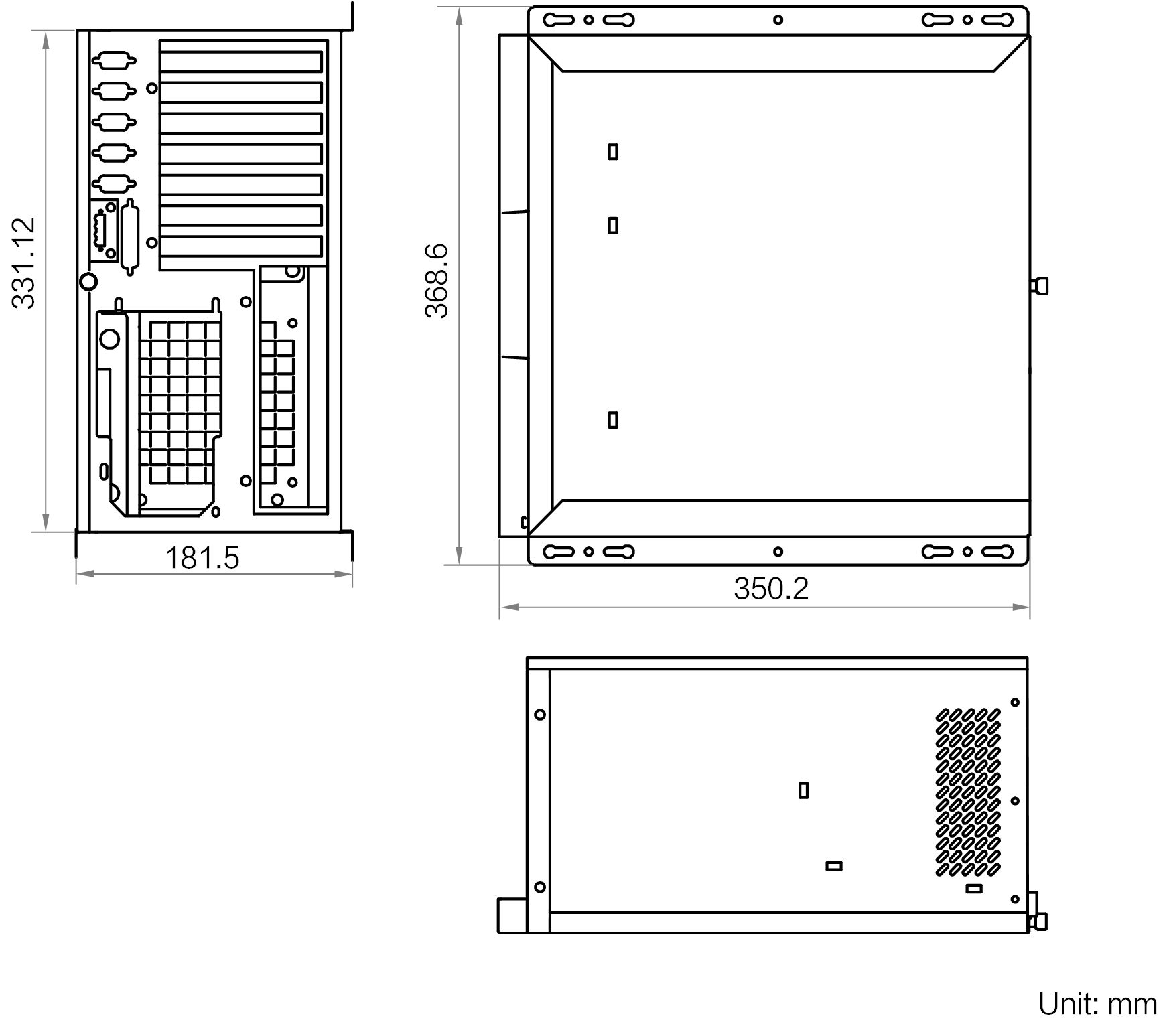

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IPC-H4C7H-32G-256G2T-241

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IPC-H4C7H-32G-256G2T-241

Model

Model	MV-IPC-H4C7H-32G-256G2T-241
Name	4U Wall-Mount Industrial PC,H610,i7-12700,2*16G,256G+2T,500W

Performance

Processor	Supports Intel® CoreTM12/13/14 generations,i3/i5/i7/i9 and Pentium®,Celeron® CPUs in LGA1700 package; CPU TDP support: 65W
Chipset	Intel® H610Chipset,ATX motherboard
Memory	Provides 2 DDR4 U-DIMMemory slots, 32GB per chip, maximum support 64GB
Storage	Provides 4 7PIN SATA3.0, 1 M.2 Nvme 2242/2280Interface, does not support RAID
Operating System	Windows 10/11,Linux

External Interfaces

Network Interface	2 Intel network ports (I226+ I219)
USB Interface	4 USB3.0 Interface, 4 USB2.0 Interface Built-in 2 USB2.0 signals (in the form of pins)1,1 USB2.0 on-board Interface can be connected to Encryption Dog (choose one with pins, not available by default)
Serial Port	An RS-232/422/485 on board, Built-in 1 RS-232/422/485 pin, 4 RS-232 pins
Expansion Interface	1 PCIe x16(PCIe 5.0) 2 PCIe x4(PCIe 3.0, x2 signals) 4 StandardPCI slots (32bit)
Display Interface	Support for independent triple displays 1 VGA, maximum support of 1920 × 1080@60Hz 1 HDMI, maximum support for 3840 ×2160@60Hz 1 DP, Maximum support 3840 × 2160@60Hz
Audio Interface	MIC-In,Line-in,Line-out
GPIO	8-bit GPIO

Electrical

Power Supply	100 ~ 240V AC
Max. Power Consumption	500W

Mechanical

Mounting Method	Wall mounted and desktop mounted
Dimensions	351mm × 331mm × 174mm(LWH)
Weight	Net weight approximately 10.3 kg
Temperature	Operating Temperature:0 ~ 40 °C,StorageTemperature:-20°C ~ 60°C
Humidity	20%~95% RH No condensation
