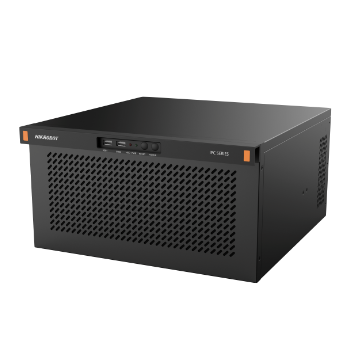

Name: HIKROBOT 4U Wall-Mount Industrial PC
Brand: HIKROBOT
SKU: MV-IPC-H485H-8G-256G1T-240
Availability: InStock

Product introduction

Features

Supports Intel® 12/13/14 Generation Core™ i3/i5/i7/i9 and Pentium®, Celeron® CPU
provides 4 DDR4 non-ECCMemory slots, which can be expanded to a maximum of 128G Memory, and a single root Memory supports a maximum of 3200 MHz
Provides 2 PCIe x16, 4 PCIe x4, 1 PCI expansion slot
Provides 2 Intel network ports, 6 USB3.0 Interfaces
Supports DVI + VGA + HDMI display output, Support independent three displays

Ordering Model

MV-IPC-H4C7Q-32G-256G2T-262

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IPC-H4C7Q-32G-256G2T-262

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IPC-H4C7Q-32G-256G2T-262

Model

Model	MV-IPC-H4C7Q-32G-256G2T-262
Name	4U Wall-Mount Industrial PC,Q670,i7-12700,2*16G,256G+2T,650W

Performance

Processor	Supports Intel® CoreTM Gen 12/13/14,i3/i5/i7/i9 and Pentium®,Celeron® CPUs in LGA1700 package,TDP: 125W
Chipset	Intel® Q670Chipset,ATX motherboard
Memory	Supports 4 DDR4 3200MHz non-ECC U-DIMMemory slots, a single 32GB, and a maximum support of 128GB
Storage	Provides 4 7PIN SATA3.0, 1 M.2 Adaptive Nvme/SATA Protocol 2242/2280Interface; supports group RAID 0, 1, 5, 10
Operating System	Windows 10/11,Linux

External Interfaces

Network Interface	2 § 2 §6 Intel Internet Ports (I226+I219)§6 USB3.0 Interfaces Built-in 2 USB3.0(pins), 4 USB2.0(pins) 1, 1 USB2.0 on-board Interface can be connected to Encryption Dog
USB Interface	6 USB 3.0 Interfaces Built-in 2 USB3.0(pins), 4 USB2.0(pins) 1, 1 USB2.0 on-board Interface can be connected to Encryption Dog
Serial Port	1 RS-232 Built-in 1 RS-232/422/485(pin), 1 RS-232/485(pin), 3 RS-232 (pins)
Expansion Interface	2 PCIe x16(PCIe4.0, x8 signal), 3 PCIe x4 (PCIe 4.0), 1 PCIe x4(PCIe 3.0), 1 PCI(32bit) expansion slot
Display Interface	Support independent triple displays (DVI,VGA,HDMI) 1 DVI supports up to 1920 × 1200@60Hz 1 VGA supports up to 1920 × 1200@60Hz 1 HDMI maximum support 4096 × 2160@30Hz
Audio Interface	MIC-In,Line-In,Line-out
GPIO	8-bit GPIO

Electrical

Power Supply	100 ~ 240V AC
Max. Power Consumption	650W

Mechanical

Mounting Method	Wall mounted and desktop mounted
Dimensions	351mm × 331mm × 174mm(LWH)
Weight	Net weight approximately 10.3 kg
Temperature	Operating Temperature:0 ~ 40 °C,StorageTemperature:-20°C ~ 60°C
Humidity	20%~95% RH No condensation
