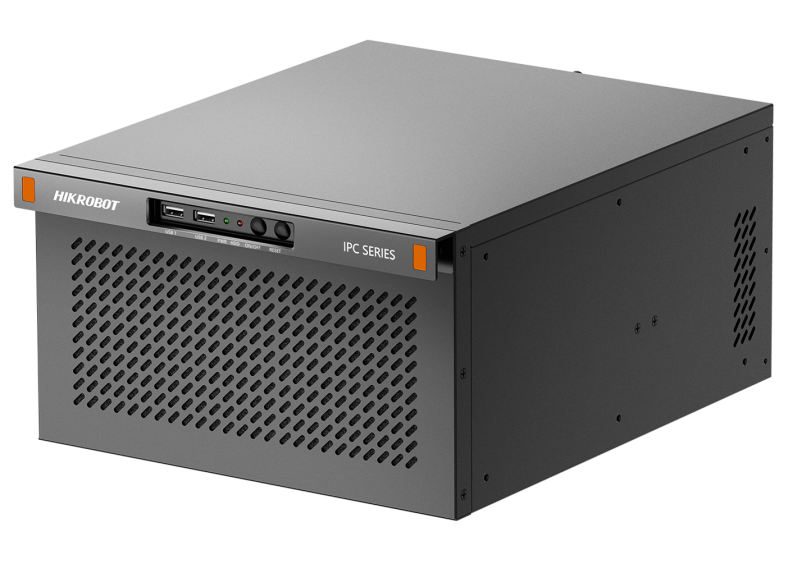

Name: HIKROBOT 3U Wall-Mount Industrial PC
Brand: HIKROBOT
SKU: MV-IPC-H387H-16G-256G-240
Availability: InStock

MV-IPC-H397H-16G-256G-241

The 3U Wall-Mount Industrial PC is moderate in size, has good scalability and flexibility. Supports StandardMicro ATX motherboards and Intel® Core™ 6th-13th CPU. It is suitable for installation in space-limited environments and suitable for small and medium visual scenes.

Product introduction

Functional characteristics

Supports Intel® 6/7/8/9 Generation Core™ i3/i5/i7 and Pentium®, Celeron® CPU
Provides 2 DDR4 U-DIMM Memory slots, which can be expanded to a maximum of 32GMemory
Provides 1 PCIe x16 (x16 signal), 1 PCIe x4 (x4 signal), 2 PCI (32bit) expansion slots
Provides 2 Intel network ports, 4 USB3.0 Interfaces, 2 USB2.0 Interfaces
Supports DVI + VGA + HDMI display output, Support independent dual displays

Ordering Model

MV-IPC-H397H-16G-256G-241

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IPC-H397H-16G-256G-241

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IPC-H397H-16G-256G-241

Model

Model	MV-IPC-H397H-16G-256G-241
Name	3U Wall-Mount Industrial PC,mATX-H110,i7-9700,2*16G,256G+2T,400W

Performance

Processor	Support for Intel® CoreTM Gen 6/7/8/9,i3/i5/i7 and Pentium®, Celeron® CPUs in LGA1151 package CPU TDP support: 95W
Chipset	Intel® H110Chipset,Micro-ATX motherboard
Memory	Support 2 DDR4 U-DIMMemory slots, single 16GB, maximum support 32GB
Storage	Support 3 7PIN SATA3.0, 1 M.2 2280 SATAInterface
Operating System	Windows 7/10,Linux

External Interfaces

Network Interface	2 Intel network ports (I219, I225)
USB Interface	4 USB3.0 Interface1, 2 USB2.0 Interface Built-in 2 USB2.0 signals (in the form of pins), 2 USB2.0 on-board interfaces can be connected to Encryption Dog
Serial Port	1 RS-232/422/485Interface onboard Built-in 5 RS-232 pins
Expansion Interface	Including 1 PCIe x16(PCIe 3.0), 1 PCIe x4(PCIe 2.0), 2 PCI expansion slots
Display Interface	Support independent dual displays 1× VGA supports up to 1280×1024@60Hz 1× DVI-D supports up to 1920×1080@60Hz 1× HDMI maximum support 3840×2160@60Hz
Audio Interface	Mic-In,Line-In,Line-out
GPIO	8-bit GPIO

Electrical

Power Supply	100 ~ 240V AC
Max. Power Consumption	300W

Mechanical

Mounting Method	Wall mounted
Dimensions	351mm × 260 mm × 155 mm (LWH)
Weight	Net weight approximately 8.0kg
Temperature	Operating Temperature:0 ~ 40 °C,StorageTemperature:-20°C ~ 60°C
Humidity	20%~95% RH No condensation
