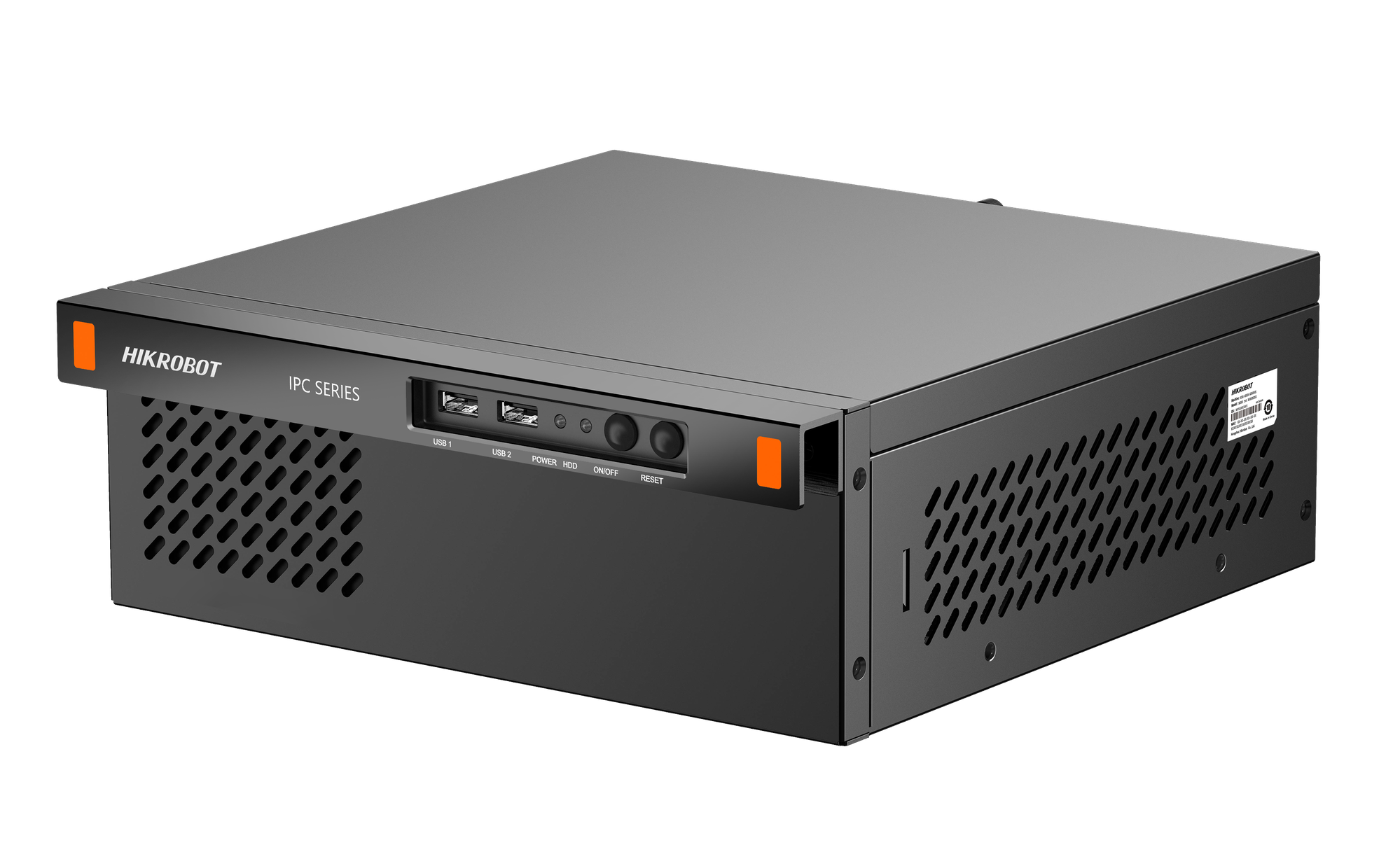

Name: HIKROBOT 2U Wall-Mount Industrial PC
Brand: HIKROBOT
SKU: MV-IPC-H265H-8G-256G-240
Availability: InStock

MV-IPC-H265H-8G-256G-240

The 2U Wall-Mount Industrial PC is small in size and covers Intel® Core™ 6th-9th CPUs. It supports Mini-ITX industrial motherboards and a PCIE expansion slot to meet space and small expansion Performance requirements.

Product introduction

Features

Supports Intel® 6/7/8/9 Generation Core™ i3/i5/i7 and Pentium®, Celeron® CPUs
2§2 DDR4 SO-DIMM Memory slots Support up to 32GB
1 PCIe x16 , 1 Mini-PCIe expansion
2 Realtek network ports on board; 4 USB3.0 Interfaces, 6 USB2.0 Interfaces
Support VGA + 2*HDMI display output, support independent dual displays

Ordering Model

MV-IPC-H265H-8G-256G-240

Dimensions

* The data involved in the product may cause Differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IPC-H265H-8G-256G-240

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IPC-H265H-8G-256G-240

Model

Model	MV-IPC-H265H-8G-256G-240
Name	2U Wall-Mount Industrial PC,H110,i5-6500,8G,256G,150W

Performance

Processor	Support for Intel® CoreTM Gen 6/7/8/9,i3/i5/i7 and Pentium®, Celeron® CPUs in LGA1151 package CPU TDP support: 65W
Chipset	Intel® H110Chipset,Mini-ITX motherboard
Memory	Support 2 DDR4 SO-DIMMemory slots, 16GB per chip, maximum support 32GB
Storage	Support 2 SATA3.0, 1 mSATAInterface
Operating System	Windows 7/10,Linux

External Interfaces

Network Interface	2 Realtek 8111H Gigabit Ethernet ports
USB Interface	4 USB3.0Interface1, 2 USB2.0Interface Built-in 4 USB2.0 signals (in pin form)
Serial Port	1 RS-232/422/485Interface on board Built-in 5 RS-232 pins
Expansion Interface	Including 1 PCIe3.0x16,1 Mini-PCIeInterface(with SIM card holder)
Display Interface	Support independent dual displays 1×VGA supports up to 1920×1200@60Hz 2×HDMI maximum support 3840×2160@60Hz
Audio Interface	Mic-In,Line-out
GPIO	8-bit GPIO

Electrical

Power Supply	100 ~ 240V AC
Max. Power Consumption	150W

Mechanical

Mounting Method	Wall-mounted
Dimensions	251mm × 245 mm × 89 mm (LWH)
Weight	Net weight approximately 4.3kg
Temperature	Operating Temperature:0 ~ 40 °C,StorageTemperature:-20°C ~ 60°C
Humidity	20%~95% RH No condensation
