Name: HIKROBOT Full Range of Industrial PCs
Brand: HIKROBOT
SKU: MV-IPC-F463H-8G-256G-240
Availability: InStock

MV-IPC-F4A7W-64-1000G4T-2A3

The products cover various forms such as rack-mounted, wall-mounted, embedded, and flat-panel all-in-one machines, covering Intel® Core™ 6th-13th CPUs, meeting 1 to 7 different PCIE/PCI expansion requirements and meeting various application needs in the vision industry.

Product introduction

Features

Supports Intel® 10/11 Generation Xeon W/Core™ i3/i5/i7/i9/G series CPUs
Provides 4 DDR4 non-ECCMemory slots, which can be expanded to a maximum of 128 G Memory, and a single Memory supports a maximum of 3200 MHz
Provides 2 PCIe x16 (2 x8 signals provided when both slots have equipment), 4 PCIe x4 signals (One x1 signal), 1 PCI (32bit) expansion slot
provides 2 Intel network ports; 10 USB3.0 Interfaces, 2 USB2.0 (pins), and 2 USB2.0 on-board Interfaces
Support 2*DP + HDMI display output, support independent three displays

Ordering Model

MV-IPC-F4A7W-64-1000G4T-2A3

Dimensions

* Data involved in the product may cause Differences due to environmental factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IPC-F4A7W-64-1000G4T-2A3

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IPC-F4A7W-64-1000G4T-2A3

Model

Model	MV-IPC-F4A7W-64-1000G4T-2A3

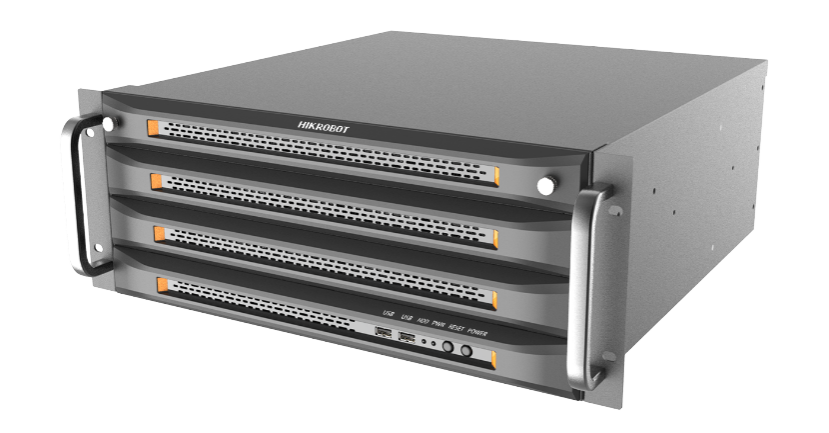

Name	4U Rack-Mount Industrial PC, W580, Intelcore 10th generation i7CPU

Performance

Processor	Supports Intel® 10/11th generation Xeon W/CoreTM i3/i5/i7/i9/G series CPU in LGA1200 package,TDP:125W
Chipset	Intel® W580Chipset,ATX motherboard
Memory	Supports 4 § Supports 4 ECC/non-ECCMemory slots, 32 GB per root, maximum support 128 GB
Storage	Supports 1 M.2 SATA/Nvme 2242/2280Interface (Only the 11th generation CPU supports the Nvmex4 protocol), 4 7PIN SATA3.0(SATA1 has no signal when inserting SATA SSD on M.2); supports group RAID 0, 1, 5
Operating System	Windows 10/11,Linux

External Interfaces

Network Interface	2 Intel network ports (I226+I219)
USB Interface	10 USB 3.0 Interface1 Built-in 2 USB2.0 signals (in the form of pins), 2 USB2.0 on-board interfaces can be connected to Encryption Dog
Serial Port	1 RS-232/422/485Interface on board, Built-in 4 RS-232 (pins), 1 RS-232/422/485(pin)
Expansion Interface	2 PCIe x16(PCIe 3.0, 1 x16 signal or 2 x8 signals), 4 PCIe x4(PCIe 3.0, one x1 signal), 1 PCI(32bit)
Display Interface	Intel HD Graphics Support three independent displays (1HDMI,2DP) 1×HDMI maximum support 3840×2160@60Hz 2×DP maximum support 3840×2160@60Hz
Audio Interface	MIC-In,Line-in,Line-out
GPIO	16-bit GPIO

Electrical

Power Supply	100 ~ 240V AC
Max. Power Consumption	850W

Mechanical

Mounting Method	Rack and desktop
Dimensions	452 mm × 430 mm × 177 mm (LWH)
Weight	Net weight approximately 13.8 kg
Temperature	Operating Temperature:0 ~ 40°C,StorageTemperature:-20°C ~ 60°C
Humidity	20%~95% RH Non-condensing
