Name: HIKROBOT Full Range of Industrial PCs
Brand: HIKROBOT
SKU: MV-IPC-F463H-8G-256G-240
Availability: InStock

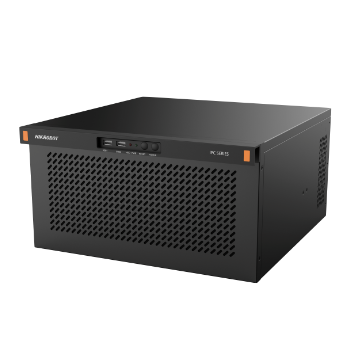

MV-IPC-H487H-8G-256G1T-240

The products cover various forms such as rack-mounted, wall-mounted, embedded, and flat-panel all-in-one machines, covering Intel® Core™ 6th-13th CPUs, meeting 1 to 7 different PCIE/PCI expansion requirements and meeting various application needs in the vision industry.

Product introduction

Functional characteristics

Supports Intel® 6/7/8/9 Generation Core™ i3/i5/i7/i9 and Pentium®. Celeron® CPU
provides 2 DDR4 U-DIMMemory slots, which can be expanded to a maximum of 32GMemory
Provides 1 PCIe x16, 1 PCIe x4, 5 PCI expansion slots
Provides 2 Gigabit ports, 4 USB3.0 Interfaces, 2 USB2.0 Interfaces
Supports DVI + VGA + HDMI display output, Support independent dual displays

Ordering Model

MV-IPC-H487H-8G-256G1T-240

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-IPC-H487H-8G-256G1T-240

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-IPC-H487H-8G-256G1T-240

Model

Model	MV-IPC-H487H-8G-256G1T-240
Name	4U Wall-Mount Industrial PC,H110,i7-8700,8G,256G+1T,300W

Performance

Processor	Intel® CoreTM 6th, 7th, 8th, and 9th generations,i3, i5, and i7 Processors and Pentium®,Celeron® CPUs in LGA1151 package Support CPUMax. Power Consumption:95W
Chipset	Intel® H110Chipset,ATX motherboard
Memory	Supports 2 DDR4 U-DIMMemory slots, 16GB per chip, maximum support 32GB
Storage	Supports 3 7PIN SATA3.0, 1 M.2 SATA Interface
Operating System	Windows 7/10,Linux

External Interfaces

Network Interface	2 Gigabit Ethernet ports (I219+ RTL8111H)
USB Interface	4 USB3.0 Interface, 2 USB2.0 Interfaces, Built-in 2 USB2.0 signals (in the form of pins), 2 USB2.0 on-board interfaces can be connected to Encryption Dog
Serial Port	1 RS232/RS485Interface onboard Built-in 1 RS232/RS485 pin, 4 RS232 pins
Expansion Interface	1 PCIe x16(PCIe3.0) 1 PCIe x4 (PCIe 2.0) 5 PCI (32bit)
Display Interface	Support independent dual displays 1 × VGA supports up to 1920 × 1080@60Hz 1 × DVI-D supports up to 1920 × 1080@60Hz 1 × HDMI maximum support 3840 × 2160@60Hz
Audio Interface	Mic-in, Spk-out
GPIO	8-bit GPIO

Electrical

Power Supply	100 ~ 240V AC
Max. Power Consumption	300W

Mechanical

Mounting Method	Rack and desktop
Dimensions	351mm × 331mm × 174mm(LWH)
Weight	Net weight approximately 10.3 kg
Temperature	Operating Temperature:0 ~ 40 °C,StorageTemperature:-20°C ~ 60°C
Humidity	20%~95% RH Non-condensing
