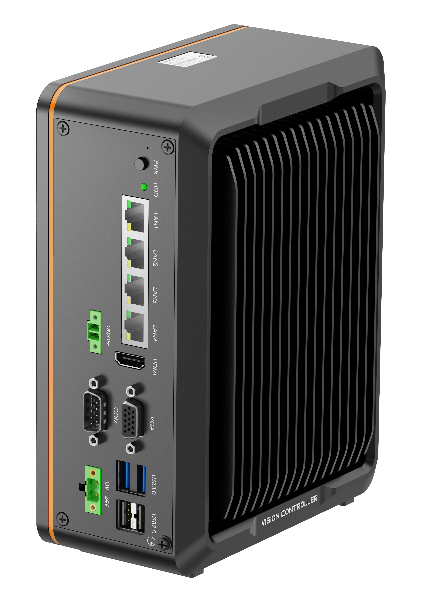

Name: HIKROBOT Full Range of Industrial PCs
Brand: HIKROBOT
SKU: MV-IPC-F463H-8G-256G-240
Availability: InStock

MV-VCB2100-128G40-1T

The products cover various forms such as rack-mounted, wall-mounted, embedded, and flat-panel all-in-one machines, covering Intel® Core™ 6th-13th CPUs, meeting 1 to 7 different PCIE/PCI expansion requirements and meeting various application needs in the vision industry.

Product introduction

Functional characteristics

Equipped with the new Intel Alder Lake-N PlatformProcessor, providing powerful computing Performance.
Support 4-way Gigabit Ethernet port, support high-speed stable image transmission.
Optional built-in USB Interface or built-in Encryption dog device for easy field deployment and maintenance.

Ordering Model

MV-VCB2100-128G40-1T

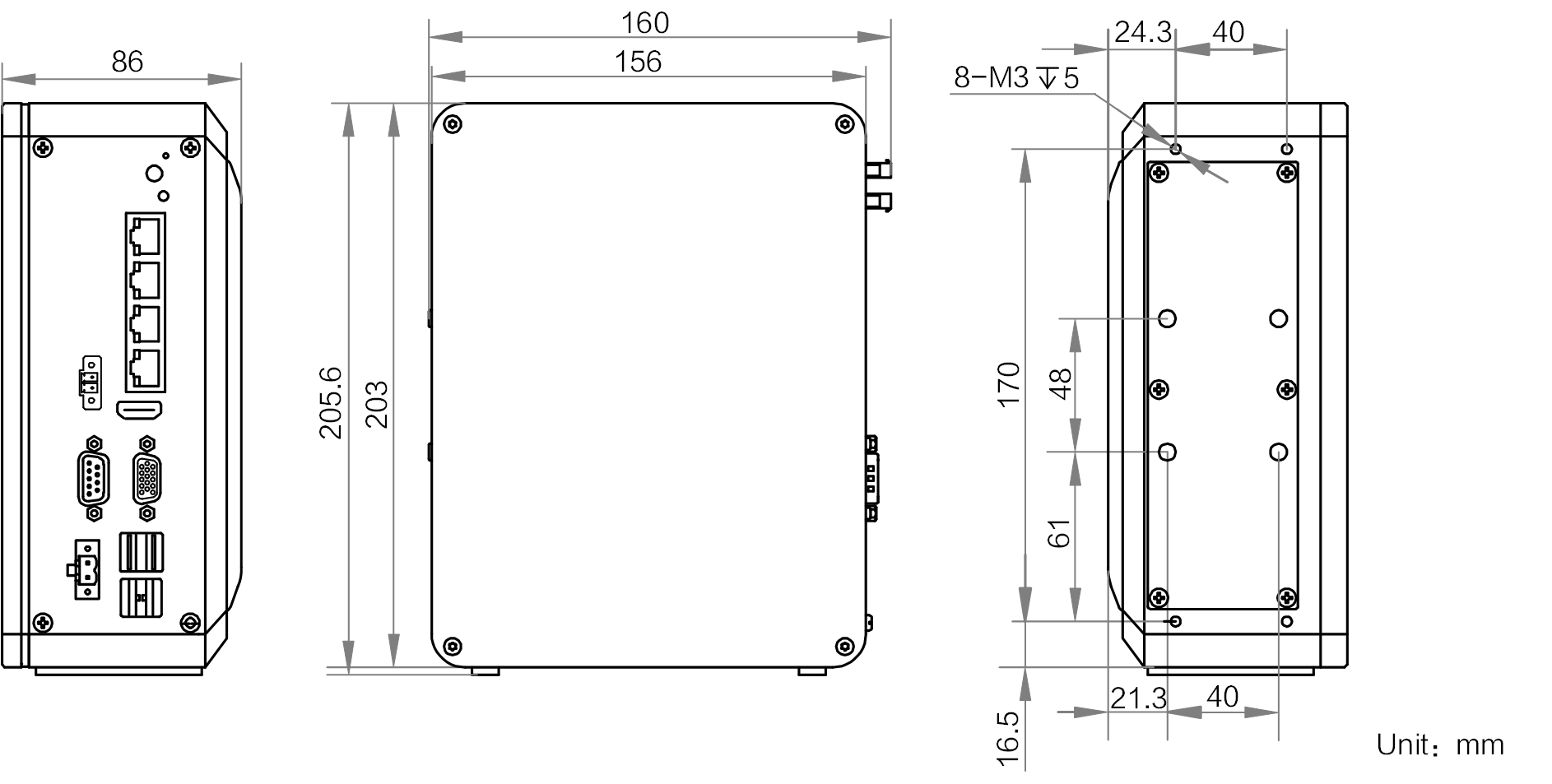

Dimensions

* Data related to the product may be generated due to environmental factors and other factors Differences , the company will not bear the consequences arising therefrom.

Ordering Model

MV-VCB2100-128G40-1T

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-VCB2100-128G40-1T

Model

Model	MV-VCB2100-128G40-1T
Name	VCB2100 vision controller, N97, 8GB+128G SSD+ 1T HDD, basic style, excluding IO, Light Source and other functions;

Performance

Processor	Intel® Processor N97
Memory	8GB
Storage	128G SSD and 1T HDD
GPU	Intel® UHD Graphics
Operating System	Windows 10 64-bit, not activated

External Interfaces

Video Output	1 HDMI port, 1 VGA port Support simultaneous independent display and output Maximum support 1920 × 1080@60Hz
Digital I/O	Not supported
USB Interface	2 USB 2.0 Interfaces 2 USB 3.0 Interfaces
Network Interface	4 Gigabit Internet ports
Serial Port	1 channel configurable RS-232 (configurable as RS-485/RS-422)

Electrical

Power Supply	24 VDC
Typical Power Consumption	51 W

Mechanical

Dimensions	160.59 mm × 205.6 mm × 86 mm
Weight	About 2 kg
Temperature	Operating Temperature 0 °C~50 °C, Storage Temperature-30°C ~ 70°C
Humidity	20%~80% RH Non-condensing
