Name: HIKROBOT VT3000 Series
Brand: HIKROBOT
SKU: MV-VT3100-128G40-2T
Availability: InStock

MV-VT3700-128G40-2T

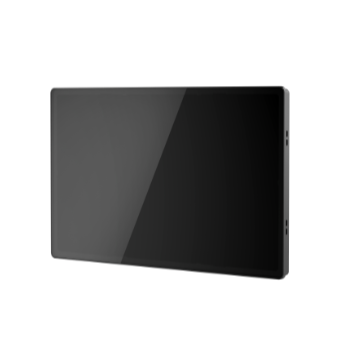

The VT3000 Series touch all-in-one machine uses Intel's 8th generation desktop-level CPU. It has an integrated design of the chassis and screen, and is equipped with a multi-point capacitive Touchscreen for accurate operation and sensitive use. It has multiple Gigabit ports, USB, Serial Port, etc., and supports 11-channel GPIO and other rich interfaces. It can be used in simple multi-Camera vision applications, providing more flexible choices for vision equipment.

Product introduction

Functional characteristics

Equipped with Intel's eighth-generation CPU, provides powerful computing Performance
Supports multiple GPIO functions, is easy to use
Supports multiple Gigabit network ports, supports high-speed and stable image transmission
Built-in USB Interface, easy for on-site deployment and maintenance
All-metal shell, durable, well protected
Rich Expansion Interface, can support extended mechanical hard drives, WIFI, etc.
Easy to install, Support VISAStandard

Ordering Model

MV-VT3700-128G40-2T

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-VT3700-128G40-2T

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-VT3700-128G40-2T

Model

Model	MV-VT3700-128G40-2T
Name	VT3000 all-in-one, I7- 8700T, 8GB +128G SSD +2T HDD;

Performance

Processor	Intel® CoreTM i7-8700T
Memory	8 GB
Storage	128G SSD and 2T HDD
Operating System	Windows 10, not activated

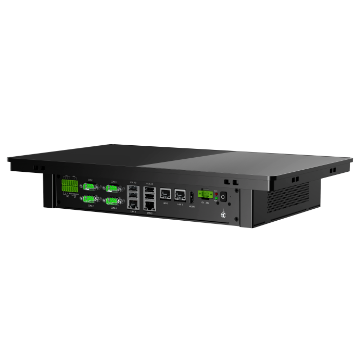

External Interfaces

Display Interface	1 × HDMI (1920 × 1080)
Digital I/O	Support for 3 digital isolated inputs Support 8-channel optocoupler isolated outputs
Network Interface	4 × Gigabit network port
USB Interface	4 × USB3.0
Serial Port	4-channel RS-232, Switchable to RS-485/RS-422

Electrical

Power Supply	24 VDC
Typical Power Consumption	120 W

Display

Screen size	15.6 inches
Resolution	1920 × 1080
Display area	344.16 mm × 193.59 mm
Backlight	LED
Backlight life	50000 hrs
Viewed angle	89°(R)/ 89°(L)/ 89°(B)/ 89°(T)
Contrast	1200:1
Brightness	500 cd/m2

Touchscreen

Touchscreen type	Multi-point capacitive Touchscreen
Multi-touch	Support 10-point touch under Windows
Touch count	35 million
Light transmittance	≥87%
Surface hardness § 66§Operating Temperature0~50°C, Storage Temperature-30~70°C	≥6 H

Mechanical

Dimensions	390 mm × 240 mm × 65.8 mm
Weight	4.8 kg
Temperature	Operating Temperature0~50°C, Storage Temperature-30~70°C
Humidity	20% ~ 80%RH No condensation
