Name: HIKROBOT DLS Series
Brand: HIKROBOT
SKU: MV-DLS300P-04
Availability: InStock

MV-3DWXQ1-SX6-14

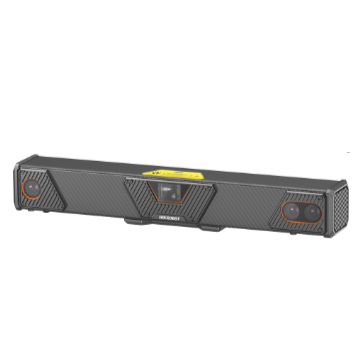

DLS SeriesCamera uses high-uniformity single-line laser with high-precision galvanometer scanning technology, combined with high-PerformanceOptical system, high-Performance processing chips, and high-strength materials. It can cope with many working conditions such as light absorption, high reflection, and environmental light interference, achieving high-precision, high-stability 3D imaging is widely used in workpiece grabbing and other applications.

Product introduction

Functional characteristics

Customized Optical system, excellent imaging quality
High uniformity laser, complete and delicate point clouds
Multin-core parallel processing architecture, high processing efficiency
RGB, depth map synchronized alignment, secondary development Convenient and fast
High-strength carbon fiber design, high stability
Large field of view design, suitable for long-distance applications

Ordering Model

MV-3DWXQ1-SX6-14

Dimensions

* Product data may cause Differences due to environmental and other factors. The company will not bear the consequences.

Ordering Model

MV-3DWXQ1-SX6-14

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

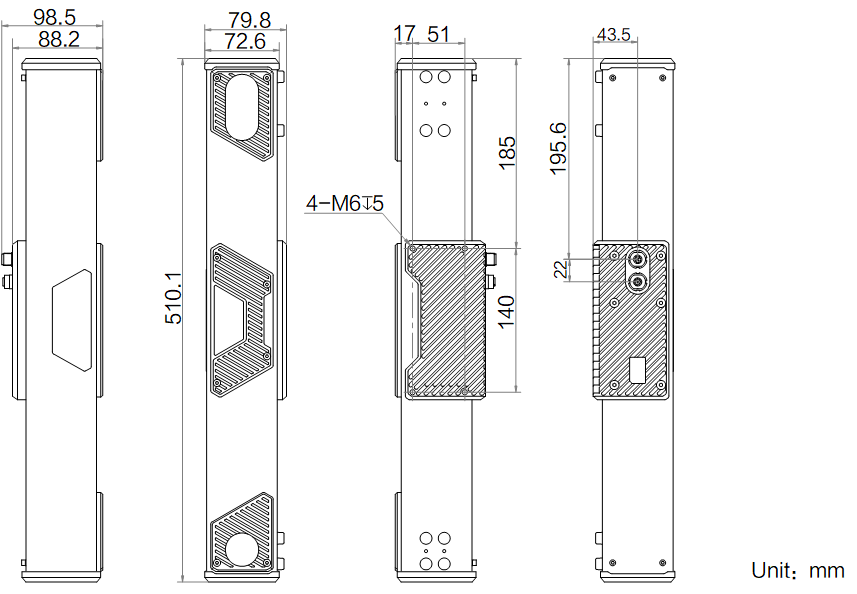

Dimensions

Detailed parameters

Ordering Model MV-3DWXQ1-SX6-14

Model

Model	MV-3DWXQ1-SX6-14
Name	Laser Galvanometer Stereoscopic Camera

Performance

Near Field of View	1360 mm × 1200 mm@1500 mm
Typical Field of View	2200 mm × 2000 mm@2500 mm
Far Field of View	3200 mm × 2800 mm@3500 mm
Clear Distance (CD)	1500 mm
Measurement Range (MR)	2000 mm
Z-Axis Repeatability	0.2 mm@2500 mm
VDI/VDE Accuracy	0.3 mm@2500 mm
Resolution	3968 × 3000@RGB Map<br/> 1920 × 1536@Depth map
Acquisition time	0.4 ~ 0.9 s
Plot delay time	0.9 ~ 1.6 s
Data Type	Original map (black and white + color), depth map,RGB-D map

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3-way optocoupler isolated outputs (Line 1/4/7)
Power Supply	24 VDC
Typical Power Consumption	16W@24 VDC

Mechanical

Dimensions	510.1 mm × 79.8 mm × 98.5 mm
Weight	About 1.68 kg
IP Rating	IP65
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH Non-condensing
