Name: HIKROBOT DLS Series
Brand: HIKROBOT
SKU: MV-DLS300P-04
Availability: InStock

MV-3DWXQ1-SX6-6

DLS SeriesCamera uses high-uniformity single-line laser with high-precision galvanometer scanning technology, combined with high-PerformanceOptical system, high-Performance processing chips, and high-strength materials. It can cope with many working conditions such as light absorption, high reflection, and environmental light interference, achieving high-precision, high-stability 3D imaging is widely used in workpiece grabbing and other applications.

Product introduction

Functional characteristics

Customized Optical system, excellent imaging quality
High uniformity laser, complete and delicate point clouds
Multin-core parallel processing architecture, high processing efficiency
RGB, depth map synchronized alignment, secondary development Convenient and fast
High-strength carbon fiber design, high stability

Ordering Model

MV-3DWXQ1-SX6-6

Dimensions

* The data involved in the product may cause differences due to environmental and other factors. The company will not bear the consequences.

Ordering Model

MV-3DWXQ1-SX6-6

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

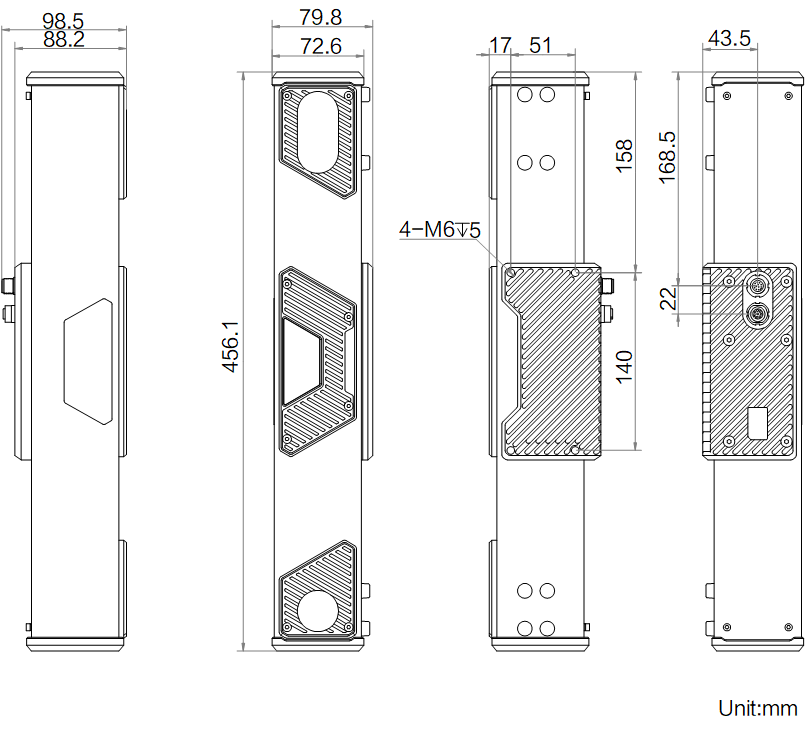

Dimensions

Detailed parameters

Ordering Model MV-3DWXQ1-SX6-6

Model

Model	MV-3DWXQ1-SX6-6

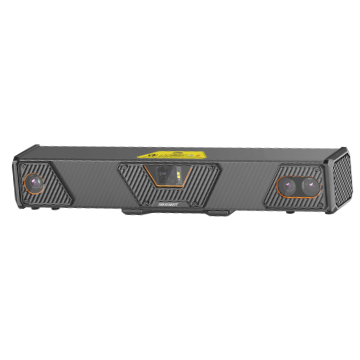

Name	Laser Galvanometer Stereoscopic Camera

Performance

Near Field of View	640 mm × 600 mm@1200 mm
Typical Field of View	1100 mm × 900 mm@1800 mm
Far Field of View	1220 mm × 1000 mm@2200 mm
Clear Distance (CD)	1200 mm
Measurement Range (MR)	1000 mm
Z-Axis Repeatability	0.08 mm@1800 mm
VDI/VDE Accuracy	0.15 mm@1800 mm
Resolution	3200 × 1944@RGB Map<br/> 1632 × 1264@Depth map
Acquisition time	0.4 ~ 0.9 s
Plot delay time	0.8 ~ 1.5 s
Data Type	Original map (black and white + color), depth map,RGB-D map

Laser Performance

Laser Safety Class	Class 2
Wavelength	638 nm

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3-way optocoupler isolated outputs (Line 1/4/7)
Power Supply	24 VDC
Typical Power Consumption	15 W@24 V DC

Mechanical

Dimensions	456.1 mm × 79.8 mm × 98.5 mm
Weight	About 1.5 kg
IP Rating	IP65
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH Non-condensing
