Name: HIKROBOT DLS Series
Brand: HIKROBOT
SKU: MV-DLS300P-04
Availability: InStock

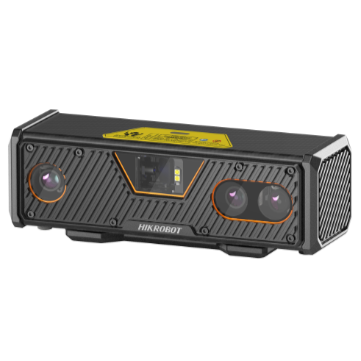

MV-3DWXQ1-SX6-3

DLS SeriesCamera uses high-uniformity single-line laser with high-precision galvanometer scanning technology, combined with high-PerformanceOptical system, high-Performance processing chips, and high-strength materials. It can cope with many working conditions such as light absorption, high reflection, and environmental light interference, achieving high-precision, high-stability 3D imaging is widely used in workpiece grabbing and other applications.

Product introduction

Functional characteristics

Customized Optical system, excellent imaging quality
High uniformity laser, complete and delicate point cloud
Multin-core parallel processing architecture, high processing efficiency
RGB, depth map synchronized alignment, secondary development Convenient and fast
Lightweight design, small size, high stability, flexible installation and use

Ordering Model

MV-3DWXQ1-SX6-3

Dimensions

* The data involved in the product may cause differences and due to environmental and other factors. The company will not bear the consequences.

Ordering Model

MV-3DWXQ1-SX6-3

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

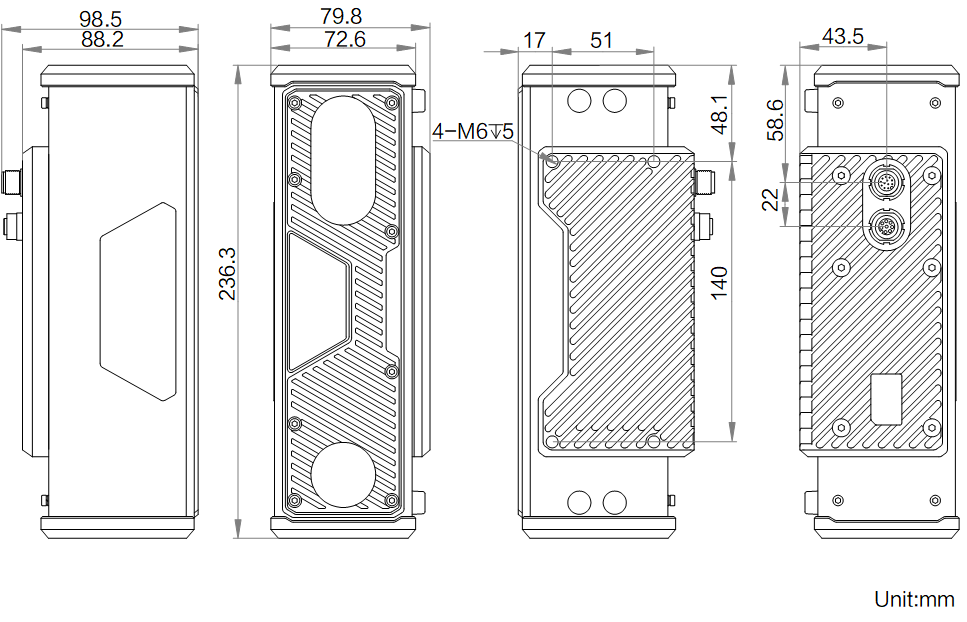

Dimensions

Detailed parameters

Ordering Model MV-3DWXQ1-SX6-3

Model

Model	MV-3DWXQ1-SX6-3
Name	Laser Galvanometer Stereoscopic Camera

Performance

Near Field of View	280 mm × 220 mm@400 mm
Typical Field of View	480 mm × 320 mm@600 mm
Far Field of View	620 mm × 440 mm@800 mm
Clear Distance (CD)	400 mm
Measurement Range (MR)	400 mm
Z-Axis Repeatability	0.03 mm@600 mm1
VDI/VDE Accuracy	0.05 mm@600 mm2
Resolution	3200 × 1944@RGB Map<br/> 1632 × 1080@Depth map
Acquisition time	0.4~0.9s
Plot delay time	0.8~1.5s
Data Type	Original map (black and white + color), depth map,RGB-D map

Laser Performance

Laser Safety Class	Class 2
Wavelength	450 nm

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3-way optocoupler isolated outputs (Line 1/4/7)
Power Supply	24 VDC
Typical Power Consumption	15 W@24 V DC

Mechanical

Dimensions	236.3 mm × 79.8 mm × 98.5 mm
Weight	About 1.3 kg
IP Rating	IP65
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH Non-condensing
