Name: HIKROBOT Express & Logistics Series
Brand: HIKROBOT
SKU: MV-DB300S-V
Availability: InStock

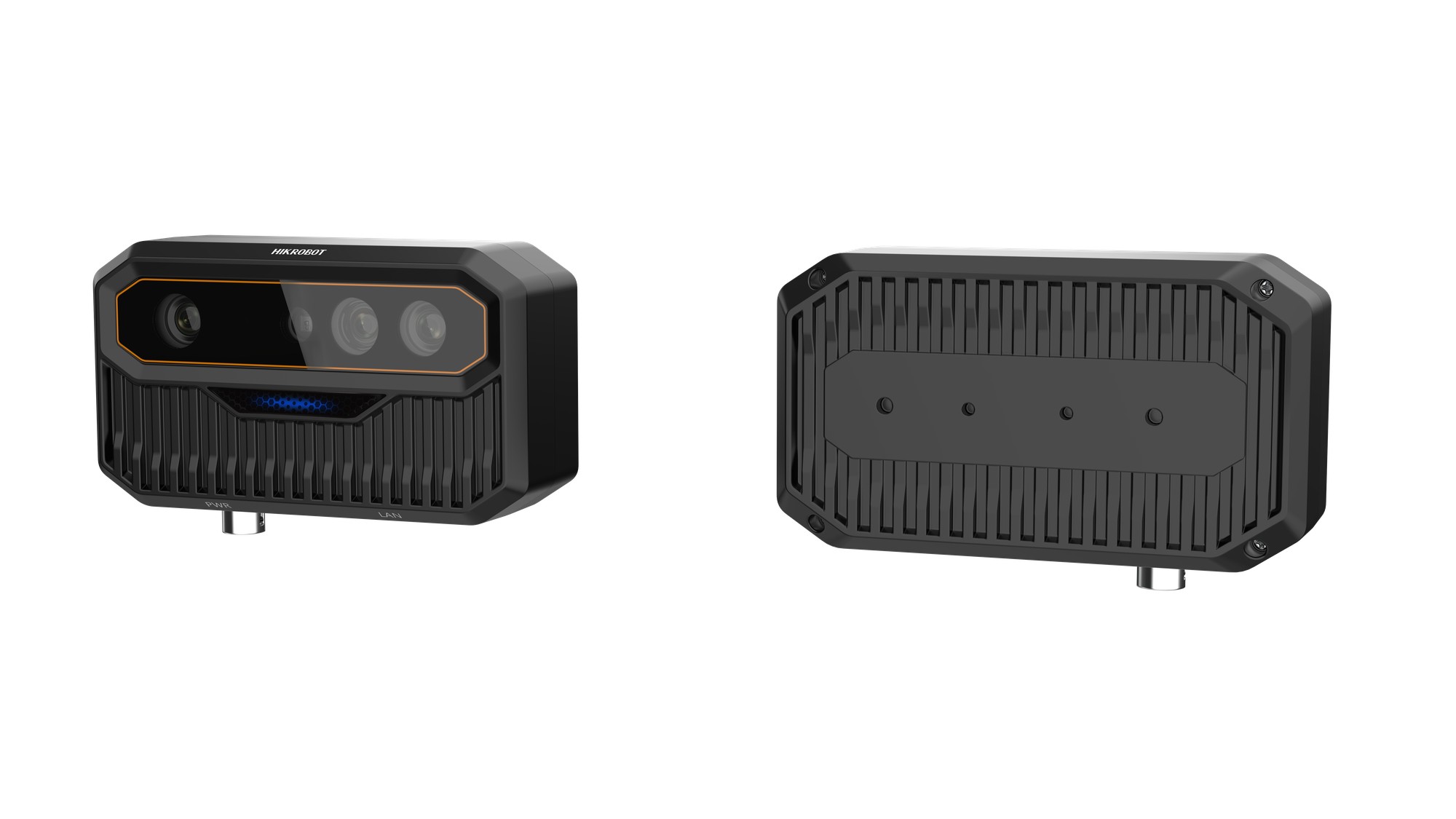

MV-DB300S-V

Adopt binocular stereo matching and linear laser technology to cover dynamic and static applications. The product is designed for the express Logistics industry and is especially suitable for application scenarios such as single piece separation, de-duplication and double removal, and volume measurement.

Product introduction

Functional characteristics

High PerformanceSensor is equipped with an energy-efficient Optical Module to stably and efficiently output millimeter-level precision depth maps
Adopt AI hard core and support custom deep learning algorithm models
Factory completes internal parameter calibration, provides multiple PlatformSDK, convenient and fast secondary development
Small size and flexible installation, meeting the needs of multiple scenarios
Equipped with narrowband filters, without fear of ambient light interference
Gigabit Network Transmission Interface, Stable and reliable links

Ordering Model

MV-DB300S-V

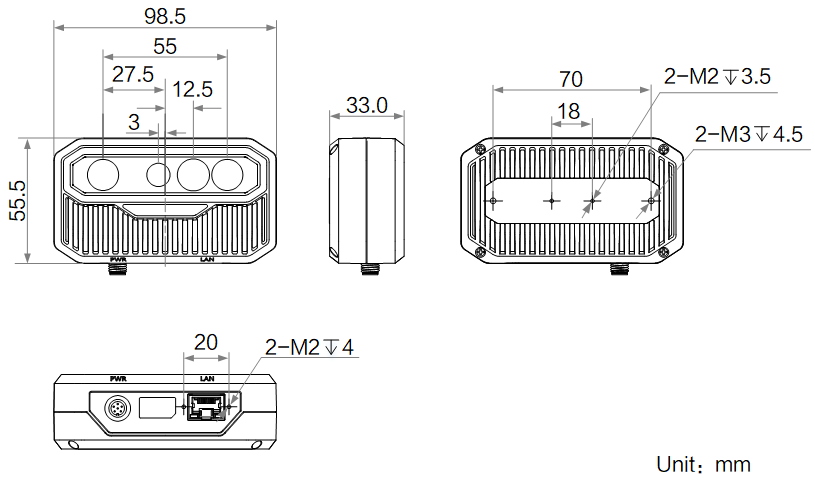

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences.

Ordering Model

MV-DB300S-V

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DB300S-V

Model

Model	MV-DB300S-V
Name	Single DOE Speckle Mechanical Light Stereoscopic Camera (Small Volume Measurement)

Performance

Near Field of View	325 mm × 320 mm
Far Field of View	1850 mm × 1600 mm
Clear Distance (CD)	300 mm
Measurement Range (MR)	1200 mm
Depth map detection accuracy	X,Y:5 mm@1 m;10 mm@2 m Z:10 mm@1 m;20 mm@2 m
Color map detection accuracy	X,Y:2.6 mm@1 m;5.5 mm@ 2 m
Scan Frame Rate	Depth map:Max 17 fps@1280 × 1024 RGB diagram:Max 17 fps@1536 × 1280 Simultaneous output of depth map +RGBD map:Max 14 fps@1280 × 1024
Data Type	Original map (black and white + color), corrected map (left and right), depth map
Laser Safety Class	Class 1

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	6-pin M8 Aviation Head Interface provides Power Supply and I/O,1 optocoupler isolation input (Line 0), 1 optocoupler isolation output (Line 1), 1 can be configured with I/O(Line2)
Power Supply	12 ~ 24 VDC
Typical Power Consumption	5.5 W@12 VDC

Mechanical

Dimensions	98.5 mm × 55.5 mm × 33 mm
Weight	about 200g
IP Rating	IP40
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH non-condensing
