Name: HIKROBOT Express & Logistics Series
Brand: HIKROBOT
SKU: MV-DB300S-V
Availability: InStock

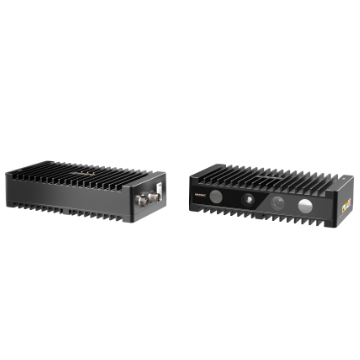

MV-DB500S-V

Adopt binocular stereo matching and linear laser technology to cover dynamic and static applications. The product is designed for the express Logistics industry and is especially suitable for application scenarios such as single piece separation, de-duplication and double removal, and volume measurement.

Product introduction

Functional characteristics

High PerformanceSensor is equipped with an energy-efficient Optical Module to stably output millimeter-level precision depth maps
Specially designed for volume measurement and combined with built-in deep learning algorithms to accurately obtain volume information
Factory completion of internal parameter calibration, providing multi-Platform SDK, convenient and fast secondary development
Supports synchronous alignment output of RGB and depth maps, reducing the burden on the upper computer system
Equipped with narrowband filter, with stronger anti-interference capabilities
IP65 protection level, Industrial-grade dust and water resistance

Ordering Model

MV-DB500S-V

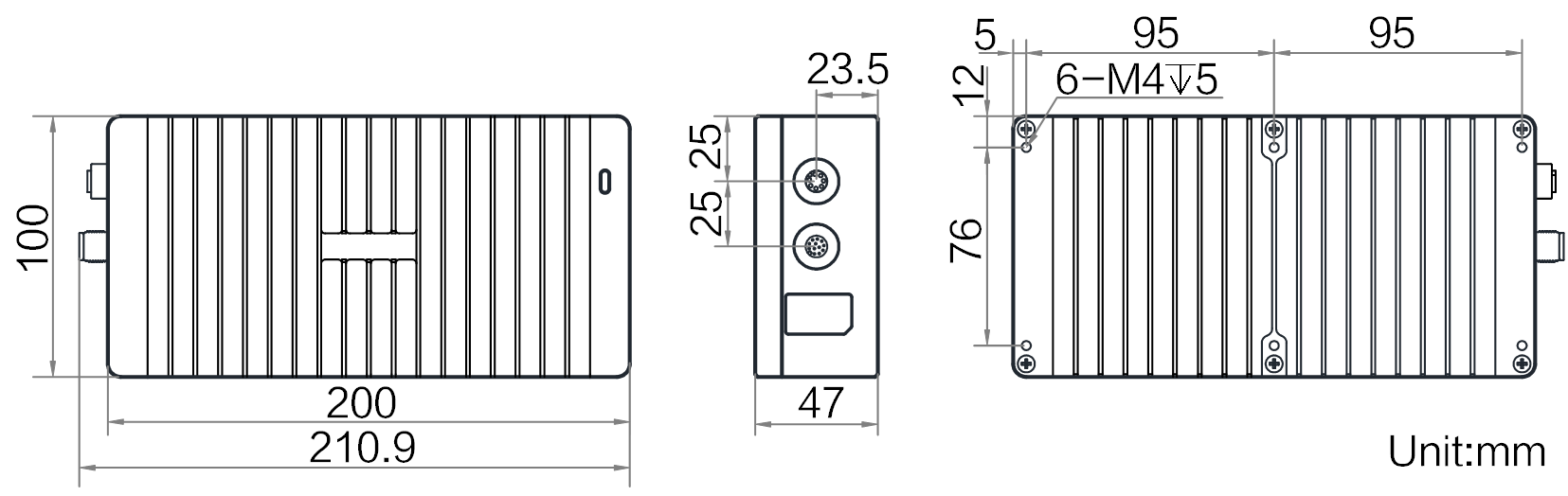

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-DB500S-V

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DB500S-V

Model

Model	MV-DB500S-V
Name	Single DOE Speckle Mechanical Stereoscopic Camera (Volume Measurement)

Performance

Near Field of View	580 mm × 470 mm
Far Field of View	2400 mm × 1800 mm
Clear Distance (CD)	500 mm
Measurement Range (MR)	1500 mm
Depth map detection accuracy	X,Y:5 mm@1 m;10 mm@2 m Z:5 mm@1 m;10 mm@2 m
Color map detection accuracy	X,Y:2.6 mm@1 m;5.5 mm@ 2 m
Scan Frame Rate	12 fps@ High-precision mode
Data Type	Original map (black and white + color), depth map, object volume information
Laser Safety Class	Class 1

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3-channel optocoupler isolation inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	12 ~ 24 VDC
Typical Power Consumption	9 W@24 VDC

Mechanical

Dimensions	200 mm × 47 mm × 100 mm
Weight	About 1 kg
IP Rating	IP65
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
