Name: HIKROBOT Express & Logistics Series
Brand: HIKROBOT
SKU: MV-DB300S-V
Availability: InStock

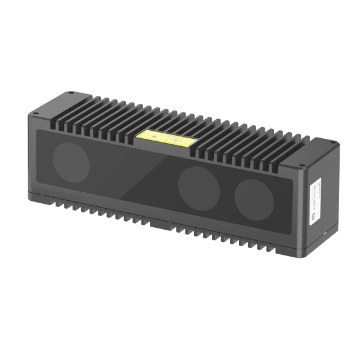

MV-DB500S-C

Adopt binocular stereo matching and linear laser technology to cover dynamic and static applications. The product is designed for the express Logistics industry and is especially suitable for application scenarios such as single piece separation, de-duplication and double removal, and volume measurement.

Product introduction

Functional characteristics

Built-in deep learning algorithms and 3D image processing algorithms, resulting in more accurate results
Large field of view range, suitable for scenes with limited Working Distance such as crossed bands and lower lines
High-energy-efficient Optical Module cooperates with precise exposure Synchronization, wide Dynamic Range, and more stable Performance
Equipped with narrowband filter, with stronger anti-interference ability
Factory internal reference calibration, single Camera system calibration can be completed with one click, convenient deployment
IP65 protection level, Industrial-grade dust and water resistance

Ordering Model

MV-DB500S-C

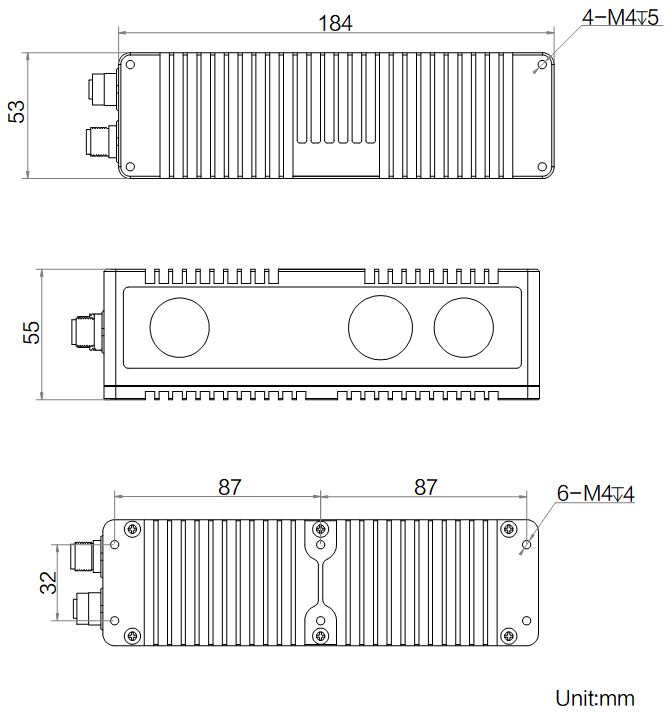

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-DB500S-C

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DB500S-C

Model

Model	MV-DB500S-C
Name	RGB-D Smart Stereoscopic Camera (EDP)

Performance

Near Field of View	580 mm × 470 mm
Far Field of View	2500 mm × 1800 mm
Clear Distance (CD)	500 mm
Measurement Range (MR)	1500 mm
Object detection range	700 mm Erection height:50 mm × 50 mm × 10 mm ~ 450 mm × 200 mm 1800 mm Erection height:100 mm × 100 mm × 10 mm ~ 1000 mm × 1000 mm × 700 mm
Depth map detection accuracy	Z:4mm@ 1m;8mm@ 2m
Scan Frame Rate	20 fps@EDP mode
Resolution	Depth:1408 × 1024 @ 30 fps RGB:1536 × 1280 @ 30 fps
Data Type	Original image (black and white + color), depth image,EDP test results
Laser Safety Class	Class 1

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-The pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), and 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	12~24 VDC
Typical Power Consumption	6.76W@24 VDC

Mechanical

Dimensions	184 mm × 55 mm × 53 mm
Weight	Approximately 700 g
IP Rating	IP65
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
