Name: HIKROBOT Express & Logistics Series
Brand: HIKROBOT
SKU: MV-DB300S-V
Availability: InStock

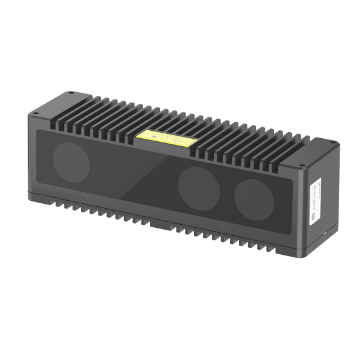

MV-DB700S-S

Adopt binocular stereo matching and linear laser technology to cover dynamic and static applications. The product is designed for the express Logistics industry and is especially suitable for application scenarios such as single piece separation, de-duplication and double removal, and volume measurement.

Product introduction

Functional characteristics

Built-in deep learning algorithms and 3D image processing algorithms for more accurate results
The energy-efficient Optical Module is combined with precise exposure synchronization, making Performance more stable and the Dynamic Range wider
The installation can also be carried out under height-limited scenes.
Supports synchronous alignment and output of RGB and depth maps, which is convenient for secondary development
Equipped with narrowband filters, with stronger anti-interference capabilities
Complete internal parameter calibration at the factory, and complete single Camera or multiple Camera system calibration with one click. Convenient and quick
IP65 protection rating, industrial-grade dust and water resistant

Ordering Model

MV-DB700S-S

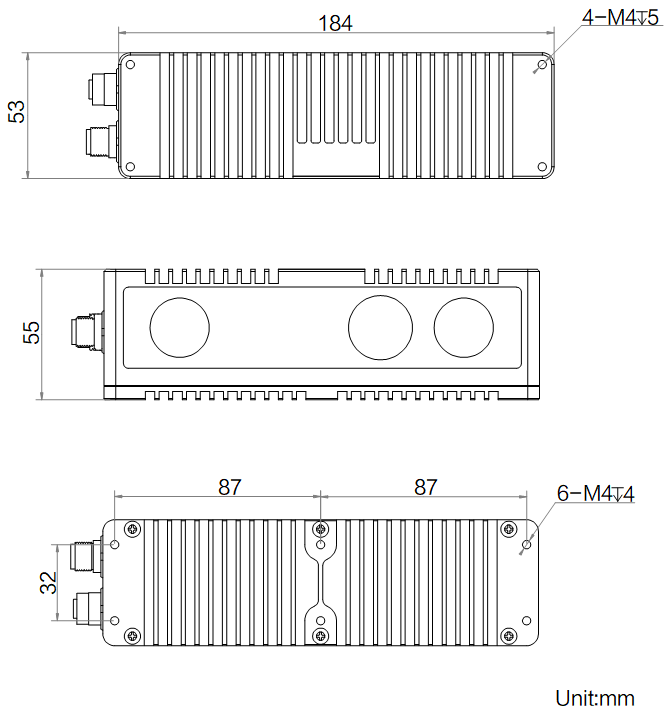

Dimensions

* The data involved in the product may cause differences due to environmental and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-DB700S-S

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DB700S-S

Model

Model	MV-DB700S-S
Name	RGB-D Smart Stereoscopic Camera (Low Clearance Single Piece Separation)

Performance

Near Field of View	590 mm × 470 mm
Far Field of View	2200 mm × 1500 mm
Clear Distance (CD)	300 mm
Measurement Range (MR)	700 mm
Object detection range	500 mm erection height: 50 mm × 50 mm × 10 mm ~ 450 mm × 450 mm × 200 mm
Depth map detection accuracy	Z:2.5 mm@0.5 m;5 mm@1 m
Scan Frame Rate	30 fps@ Single-piece separation mode
Resolution	Depth:1408 × 1024 @ 30 fps RGB:1536 × 1280 @ 30 fps
Data Type	Original map (black and white + color), depth map, object pose information
Laser Safety Class	Class 1

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolation inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	12~24 VDC
Typical Power Consumption	9W@24 VDC

Mechanical

Dimensions	184 mm × 55 mm × 53 mm
Weight	About 700 g
IP Rating	IP65
Temperature	Operating Temperature0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20%~85%RH Non-condensing
