Name: HIKROBOT Warehousing & Logistics Series
Brand: HIKROBOT
SKU: MV-DLS1300P
Availability: InStock

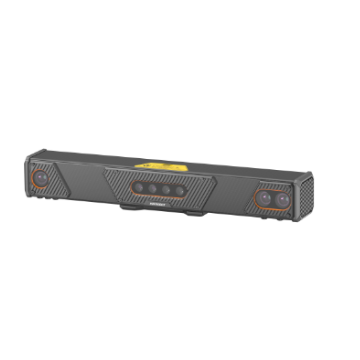

MV-DB1300A

Based on 3D vision +AI algorithm + robot control full-link technology, HIKROBOT has launched three 3D vision-guided robot unstacking solutions to achieve flexible, efficient and precise automated material unstacking operations.

Product introduction

Functional characteristics

Customized Optical system with built-in high-precision depth fusion algorithm, excellent imaging quality
Supports multiple exposure modes, equipped with narrowband filters, and has stronger environmental adaptability
RGB, depth map synchronous alignment, convenient and fast secondary development
High-strength carbon fiber design, IP65 protection level, high stability
Ultra-large field Depth of Field coverage, meeting the requirements of palletizing, Application scenarios such as bulk volume measurement

Ordering Model

MV-DB1300A

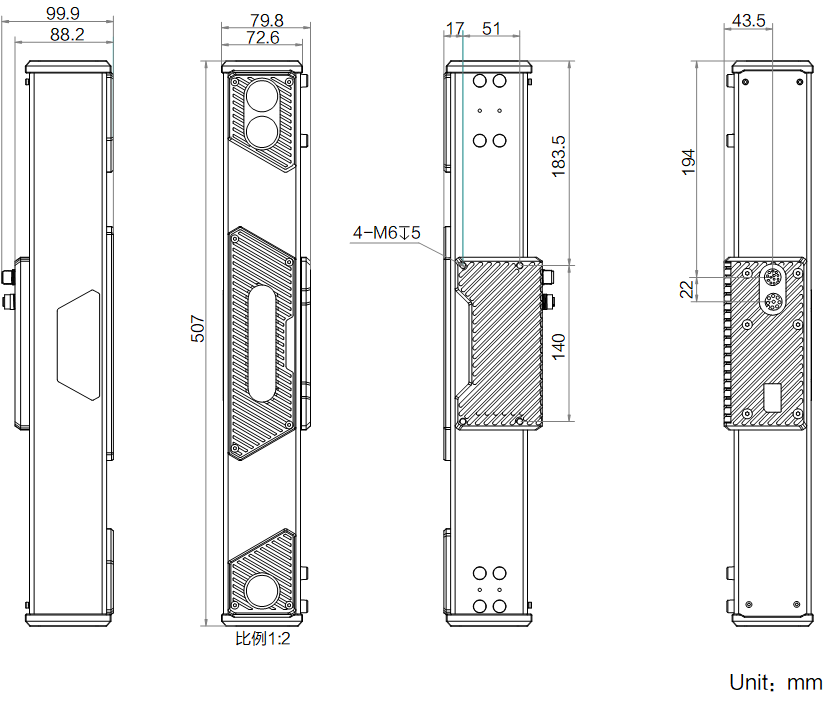

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-DB1300A

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DB1300A

Model

Model	MV-DB1300A
Name	Multi-DOE Speckle Smart Stereoscopic Camera

Performance

Near Field of View	870 mm × 860 mm@1100 mm
Typical Field of View	2000 mm × 1600 mm@2100 mm
Far Field of View	3340 mm× 2500 mm@3200 mm
Clear Distance (CD)	1100 mm
Measurement Range (MR)	2100 mm
Z-Axis Repeatability	1.5 mm@2100 mm
Resolution	3072 × 2048@RGB Map 1536 × 1024@depth map
Data Type	Original map (black and white + color), depth map,RGB-D map
Plot delay time	1.2 s ~ 1.5 s

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	24 VDC
Typical Power Consumption	10 W@24 VDC

Mechanical

Dimensions	507 mm × 79.8 mm × 99.9 mm
Weight	1.59 kg
IP Rating	IP65
Temperature	Operating Temperature0°C ~ 45°C, Storage Temperature-30°C ~ 80°C
Humidity	20%~85%RH No condensation
