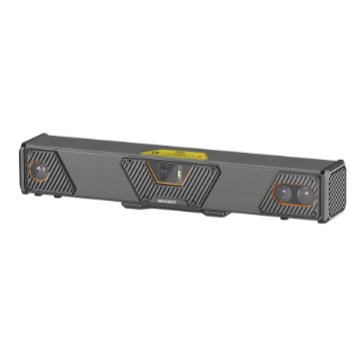

Name: HIKROBOT Warehousing & Logistics Series
Brand: HIKROBOT
SKU: MV-DLS1300P
Availability: InStock

MV-DLS1300P

Based on 3D vision +AI algorithm + robot control full-link technology, HIKROBOT has launched three 3D vision-guided robot unstacking solutions to achieve flexible, efficient and precise automated material unstacking operations.

Product introduction

Functional characteristics

Customized Optical system, excellent imaging quality
High uniformity laser, complete and delicate point clouds
Multin-core parallel processing architecture, high processing efficiency
RGB, depth map synchronized alignment, secondary development Convenient and fast
High-strength carbon fiber design, high stability
Large field of view design, suitable for long-distance applications

Ordering Model

MV-DLS1300P

Dimensions

* Product data may cause Differences due to environmental and other factors. The company will not bear the consequences.

Ordering Model

MV-DLS1300P

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DLS1300P

Model

Model	MV-DLS1300P
Name	Laser Galvanometer Stereoscopic Camera

Performance

Near Field of View	1360 mm × 1200 mm@1500 mm
Far Field of View	3200 mm × 2800 mm@3500 mm
Typical Field of View	2200 mm × 2000 mm@2500 mm
Clear Distance (CD)	1500 mm
Measurement Range (MR)	2000 mm
Resolution	3200 × 2400@RGB Map 1440 × 1152@Depth map
Z-Axis Repeatability	0.3 mm@2500 mm1
VDI/VDE accuracy	0.4 mm@2500 mm2
Acquisition time	0.4 ~ 0.9 s
Data Type	Original map (black and white + color), depth map,RGB-D map
Print delay time	0.9 ~ 1.6 s

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	24 VDC
Typical Power Consumption	16W@24 VDC

Mechanical

Dimensions	456.1 mm × 79.8 mm × 98.5 mm
Weight	Approximately 1.5 kg
IP Rating	IP65
Temperature	Operating Temperature-10 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
