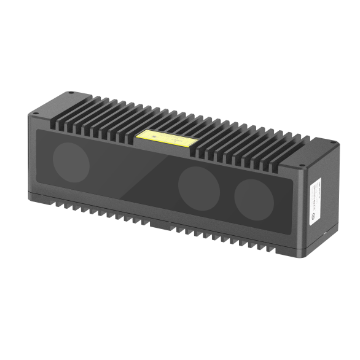

Name: HIKROBOT DB Series Perception Cameras
Brand: HIKROBOT
SKU: MV-DB12SME
Availability: InStock

MV-DB12SME

DB Series Perception Cameras uses active binocular stereo imaging technology, combined with a color camera to output high-frame rate RGB-D images, stably output millimeter-level precision depth maps, and built-in deep learning algorithms.

Product introduction

Functional characteristics

High PerformanceSensor is equipped with an energy-efficient Optical Module to stably output millimeter-level precision depth maps
Adopt AI hard core and support custom deep learning algorithm models
Support users to train deep learning models themselves through the AI training Platform, and import and use
Factory complete internal parameter calibration, provide multiple Platform SDK, convenient and fast secondary development
Support synchronous alignment output of RGB and depth maps, reducing the burden on the upper computer system
Equipped with narrowband filter, Stronger anti-interference ability
IP65 protection level, industrial-grade dust and waterproof

Ordering Model

MV-DB12SME

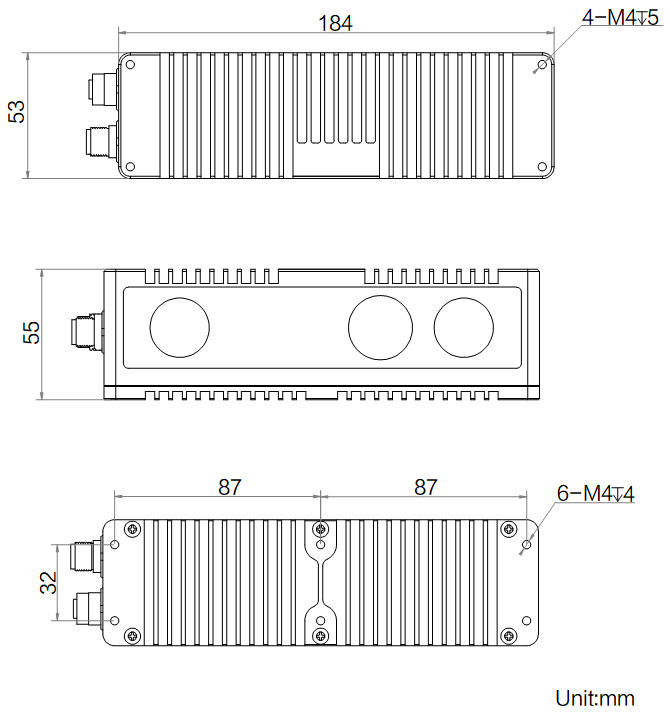

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-DB12SME

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DB12SME

Model

Model	MV-DB12SME
Name	RGBD Smart Stereoscopic Camera (MV-DB12 SME)

Performance

Near Field of View	580 mm × 480 mm
Far Field of View	2400 mm × 1800 mm
Clear Distance (CD)	500 mm
Measurement Range (MR)	1500 mm
Depth map detection accuracy	Z:4mm@ 1m;8mm@ 2m
Scan Frame Rate	RGB-Depth synchronous output: 20 fps@1536 × 1280 30 fps@768 × 640
Data Type	Original map (black and white + color), depth map,RGB-D map, instance segmentation result
Laser Safety Class	Class 1

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	12 ~ 24 VDC
Typical Power Consumption	6.76 W@24 VDC

Mechanical

Dimensions	184 mm × 55 mm × 53 mm
Weight	Approximately 700 g
IP Rating	IP65
Temperature	Operating Temperature 0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
