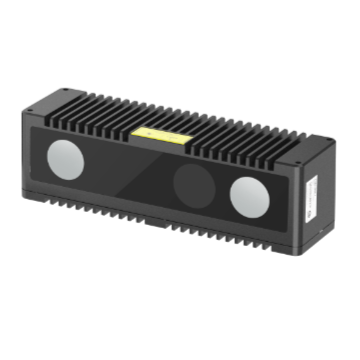

Name: HIKROBOT DB Series Perception Cameras
Brand: HIKROBOT
SKU: MV-DB12SME
Availability: InStock

MV-DB12UNE

DB Series Perception Cameras uses active binocular stereo imaging technology, combined with a color camera to output high-frame rate RGB-D images, stably output millimeter-level precision depth maps, and built-in deep learning algorithms.

Product introduction

Functional characteristics

High PerformanceSensor is equipped with an energy-efficient Optical Module to stably output millimeter-level precision depth maps
Supports AI training platforms to train deep learning models to import and use
Factory completes internal parameter calibration, provides multiple Platform SDK, secondary development is convenient and fast
Supports synchronous alignment of RGB and depth maps, reducing the burden on the upper computer system
Equipped with narrowband filter, with stronger anti-interference capabilities
IP65 protection level, Industrial-grade dust and water resistance

Ordering Model

MV-DB12UNE

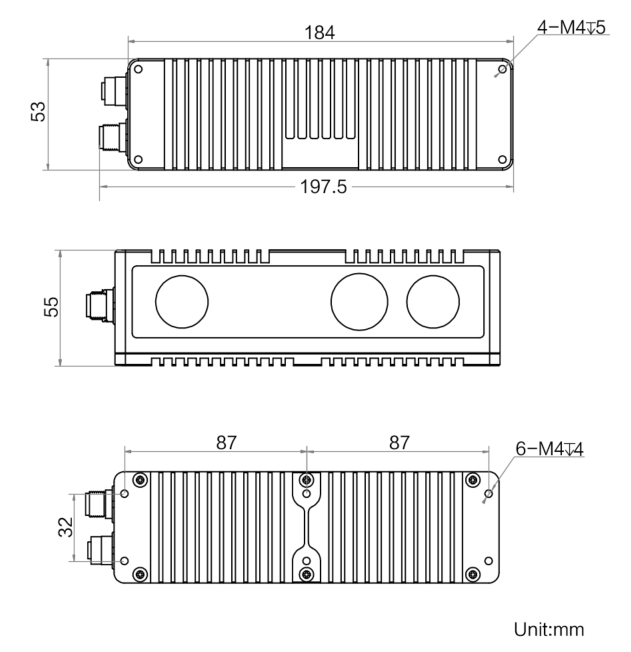

Dimensions

* The data involved in the product may cause differences due to environmental factors and other factors, and the company will not bear the consequences arising therefrom.

Ordering Model

MV-DB12UNE

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Dimensions

Detailed parameters

Ordering Model MV-DB12UNE

Model

Model	MV-DB12UNE
Name	Large Field of View/Close Range/Mesh Spot Smart Stereoscopic Camera

Performance

Near Field of View	590 mm × 470 mm
Far Field of View	2200 mm × 1500 mm
Clear Distance (CD)	300 mm
Measurement Range (MR)	700 mm
Depth map detection accuracy	Z:4mm@500mm;8mm@1000mm
Scan Frame Rate	RGB-Depth synchronous output: 20 fps@1536 × 1280 30 fps@768 × 640
Data Type	Original map (black and white + color), depth map,RGB-D map, instance segmentation result
Laser Safety Class	Class 1

Electrical

Data Interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	12 ~ 24 VDC
Typical Power Consumption	6.76 W@24 VDC

Mechanical

Dimensions	184 mm × 55 mm × 53 mm
Weight	Approximately 700 g
IP Rating	IP65
Temperature	Operating Temperature 0 °C ~ 45 °C, Storage Temperature-30 °C ~ 80 °C
Humidity	20% ~ 85%RH No condensation
