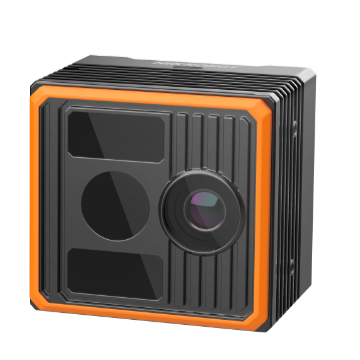

Name: HIKROBOT DT Series Perception Cameras
Brand: HIKROBOT
SKU: MV-DT04WFE
Availability: InStock

Product introduction

Functional characteristics

Using time-of-flight technology, high depth map integrity, good real-time performance
Multi-VCSEL has strong energy, strong ability to resist ambient light, and stable imaging
Working Distance, large Depth of Field
IP67 High protection level, wide application range
Factory complete internal reference calibration, multi-form Platform SDK, convenient and fast secondary development

Ordering Model

MV-DT04SFE

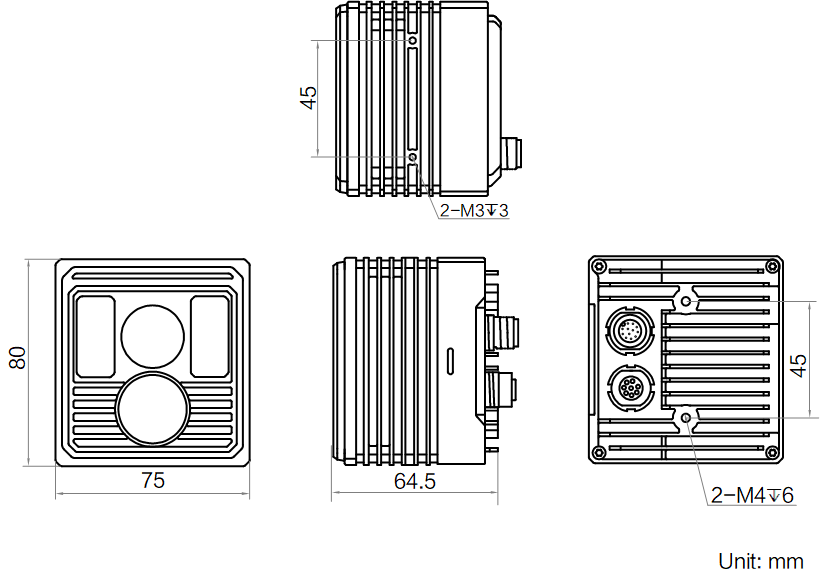

Dimensions

* Product data involved in the product may cause Differences due to environmental factors, and the company will not bear the consequences.

MV-DT04SFE

is supplied by an authorized agent from the original factory of Chuanghua Research, supporting prototype testing and batch procurement.

Detailed parameters

Ordering Model MV-DT04SFE

Model

Model	MV-DT04SFE
Name	TOF Smart Stereoscopic Camera

Performance

Working Range	0.5 m ~ 5 m
Field of View	Depth Map Field of View:68° x 51° RGB Chart Field of View:72° x 61°
Z-Axis Repeatability	±(10+0.5%depth1)mm
Measurement accuracy	10 mm @ 2 m;15 mm @ 3.5 m
Resolution	1536 × 1280@RGB Chart 640 × 480@Depth map
Max. Frame Rate	30 fps
Data Type	Original map, intensity map, depth map
Plot delay time	38 ms2
Typical field of view	2400 mm × 1800 mm @ 2 m

Electrical

Data Interface	Gigabit Ethernet(1000 Mbit/s)
Digital I/O	12-pin M12Interface provides Power Supply and I/O,3 optocoupler isolated inputs (Line 0/3/6), 3 optocoupler isolated outputs (Line 1/4/7)
Power Supply	24 VDC
Typical Power Consumption	10 W @ 24 VDC

Mechanical

Dimensions	80 mm ×75 mm ×64.5 mm
Weight	Approximately 0.49 kg
IP Rating	IP67
Temperature	Operating Temperature 0 ~ 45°C, Storage Temperature-30 ~ 80°C
Humidity	20% ~ 85%RH No condensation
